NSN 3456-00-490-1267 LR79 SINGLE ROLL, LR79SINGLEROLL, MILE17624
Product Details | ROLLER TUBE EXPANDER ROLL
3456-00-490-1267 A circular roll of steel either cylindrical or with variable diameters and shape, to insert in the cage of a roller tube expander to shape the expansion or flare of tubes.
Part Alternates: LR79 SINGLE ROLL, LR79SINGLEROLL, MILE17624, MIL-E-17624, 1385500 PC LR79, 1385500PCLR79, LR79, 3456-00-490-1267, 00-490-1267, 3456004901267, 004901267
Metalworking Machinery | Cutting and Forming Tools for Secondary Metalworking Machinery
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 34 | 19 SEP 1969 | 00-490-1267 | 15849 ( ROLL, ROLLER TUBE EXPANDER ) |
Drawings & Photos | NSN 3456-00-490-1267
Cross Reference | NSN 3456-00-490-1267
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3456-00-490-1267
Technical Data | NSN 3456-00-490-1267
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

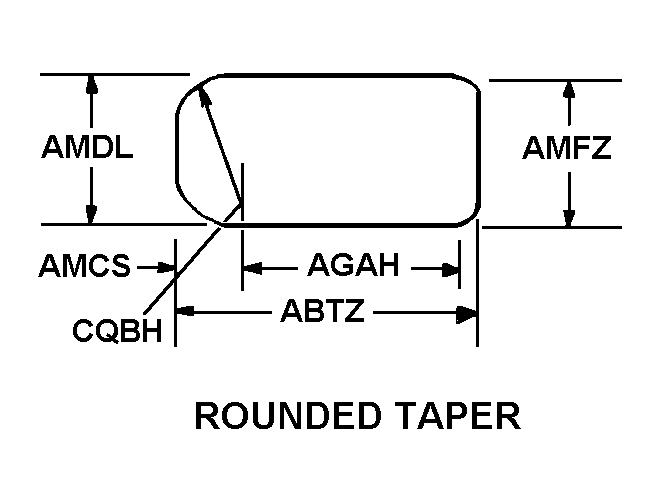

| STYLE DESIGNATOR | A1 ROUND TAPER |
| OVERALL LENGTH | 2.184 INCHES MINIMUM AND 2.187 INCHES MAXIMUM |
| MAIN BODY OVERALL LENGTH | 1.875 INCHES NOMINAL |
| FIRST END DIAMETER | 0.288 INCHES MINIMUM AND 0.291 INCHES MAXIMUM |
| SECOND END DIAMETER | 0.259 INCHES MINIMUM AND 0.262 INCHES MAXIMUM |
| FIRST END TAPER LENGTH | 0.250 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | II TYPE |
| DEPARTURE FROM CITED DOCUMENT | AS MODIFIED BY PAR. 3.3.3 ROLLS SINGLE ROLL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-E-17624 |
Restrictions/Controls & Freight Information | NSN 3456-00-490-1267
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3456-00-490-1267
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
