NSN 3460-00-216-6123 B74.13, B74.2 TY A13, B74.2 TYPE 1 1/8 X 1 1/8 X 1/4
Product Details | ABRASIVE WHEEL
3460-00-216-6123 A rigid piece of abrasive with or without mounting facilities. Items having such mounting facilities as a fixed spindle, a threaded insert, or an arbor hole are designed for mounting on a grinding machine, tool chuck or mandrel. Items without mounting facilities are designed to be secured in a wheel holder by means of spring clamps.20534600024Machine Tool accessories51300024Hand Tools, Power Driven53450026Disks and Stones, Abrasive65200043Dental Instruments, Equipment, and Supplies65400047Ophthalmic Instruments, Equipment, and Supplies
Part Alternates: B74.13, B74.2 TY A13, B74.2 TYPE 1 1/8 X 1 1/8 X 1/4, B7413, B742TYA13, B742TYPE118X118X14, MILW17663, MIL-W-17663, 3S144115, 3S1441-15, B7.1, B71, 3460-00-216-6123, 00-216-6123, 3460002166123, 002166123
Metalworking Machinery | Machine Tool accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 34 | 02 MAY 1973 | 00-216-6123 | 02613 ( WHEEL, ABRASIVE ) |

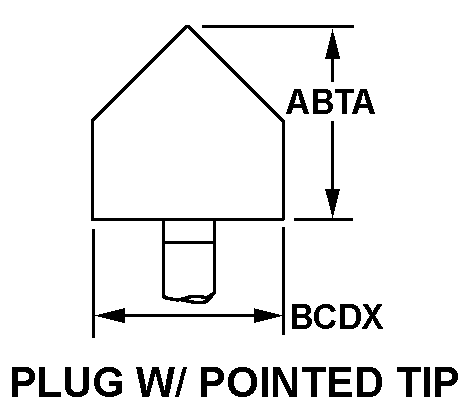

Drawings & Photos | NSN 3460-00-216-6123
Demand History | NSN 3460-00-216-6123
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3460-00-216-6123 | 2018-07-204 | 277 | DIBBS |
| 3460-00-216-6123 | 2018-07-192 | 1 | DIBBS |
| 3460-00-216-6123 | 2018-07-191 | 277 | DIBBS |
Cross Reference | NSN 3460-00-216-6123
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3S1441-15 | 03481 | BFGOODRICH CO THE AEROSPACE DIV |
| B7.1 | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| B74.13 | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| B74.2 TY A13 | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| B74.2 TYPE 1 1/8 X 1 1/8 X 1/4 | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| MIL-W-17663 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3460-00-216-6123
Technical Data | NSN 3460-00-216-6123
| Characteristic | Specifications |
|---|---|
| ABRASIVE MATERIAL | ALUMINUM OXIDE |
| SCREEN GRIT SIZE DESIGNATOR | 60 |
| USAGE DESIGN | METAL WORKING |
| WHEEL STYLE | 116 A13 |
| OVERALL THICKNESS | 1.125 INCHES NOMINAL |
| WHEEL DIAMETER | 1.125 INCHES NOMINAL |
| MOUNTING METHOD | SPINDLE |
| SPINDLE DIAMETER | 0.250 INCHES NOMINAL |
| SPINDLE LENGTH | 1.500 INCHES NOMINAL |
| BINDER MATERIAL | RESINOIDS |
| ABRASIVE BOND GRADE DESIGNATION | P MEDIUM |
| MAXIMUM SPEED RATING IN RPM | NOT RATED |
| SPECIFICATION/STANDARD DATA | 80204-B74.2 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 3460-00-216-6123
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 001020 | ABRASIVES:CRUDE OR LUMP |
| Less than car load rating | ||
| Less than truck load rating | T | 55.0 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3460-00-216-6123
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z EA : Each |
