NSN 3460-01-301-4629 49943300, 49-94-3300, 01-301-4629
Product Details | ABRASIVE WHEEL
3460-01-301-4629 A rigid piece of abrasive with or without mounting facilities. Items having such mounting facilities as a fixed spindle, a threaded insert, or an arbor hole are designed for mounting on a grinding machine, tool chuck or mandrel. Items without mounting facilities are designed to be secured in a wheel holder by means of spring clamps.20534600024Machine Tool accessories51300024Hand Tools, Power Driven53450026Disks and Stones, Abrasive65200043Dental Instruments, Equipment, and Supplies65400047Ophthalmic Instruments, Equipment, and Supplies
Part Alternates: 49943300, 49-94-3300, 3460-01-301-4629, 01-301-4629, 3460013014629, 013014629
Metalworking Machinery | Machine Tool accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 34 | 29 MAY 1989 | 01-301-4629 | 02613 ( WHEEL, ABRASIVE ) |
Drawings & Photos | NSN 3460-01-301-4629
Cross Reference | NSN 3460-01-301-4629
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 49-94-3300 | 40817 | MILWAUKEE ELECTRIC TOOL CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3460-01-301-4629
Technical Data | NSN 3460-01-301-4629
| Characteristic | Specifications |
|---|---|
| ABRASIVE MATERIAL | ALUMINUM OXIDE |
| SCREEN GRIT SIZE DESIGNATOR | 24 |
| USAGE DESIGN | AGGREGATE, HARD WORKING |
| WHEEL STYLE | 17 DEPRESSED CENTER |
| OVERALL THICKNESS | 0.250 INCHES NOMINAL |
| HOLE THICKNESS | 4.500 INCHES NOMINAL |
| MOUNTING METHOD | ARBOR HOLE |

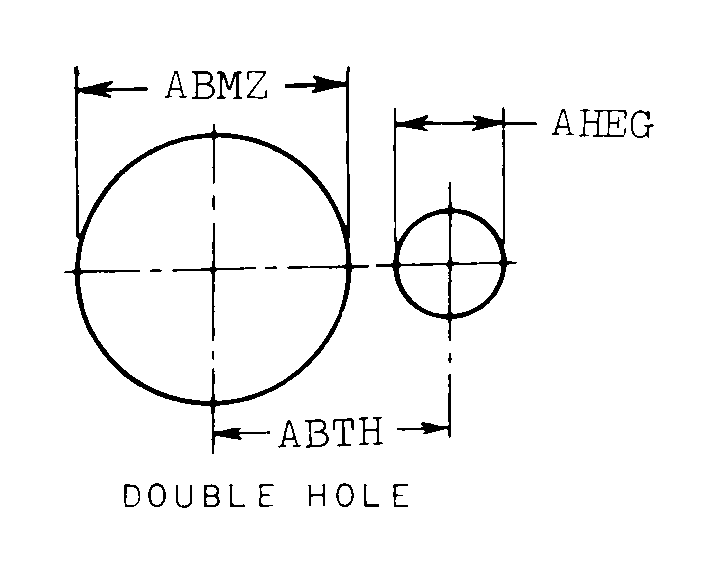

| MOUNTING OPENING SHAPE STYLE | 5 DOUBLE HOLE |
| DIAMETER | 0.875 INCHES NOMINAL |
| MAXIMUM SPEED RATING IN RPM | 12500.0 |
| SPECIAL FEATURES | GRINDING WITH DEPRESSED CENTER HUB,REINFORCED TYPE 27 |
Restrictions/Controls & Freight Information | NSN 3460-01-301-4629
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Hazardous Control Code: | H1 | Hazard Characteristics Not Yet Determined * HAZ CHAR NOT DETERMINED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
