NSN 3460-01-335-7681 7241075, 724107-5, 01-335-7681
Product Details | ABRASIVE WHEEL
3460-01-335-7681 A rigid piece of abrasive with or without mounting facilities. Items having such mounting facilities as a fixed spindle, a threaded insert, or an arbor hole are designed for mounting on a grinding machine, tool chuck or mandrel. Items without mounting facilities are designed to be secured in a wheel holder by means of spring clamps.20534600024Machine Tool accessories51300024Hand Tools, Power Driven53450026Disks and Stones, Abrasive65200043Dental Instruments, Equipment, and Supplies65400047Ophthalmic Instruments, Equipment, and Supplies
Part Alternates: 7241075, 724107-5, 3460-01-335-7681, 01-335-7681, 3460013357681, 013357681
Metalworking Machinery | Machine Tool accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 34 | 13 MAR 1991 | 01-335-7681 | 02613 ( WHEEL, ABRASIVE ) |
Drawings & Photos | NSN 3460-01-335-7681
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3460-01-335-7681
Technical Data | NSN 3460-01-335-7681
| Characteristic | Specifications |
|---|---|
| SCREEN GRIT SIZE DESIGNATOR | 36 |

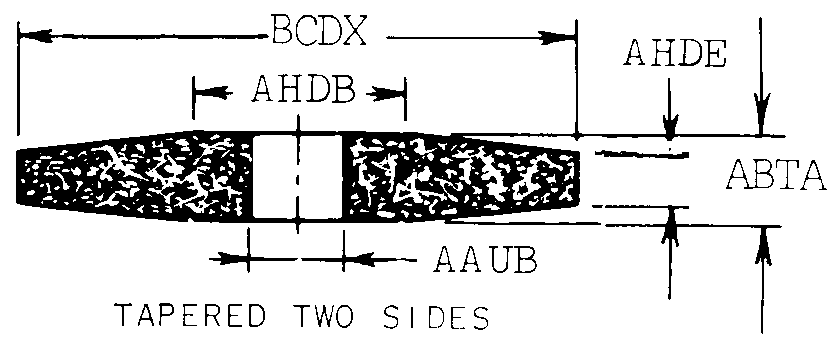

| WHEEL STYLE | 10 TAPERED TWO SIDES |
| HOLE DIAMETER | 0.062 INCHES NOMINAL |
| OVERALL THICKNESS | 0.625 INCHES NOMINAL |
| WHEEL DIAMETER | 4.000 INCHES NOMINAL |
| MOUNTING METHOD | ARBOR HOLE |
| MANUFACTURERS CODE | 1HB90 |
| DESIGN CONTROL REFERENCE | 724107-5 |
Restrictions/Controls & Freight Information | NSN 3460-01-335-7681
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 001020 | ABRASIVES:CRUDE OR LUMP |
| Less than car load rating | ||
| Less than truck load rating | T | 55.0 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | CH | Defense Supply Center Richmond Richmond, VA 23297 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3460-01-335-7681
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
