NSN 3810-00-542-4982 00-542-4982, 005424982
Product Details | TRUCK MOUNTED CRANE-SHOVEL
3810-00-542-4982 A crane-shovel complete with a crane boom and/or shovel attachments mounted on a truck chassis. Excludes CRANE-SHOVEL, WHEEL MOUNTED.
Part Alternates: 3810-00-542-4982, 00-542-4982, 3810005424982, 005424982
Construction, Mining, Excavating, and Highway Maintenance Equipment | Cranes and Crane-Shovels
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | 01 JAN 1963 | 00-542-4982 | 16500 ( CRANE-SHOVEL, TRUCK MOUNTED ) |
Drawings & Photos | NSN 3810-00-542-4982
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3810-00-542-4982
Related Products | NSN 3810-00-542-4982
Technical Data | NSN 3810-00-542-4982
| Characteristic | Specifications |
|---|---|
| MAXIMUM LIFTING CAPACITY | 20.000 TONS |
| BOOM LENGTH AT WHICH LIFTING CAPACITY IS RATED | 30.000 FEET NOMINAL |
| BOOM RADIUS AT WHICH LIFTING CAPACITY IS RATED | 10.000 FEET NOMINAL |
| OUTRIGGER POSITION AT WHICH LIFTING CAPACITY IS RATED | SET |
| BACKHOE MAXIMUM CAPACITY | 0.750 CUBIC YARDS |
| SHOVEL MAXIMUM CAPACITY | 0.750 CUBIC YARDS |
| OPERATING POWER TYPE | MECHANICAL |
| CRANE ENGINE TYPE | GASOLINE |
| QUANTITY | 1 |
| MANUFACTURER NAME | CONTINENTAL MOTORS CORP |
| MANUFACTURER IDENTIFYING NUMBER | MODEL NO. BS-415 |
| PRIME MOVER TYPE | GASOLINE ENGINE |
| ENGINE QUANTITY | 1 |
| ENGINE MANUFACTURER NAME | CONTINENTAL MOTORS CORP |
| ENGINE MANUFACTURER IDENTIFYING NUMBER | MODEL NO. SS-6749 |
| DRUM QUANTITY | 2 |
| BOOM OVERALL LENGTH | 30.000 FEET NOMINAL |
| BOOM DESIGN | NONTELESCOPING |
| BOOM MAXIMUM ANGLE IN DEG | 85.0 |
| BOOM CONTINUOUS ROTATION FEATURE | NOT INCLUDED |
| BOOM MAXIMUM ROTATION IN DEG | 360.0 |

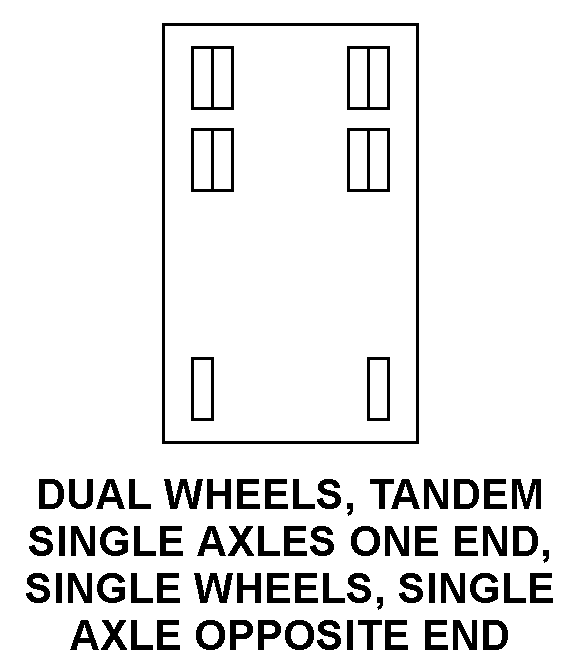

| WHEEL ARRANGEMENT STYLE | 26 DUAL WHEELS, TANDEM SINGLE AXLES ONE END, SINGLE WHEELS, SINGLE AXLE OPPOSITE END |
| REAR DRIVE WHEEL QUANTITY | 4 |
| FRONT DRIVE WHEEL QUANTITY | 2 |
| STEERABLE WHEEL QUANTITY | 2 |
| SHOVEL ATTACHMENT | NOT INCLUDED |
| BACKHOE | NOT INCLUDED |
| OUTRIGGERS | INCLUDED |
| OPERATION METHOD | MANUAL |
| PILE DRIVER | NOT INCLUDED |
| CRANE OPERATOR CAB | INCLUDED |
| FURNISHED ITEMS AND QUANTITY | BLOCK,TACKLE,20 TON 1 |
| SPECIAL FEATURES | A. AIR TRANSPORTABLE |
| NONDEFINITIVE SPEC/STD DATA | A TYPE AND 1 CLASS AND 20 SIZE |
Restrictions/Controls & Freight Information | NSN 3810-00-542-4982
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 118900 | CRANES/DERRICKS |
| Less than car load rating | F | 150 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3810-00-542-4982
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | K | Tactical and Support Vehicles, Combat and Automotive Materiel |
| Appropriation and Budget Activity | Q | Other Support Equipment |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | I | Construction Equipment |
| Weapons Systems/End Item or Homogeneous Group | IF | Cranes, 20 to 25 Ton |
| Accounting Requirements Code | N | Nonexpendable item. An item of Army property coded with an ARC of?N?in the AMDF. Nonexpendable items require property book accountability after issue from the stock record account. Commercial and fabricated items similar to items coded ?N? in the AMDF are considered nonexpendable items. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Acquisition Advice Codes | B | INVENTORY CONTROL POINT (ICP)-REGULATED (Service/Agency use only.) # Issue, transfer, or shipment is controlled by the ICP. 1. The use or stockage of the item requires release authority based on prior or concurrent justification. 2. Requisitions will be submitted in accordance with Agency/Service requisitioning procedure. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | PD | Regulated items, item manager controlled. |
| Budget Code | V | 8257X3080:Vehicular Equip (REMS) Vehicle Items and centrally funded, procured, and managed replenishment spares (ERRC XD-1, XD-2) |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | B | INVENTORY CONTROL POINT (ICP)-REGULATED (Service/Agency use only.) # Issue, transfer, or shipment is controlled by the ICP. 1. The use or stockage of the item requires release authority based on prior or concurrent justification. 2. Requisitions will be submitted in accordance with Agency/Service requisitioning procedure. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
