NSN 3810-00-620-5242 MILC10466TYPEACLASS1SIZE12 1-2T, MILC10466TYPEACLASS1SIZE1212T, MILSTD179
Product Details | TRUCK MOUNTED CRANE-SHOVEL
3810-00-620-5242 A crane-shovel complete with a crane boom and/or shovel attachments mounted on a truck chassis. Excludes CRANE-SHOVEL, WHEEL MOUNTED.
Part Alternates: MILC10466TYPEACLASS1SIZE12 1-2T, MILC10466TYPEACLASS1SIZE1212T, MILSTD179, 3810-00-620-5242, 00-620-5242, 3810006205242, 006205242
Construction, Mining, Excavating, and Highway Maintenance Equipment | Cranes and Crane-Shovels
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | 01 JAN 1963 | 00-620-5242 | 16500 ( CRANE-SHOVEL, TRUCK MOUNTED ) |
Drawings & Photos | NSN 3810-00-620-5242
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3810-00-620-5242
Related Products | NSN 3810-00-620-5242
Technical Data | NSN 3810-00-620-5242
| Characteristic | Specifications |
|---|---|
| MAXIMUM LIFTING CAPACITY | 12.500 TONS |
| BOOM LENGTH AT WHICH LIFTING CAPACITY IS RATED | ANY ACCEPTABLE |
| BOOM RADIUS AT WHICH LIFTING CAPACITY IS RATED | ANY ACCEPTABLE |
| OUTRIGGER POSITION AT WHICH LIFTING CAPACITY IS RATED | SET |
| BACKHOE MAXIMUM CAPACITY | 0.500 CUBIC YARDS |
| SHOVEL MAXIMUM CAPACITY | 0.500 CUBIC YARDS |
| OPERATING POWER TYPE | MECHANICAL |
| CRANE ENGINE TYPE | GASOLINE |
| QUANTITY | 1 |
| MANUFACTURER NAME | ANY ACCEPTABLE |
| MANUFACTURER IDENTIFYING NUMBER | ANY ACCEPTABLE |
| PRIME MOVER TYPE | GASOLINE ENGINE |
| ENGINE QUANTITY | 1 |
| ENGINE MANUFACTURER NAME | ANY ACCEPTABLE |
| ENGINE MANUFACTURER IDENTIFYING NUMBER | ANY ACCEPTABLE |
| DRUM QUANTITY | ANY ACCEPTABLE |
| BOOM OVERALL LENGTH | 30.000 FEET NOMINAL |
| BOOM DESIGN | NONTELESCOPING |
| BOOM MAXIMUM ANGLE IN DEG | ANY ACCEPTABLE |
| BOOM CONTINUOUS ROTATION FEATURE | INCLUDED |
| BOOM MAXIMUM ROTATION IN DEG | ANY ACCEPTABLE |
| BOOM EXTENSION TYPE | STRAIGHT JIB |

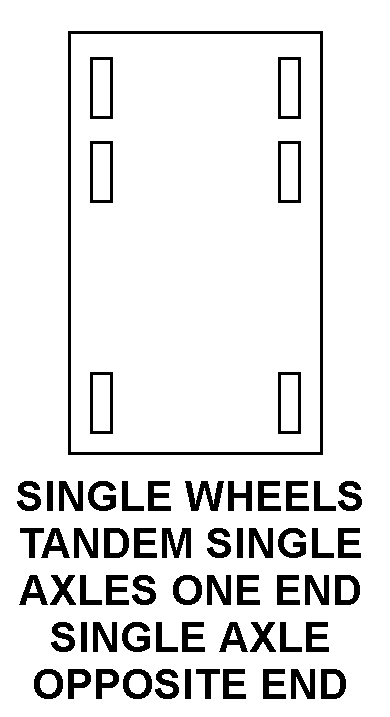

| WHEEL ARRANGEMENT STYLE | 8 SINGLE WHEELS, TANDEM SINGLE AXLES ONE END, SINGLE AXLE OPPOSITE END |
| REAR DRIVE WHEEL QUANTITY | 4 |
| FRONT DRIVE WHEEL QUANTITY | 2 |
| STEERABLE WHEEL QUANTITY | 2 |
| SHOVEL ATTACHMENT | INCLUDED |
| CROWD CONTROL METHOD | CHAIN AND WIRE ROPE |
| MAXIMUM DUMPING HEIGHT | ANY ACCEPTABLE |
| MAXIMUM DUMPING RADIUS | ANY ACCEPTABLE |
| MAXIMUM DIGGING HEIGHT | ANY ACCEPTABLE |
| MAXIMUM DIGGING RADIUS | ANY ACCEPTABLE |
| MAXIMUM CUT BELOW FLOOR LEVEL | ANY ACCEPTABLE |
| BACKHOE | INCLUDED |
| BACKHOE MAXIMUM DIGGING DEPTH | ANY ACCEPTABLE |
| BACKHOE MAXIMUM DIGGING RADIUS | ANY ACCEPTABLE |
| BACKHOE MAXIMUM DUMPING HEIGHT | ANY ACCEPTABLE |
| BACKHOE MAXIMUM DUMPING RADIUS | ANY ACCEPTABLE |
| OUTRIGGERS | INCLUDED |
| OPERATION METHOD | MANUAL |
| PILE DRIVER | INCLUDED |
| LEAD LENGTH | ANY ACCEPTABLE |
| BOOM LENGTH | 30.000 FEET NOMINAL |
| HAMMER WEIGHT | ANY ACCEPTABLE |
| MAXIMUM PILE DIAMETER ACCOMMODATED | ANY ACCEPTABLE |
| CRANE OPERATOR CAB | INCLUDED |
| FURNISHED ITEMS AND QUANTITY | HOOK PINTLE 1 |
| NONDEFINITIVE SPEC/STD DATA | A TYPE AND 12 1/2 T SIZE |
| DEPARTURE FROM CITED DESIGNATOR | CGTX |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC10466TYPEACLASS1SIZE12 1-2T |
| MANUFACTURERS CODE | 96906 |
| NON-DEFINITIVE GOVERNMENT | MILSTD179 |
Restrictions/Controls & Freight Information | NSN 3810-00-620-5242
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 118900 | CRANES/DERRICKS |
| Less than car load rating | F | 150 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | D | Hazardous material (not required hand to hand receipt) including all regulated items other than special weapons and their components. |
| Special Handling Code | D | unknonwn |
| HAZMAT | ||
| Type of Cargo | R | Flammable liquids, UN class 3 (flammable liquids label) |
Management | NSN 3810-00-620-5242
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | V | 8257X3080:Vehicular Equip (REMS) Vehicle Items and centrally funded, procured, and managed replenishment spares (ERRC XD-1, XD-2) |
| Source of Supply | JCD | |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
