NSN 3810-00-781-1199 MILC22972, 430ATC, 435TC
Product Details | TRUCK MOUNTED CRANE
3810-00-781-1199 A crane, consisting of a full revolving superstructure complete with boom and mounted on a heavy duty, self-propelled truck or truck chassis suitable for highway travel. It is primarily designed for weight lifting operations. The crane is self-powered or may derive its mobile power from the power unit of the truck chassis in connection with a hydraulic system. The crane is not convertible to shovel or backhoe operations. For truck mounted cranes convertible to shovel and backhoe operations in addition to performing weight lifting operations, see CRANE-SHOVEL, TRUCK MOUNTED. For items specifically designed for the recovery of disabled vehicles and equipment, see TRUCK, WRECKER.
Part Alternates: MILC22972, 430ATC, 435TC, 3810-00-781-1199, 00-781-1199, 3810007811199, 007811199
Construction, Mining, Excavating, and Highway Maintenance Equipment | Cranes and Crane-Shovels
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | 22 MAR 1968 | 00-781-1199 | 22758 ( CRANE, TRUCK MOUNTED ) |
Drawings & Photos | NSN 3810-00-781-1199
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3810-00-781-1199
Technical Data | NSN 3810-00-781-1199
| Characteristic | Specifications |
|---|---|
| MAXIMUM LIFTING CAPACITY | 35.0 TONS |
| BOOM LENGTH AT WHICH LIFTING CAPACITY IS RATED | 40.000 FEET NOMINAL |
| BOOM RADIUS AT WHICH LIFTING CAPACITY IS RATED | 12.000 FEET NOMINAL |
| OUTRIGGER POSITION AT WHICH LIFTING CAPACITY IS RATED | SET |
| OPERATING POWER TYPE | ANY ACCEPTABLE |
| CRANE ENGINE TYPE | DIESEL |
| QUANTITY | 1 |
| MANUFACTURER NAME | ANY ACCEPTABLE |
| MANUFACTURER IDENTIFYING NUMBER | ANY ACCEPTABLE |
| PRIME MOVER TYPE | DIESEL ENGINE |
| ENGINE QUANTITY | 1 |
| ENGINE MANUFACTURER NAME | ANY ACCEPTABLE |
| ENGINE MANUFACTURER IDENTIFYING NUMBER | ANY ACCEPTABLE |
| DRUM QUANTITY | 2 |
| BOOM OVERALL LENGTH | 60.000 FEET NOMINAL |
| BOOM DESIGN | NONTELESCOPING |
| BOOM MAXIMUM ANGLE IN DEG | ANY ACCEPTABLE |
| BOOM CONTINUOUS ROTATION FEATURE | INCLUDED |
| BOOM EXTENSION TYPE | MIDDLE BOOM |

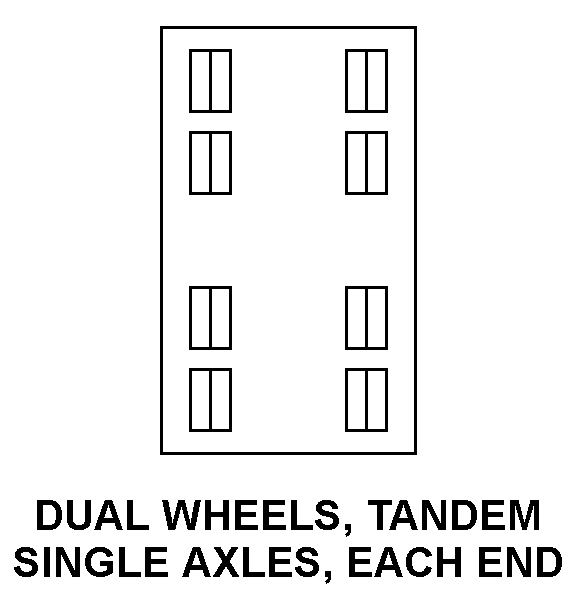

| WHEEL ARRANGEMENT STYLE | 28 DUAL WHEELS, TANDEM SINGLE AXLES, EACH END |
| REAR DRIVE WHEEL QUANTITY | 4 |
| STEERABLE WHEEL QUANTITY | 4 |
| OUTRIGGERS | INCLUDED |
| OPERATION METHOD | POWER |
| PILE DRIVER | NOT INCLUDED |
| CRANE OPERATOR CAB | INCLUDED |
| FURNISHED ITEMS AND QUANTITY | BOOM STOP 1,BOOM ANGLE INDICATOR 1,FAIRLEAD 1,HOOK BLOCK 1,TAGLINE 1 |
| SPECIAL FEATURES | RATED 46000 LB LIFT AT 20 FT RADIUS AND 19000 LB LIFT AT 40 FT RADIUS W/OUTRIGGERS AND 60 FT BOOM |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC22972 |
Restrictions/Controls & Freight Information | NSN 3810-00-781-1199
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 119020 | CRANES O/T REVOLVING ON AUTO SUB1 |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | JS | Naval ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3810-00-781-1199
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | PD | Regulated items, item manager controlled. |
| Budget Code | V | 8257X3080:Vehicular Equip (REMS) Vehicle Items and centrally funded, procured, and managed replenishment spares (ERRC XD-1, XD-2) |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
