NSN 3835-01-062-0806 C116373, C116-3-73, 01-062-0806
Product Details | PIPELINE VALVE SECTION
3835-01-062-0806 An assembled unit consisting of valves, nipples, pipe and/or other related items designed to regulate the flow of gases or liquids.
Part Alternates: C116373, C116-3-73, 3835-01-062-0806, 01-062-0806, 3835010620806, 010620806
Construction, Mining, Excavating, and Highway Maintenance Equipment | Petroleum Production and Distribution Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | 08 JUL 1978 | 01-062-0806 | 13390 ( VALVE SECTION, PIPELINE ) |
Drawings & Photos | NSN 3835-01-062-0806
Cross Reference | NSN 3835-01-062-0806
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C116-3-73 | 81361 | EDGEWOOD CHEMICAL BIOLOGICAL CENTER ECBC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3835-01-062-0806
Related Products | NSN 3835-01-062-0806
Technical Data | NSN 3835-01-062-0806
| Characteristic | Specifications |
|---|---|
| VALVE TYPE | CHECK |
| VALVE QUANTITY | 1 |
| VALVE BODY MATERIAL | STEEL |
| MAXIMUM WOG WORKING PRESSURE RATING | NOT RATED |
| MAXIMUM TEMP RATING | NOT RATED |
| VALVE SEAT RING RENEWABILITY | RENEWABLE |
| VALVE DISK SEAT RENEWABILITY | RENEWABLE |

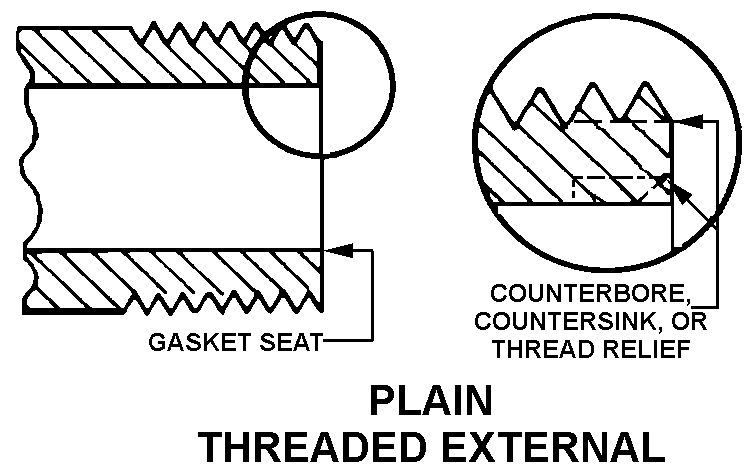

| PIPE END CONNECTION STYLE | 3 PLAIN THREADED EXTERNAL |
| PIPE MATERIAL | STEEL |
| SAFETY RELIEF VALVE | NOT INCLUDED |
| SPECIAL FEATURES | PIPE,STEEL,GRADE A,CLASS A53AS,1/8 NOM PIPE SIZE X 21 1/4 PLUS OR MINUS 1/8 LONG,ZINC-COATED,AFTER THREADING,APPLY FINISH 1.1.1.2 OF MIL-STD-171 TO THREADED ENDS; CHECK VALVE,"O-CHECK" PART NOS 2730-4 AND 2-5-017 OF MODELNO CV-1/8,ACE CONTROLS INC.,FARMINGTON,MICH. CODE IDENT.NO.27730; APPLY TAPE,ANTISEIZE,SIZE II(MIL-T-27730) TO PIPE ENDS PRIOR TO ASSEMBLY |
| MANUFACTURERS CODE | 81361 |
| DESIGN CONTROL REFERENCE | C116-3-73 |
Restrictions/Controls & Freight Information | NSN 3835-01-062-0806
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | S | 60 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3835-01-062-0806
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | B | Ground Forces Support Materiel (Other Support Materiel) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | Z | Other Munitions/CBR Categories |
| Weapons Systems/End Item or Homogeneous Group | ZF | Disperser Equipment |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | A12 | US Army Soldier's Biological and Chemical Command Natick, MA 01760 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | O | If condemned or economically unserviceable, dispose at organizational level. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | A12 | US Army Soldier's Biological and Chemical Command Natick, MA 01760 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
