NSN 3835-01-459-6945 CLS0827F, CLS-08-27F, 2982152
Product Details | PIPELINE VALVE SECTION
3835-01-459-6945 An assembled unit consisting of valves, nipples, pipe and/or other related items designed to regulate the flow of gases or liquids.
Part Alternates: CLS0827F, CLS-08-27F, 2982152, 3835-01-459-6945, 01-459-6945, 3835014596945, 014596945
Construction, Mining, Excavating, and Highway Maintenance Equipment | Petroleum Production and Distribution Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | 13 OCT 1998 | 01-459-6945 | 13390 ( VALVE SECTION, PIPELINE ) |
Drawings & Photos | NSN 3835-01-459-6945
Demand History | NSN 3835-01-459-6945
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2982152 | 2023-02-43 | 1 | DIBBS |
| CLS-08-27F | 2023-02-43 | 1 | DIBBS |
| 3835-01-459-6945 | 2018-04-93 | 1 | DIBBS |
| 3835-01-459-6945 | 2017-10-299 | 2 | DIBBS |
| 3835-01-459-6945 | 2017-10-284 | 1 | DIBBS |
| 3835-01-459-6945 | 2013-06-181 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3835-01-459-6945
Related Products | NSN 3835-01-459-6945
Technical Data | NSN 3835-01-459-6945
| Characteristic | Specifications |
|---|---|
| VALVE TYPE | CHECK |
| VALVE QUANTITY | 1 |
| VALVE BODY MATERIAL | STEEL |
| MAXIMUM WOG WORKING PRESSURE RATING | 3000.000 POUNDS PER SQUARE INCH |
| MAXIMUM TEMP RATING | 180.0 DEG FAHRENHEIT |
| VALVE NOMINAL PIPE SIZE | 8.000 INCHES |
| VALVE SEAT RING RENEWABILITY | NOT RENEWABLE |
| VALVE DISK SEAT RENEWABILITY | NOT RENEWABLE |

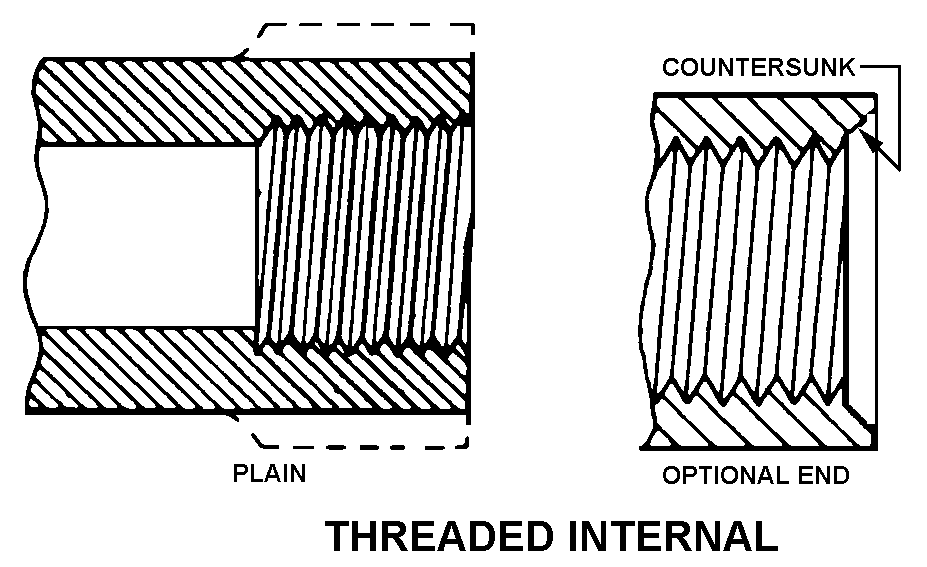

| PIPE END CONNECTION STYLE | 4 THREADED INTERNAL |
| PIPE MATERIAL | STEEL |
| NOMINAL PIPE SIZE | 8.000 INCHES |
| SAFETY RELIEF VALVE | NOT INCLUDED |
| OVERALL LENGTH | 0.360 FEET NOMINAL |
Restrictions/Controls & Freight Information | NSN 3835-01-459-6945
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3835-01-459-6945
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
