NSN 3930-01-008-7044 SC-30, SC30, 01-008-7044
Product Details | FORK LIFT TRUCK
3930-01-008-7044 A self-propelled, wheeled vehicle, equipped with power driven front or side loading fork, type elevating unit(s). The elevating unit(s) may extend and retract to provide a reaching capability. It is primarily used for lifting, transporting, and stacking. For nonself-propelled, wheeled vehicles equipped with either manual or power driven elevating unit(s), see ELEVATOR, PORTABLE and TRUCK, LIFT, HAND. Excludes TRUCK, LIFT, PLATFORM.
Part Alternates: SC-30, SC30, 3930-01-008-7044, 01-008-7044, 3930010087044, 010087044
Materials Handling Equipment | Warehouse Trucks and Tractors, Self-Propelled
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 29 AUG 1975 | 01-008-7044 | 03197 ( TRUCK, LIFT, FORK ) |

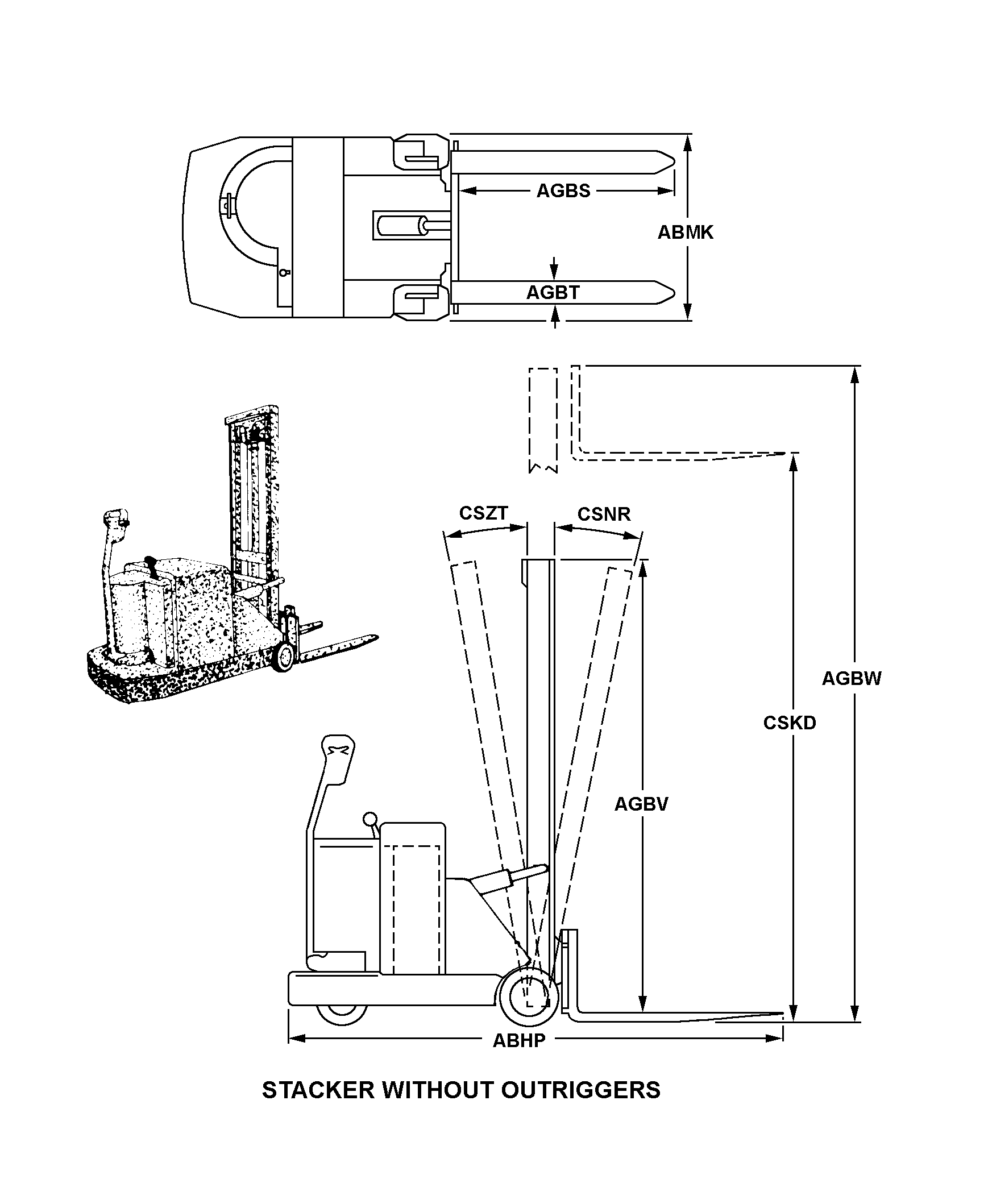

Drawings & Photos | NSN 3930-01-008-7044
Demand History | NSN 3930-01-008-7044
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SC30 | 2021-05-131 | 60 | US |
Cross Reference | NSN 3930-01-008-7044
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SC-30 | 93880 | PRIME-MOVER CO THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3930-01-008-7044
Technical Data | NSN 3930-01-008-7044
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 11 STACKER WITHOUT OUTRIGGERS |
| OVERALL LENGTH | 111.500 INCHES NOMINAL |
| OVERALL WIDTH | 33.750 INCHES NOMINAL |
| FORK LENGTH | 42.000 INCHES NOMINAL |
| FORK WIDTH | 4.000 INCHES NOMINAL |
| OVERALL HEIGHT WITH FORKS IN LOWEST POSITION | 71.000 INCHES NOMINAL |
| OVERALL HEIGHT WITH FORKS IN HIGHEST POSITION | 115.250 INCHES NOMINAL |
| LIFT HEIGHT OF FORKS | 100.000 INCHES MAXIMUM |
| BOOM FORWARD TILT ANGLE | 3.0 DEGREES NOMINAL |
| BOOM BACKWARD TILT ANGLE | 8.0 DEGREES NOMINAL |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| BATTERY COMPARTMENT LENGTH | 31.188 INCHES NOMINAL |
| BATTERY COMPARTMENT WIDTH | 13.750 INCHES NOMINAL |
| BATTERY COMPARTMENT DEPTH | 24.625 INCHES NOMINAL |
| MAXIMUM LOAD RATING | 3000.000 POUNDS |
| FORK/PLATFORM MAXIMUM FREE LIFT HEIGHT | 55.000 INCHES |
| LIFT MECHANISM TYPE | HYDRAULIC |
| LIFT ACTUATION METHOD | POWERED |
| WHEEL TYPE AND QUANTITY | 2 SINGLE SOLID LOAD WHEEL 1 SINGLE SOLID STEERABLE WHEEL |
| STEERING TYPE | CRAMPING |
| TRANSMISSION TYPE | MANUAL |
| FEATURES PROVIDED | TELESCOPIC MAST AND FORK SIDE SHIFT AND LOAD LEVELING DEVICE |
| SPECIAL FEATURES | FORK/PLATFORM UPRIGHT BOOM |
| III FORK LOAD CENTER DISTANCE | 24.000 INCHES NOMINAL |
| III FORK SPREAD DISTANCE | 8.000 INCHES MINIMUM AND 36.000 INCHES MAXIMUM |
| III STORAGE AISLE MINIMUM WIDTH | 111.000 INCHES |
Restrictions/Controls & Freight Information | NSN 3930-01-008-7044
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
