NSN 3930-01-050-7546 PDH2566, PDH-25-66, 01-050-7546
Product Details | FORK LIFT TRUCK
3930-01-050-7546 A self-propelled, wheeled vehicle, equipped with power driven front or side loading fork, type elevating unit(s). The elevating unit(s) may extend and retract to provide a reaching capability. It is primarily used for lifting, transporting, and stacking. For nonself-propelled, wheeled vehicles equipped with either manual or power driven elevating unit(s), see ELEVATOR, PORTABLE and TRUCK, LIFT, HAND. Excludes TRUCK, LIFT, PLATFORM.
Part Alternates: PDH2566, PDH-25-66, 3930-01-050-7546, 01-050-7546, 3930010507546, 010507546
Materials Handling Equipment | Warehouse Trucks and Tractors, Self-Propelled
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 13 NOV 1977 | 01-050-7546 | 03197 ( TRUCK, LIFT, FORK ) |

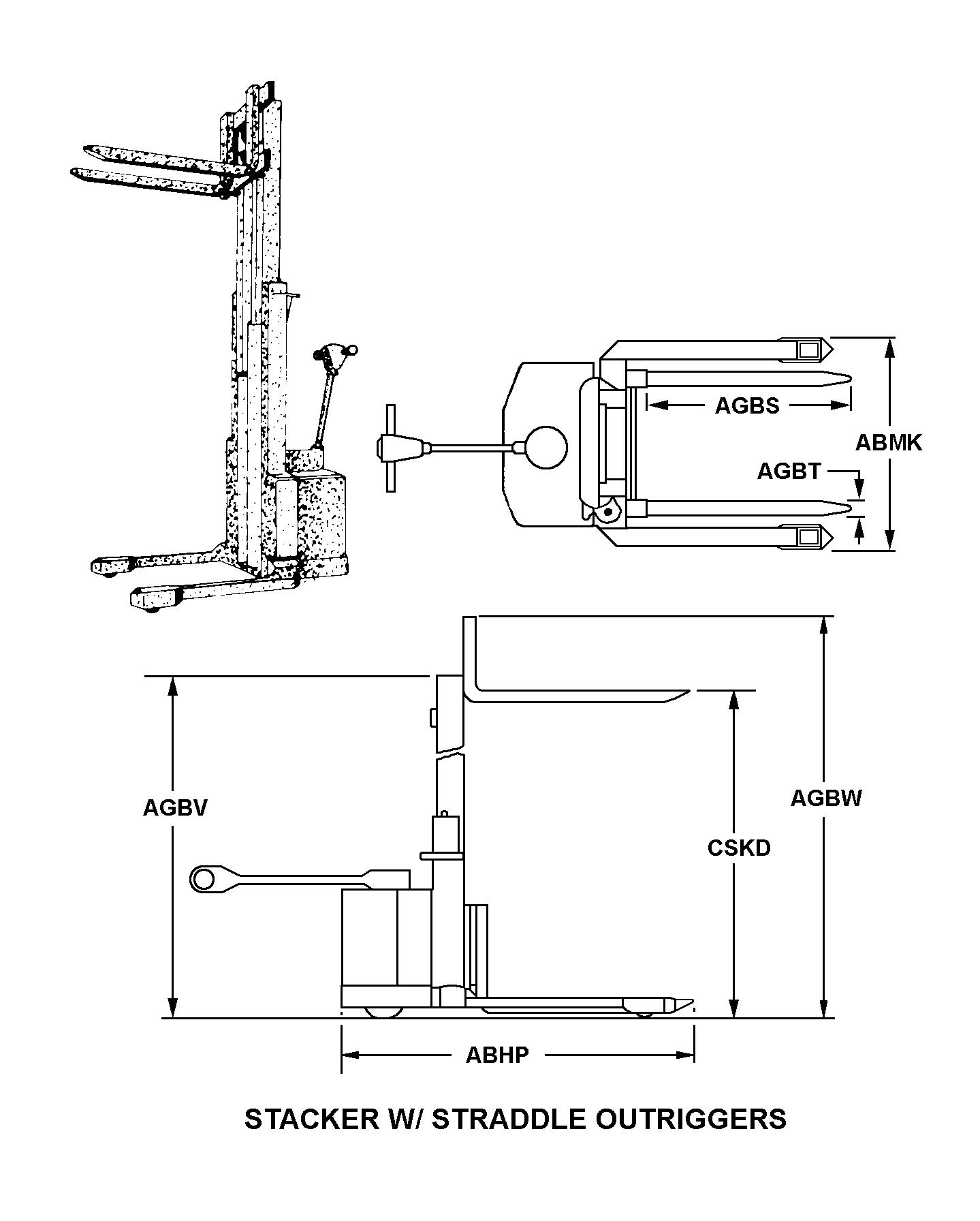

Drawings & Photos | NSN 3930-01-050-7546
Cross Reference | NSN 3930-01-050-7546
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PDH-25-66 | 06889 | BIG JOE MFG CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3930-01-050-7546
Technical Data | NSN 3930-01-050-7546
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 10 STACKER WITH STRADDLE OUTRIGGERS |
| OVERALL LENGTH | 63.375 INCHES NOMINAL |
| FORK LENGTH | 48.000 INCHES NOMINAL |
| OVERALL HEIGHT WITH FORKS IN LOWEST POSITION | 83.000 INCHES NOMINAL |
| OVERALL HEIGHT WITH FORKS IN HIGHEST POSITION | 85.000 INCHES NOMINAL |
| LIFT HEIGHT OF FORKS | 66.000 INCHES MAXIMUM |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| BATTERY COMPARTMENT LENGTH | 31.500 INCHES NOMINAL |
| BATTERY COMPARTMENT WIDTH | 6.750 INCHES NOMINAL |
| BATTERY COMPARTMENT DEPTH | 23.250 INCHES NOMINAL |
| VEHICULAR TURN RADIUS | 60.000 INCHES NOMINAL |
| MAXIMUM LOAD RATING | 2500.000 POUNDS |
| FORK/PLATFORM MAXIMUM FREE LIFT HEIGHT | 58.000 INCHES |
| LIFT MECHANISM TYPE | HYDRAULIC |
| WHEEL TYPE AND QUANTITY | 2 DUAL SOLID DRIVE WHEEL 2 DUAL SOLID LOAD WHEEL 2 DUAL SOLID STEERABLE WHEEL |
| FEATURES PROVIDED | BATTERY AND TELESCOPIC MAST |
| SPECIAL FEATURES | FORK/PLATFORM UPRIGHT BOOM |
| III RATED SPEED | 3.1 MILES PER HOUR |
| III FORK LOAD CENTER DISTANCE | 24.000 INCHES NOMINAL |
| III FORK SPREAD DISTANCE | 28.000 INCHES MAXIMUM |
| III STORAGE AISLE MINIMUM WIDTH | 66.000 INCHES |
Restrictions/Controls & Freight Information | NSN 3930-01-050-7546
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
