NSN 3940-00-051-8601 S1801860407PC135T079T01114, S1801-860407PC1-3-5T07-9T011-14, GGGB490
Product Details | TACKLE BLOCK
3940-00-051-8601 A mechanical device, consisting of a pulley(s) or sheave(s) encased in a shell or frame which may be provided with a means such as a hook, eye, strap, screw, etc., by which it may be attached to an object. It is used to change direction of a running rope and/or to gain a mechanical advantage.
Part Alternates: S1801860407PC135T079T01114, S1801-860407PC1-3-5T07-9T011-14, GGGB490, GGG-B-490, 1801860407PC135T079T01114, 1801-860407PC1-3-5T07-9T011-14, 3940-00-051-8601, 00-051-8601, 3940000518601, 000518601
Materials Handling Equipment | Blocks, Tackle, Rigging, and Slings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 01 JAN 1963 | 00-051-8601 | 06117 ( BLOCK, TACKLE ) |

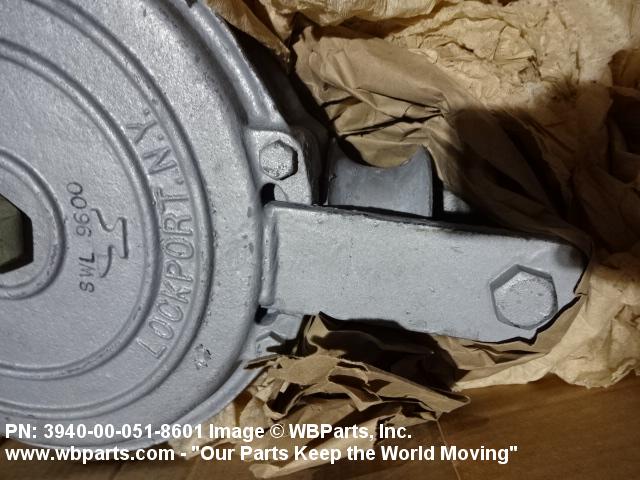

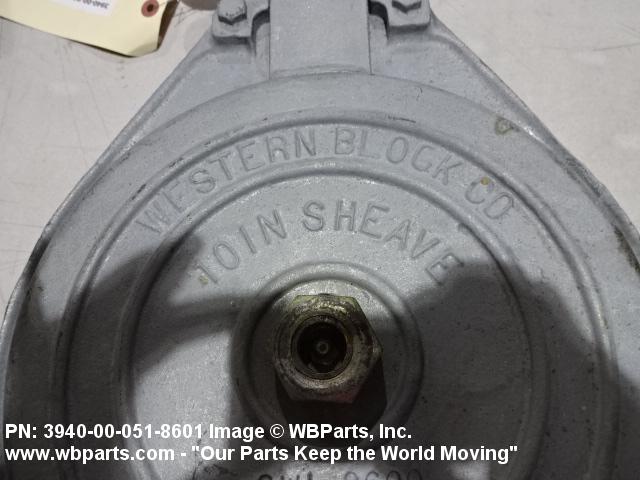

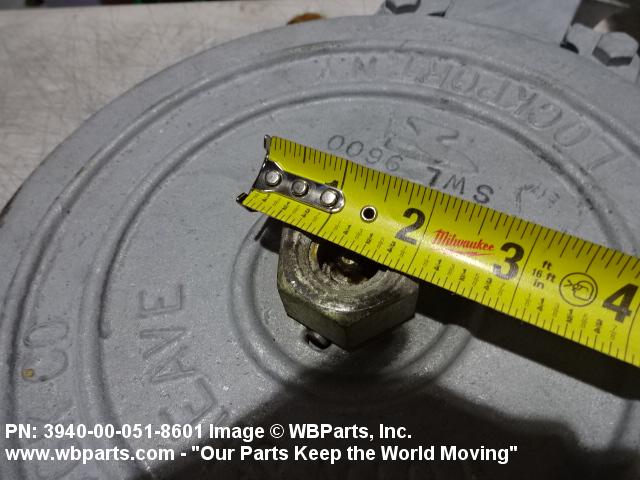

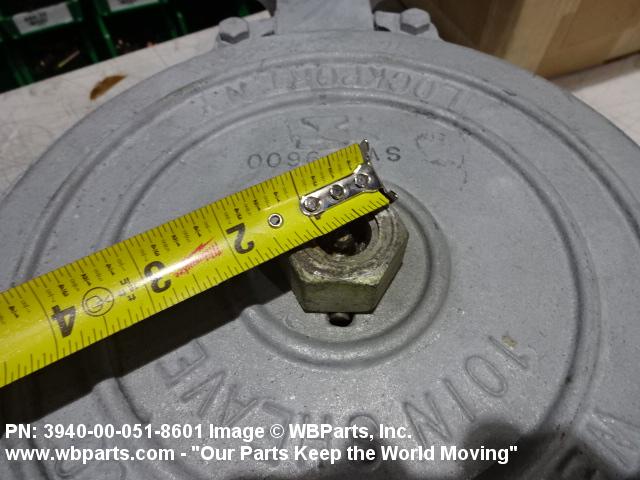

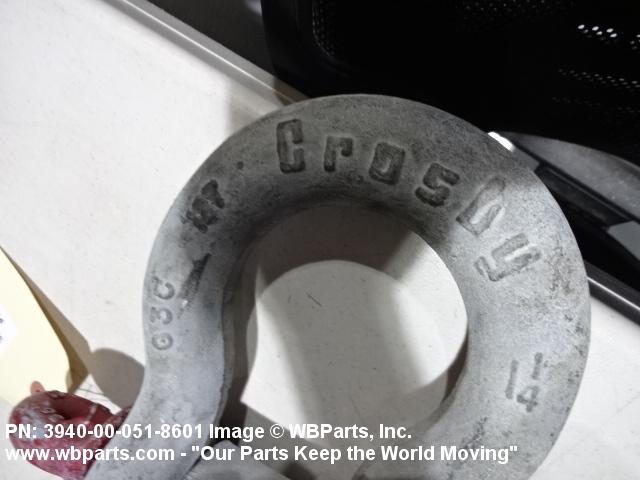

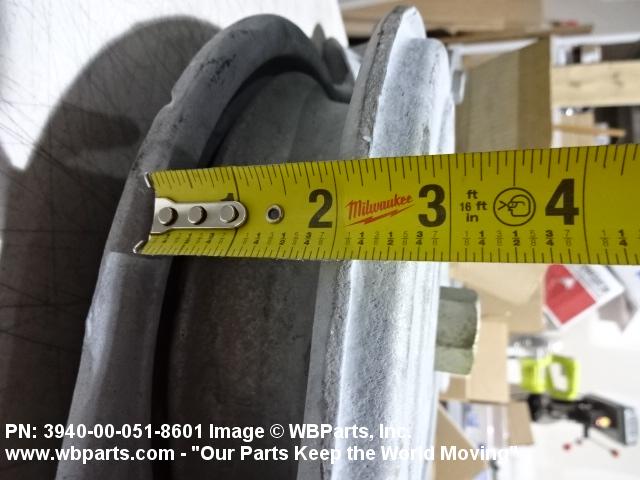

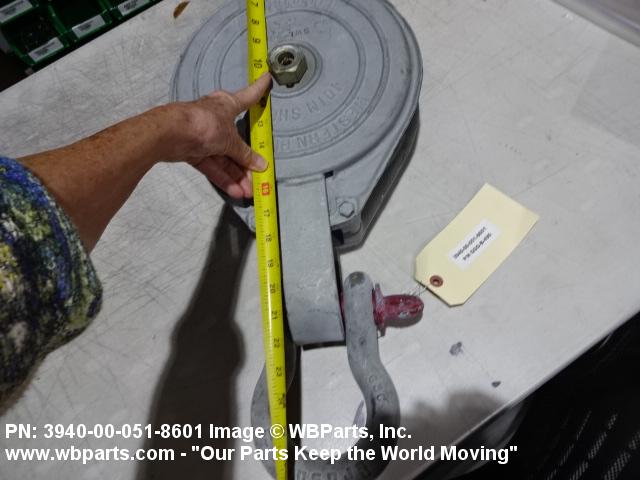

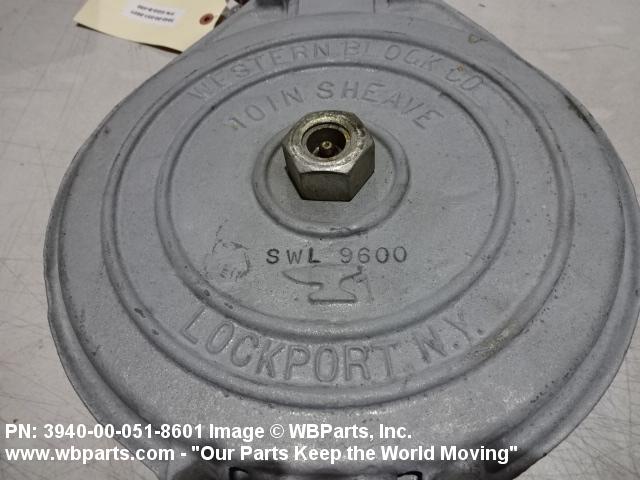

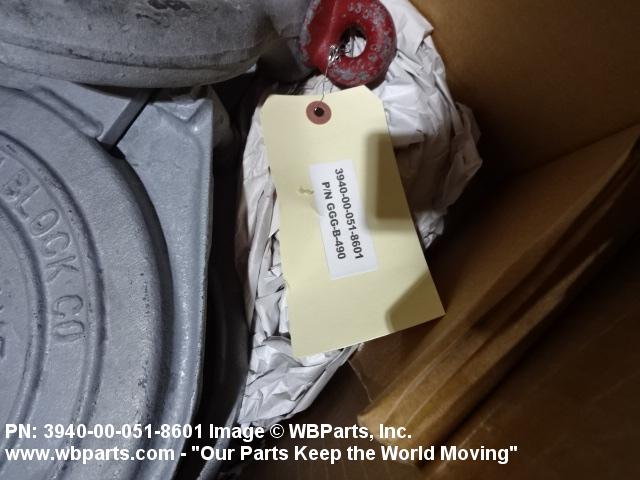

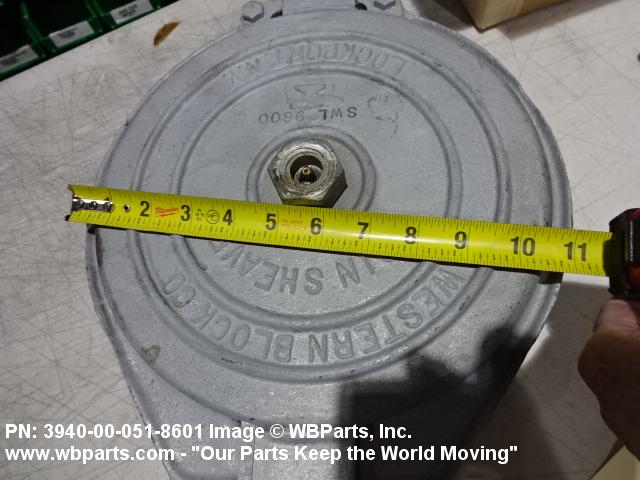

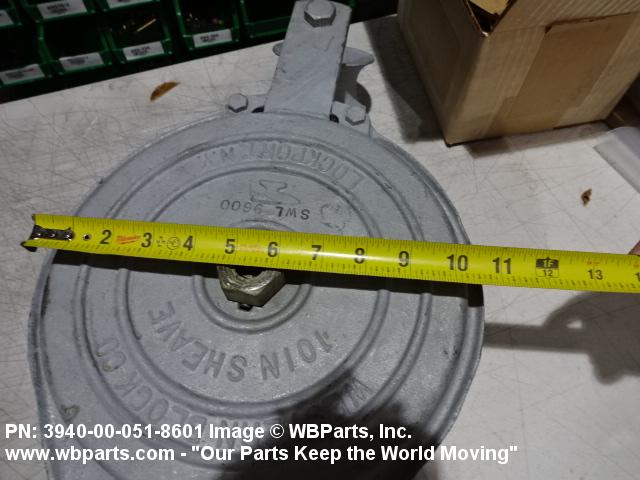

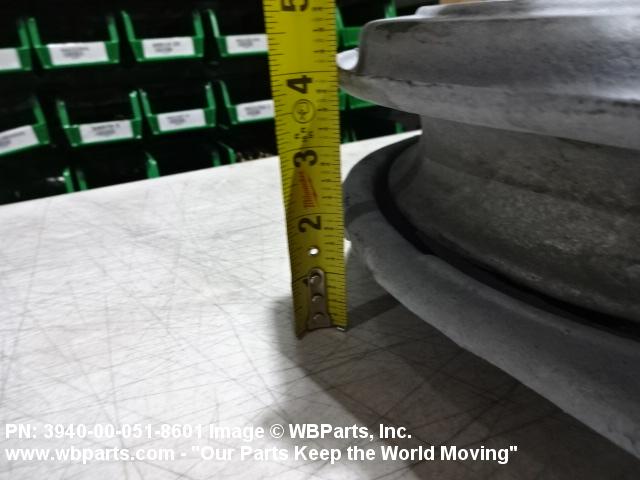

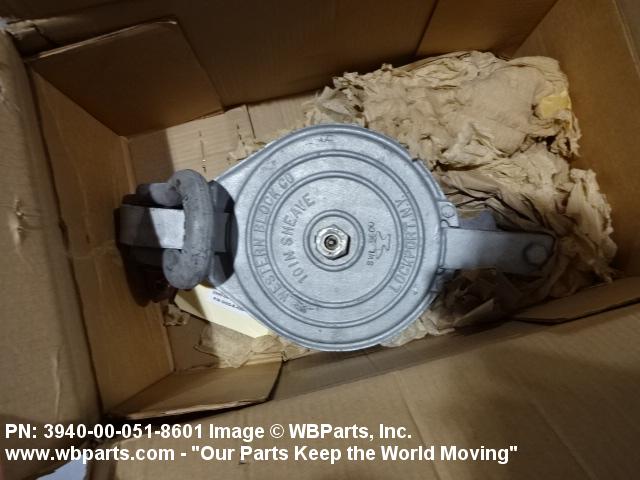

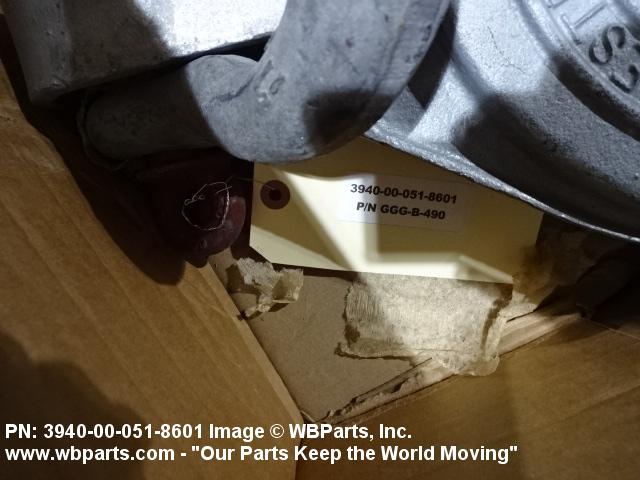

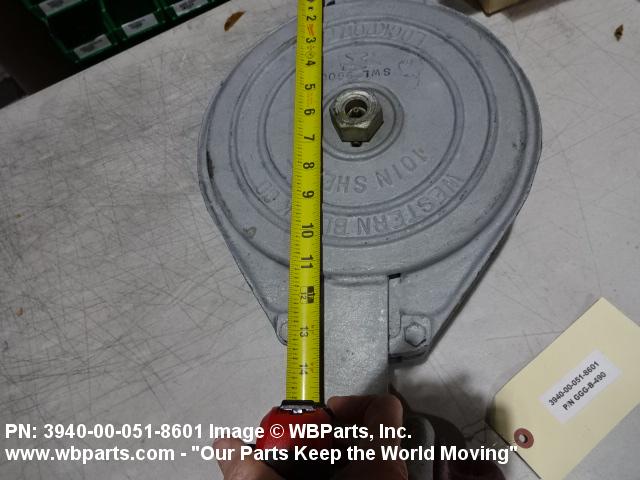

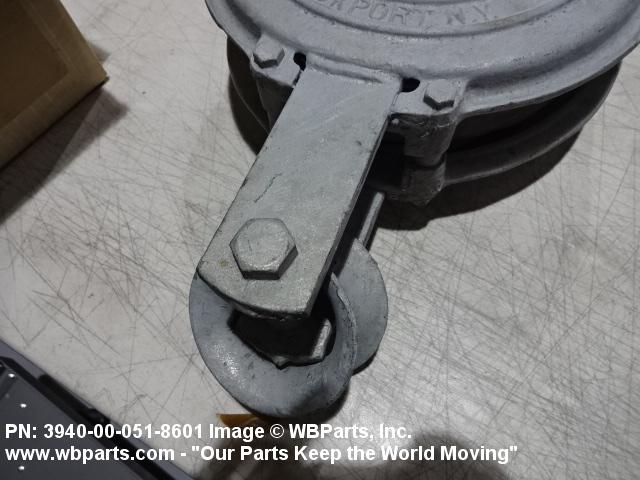

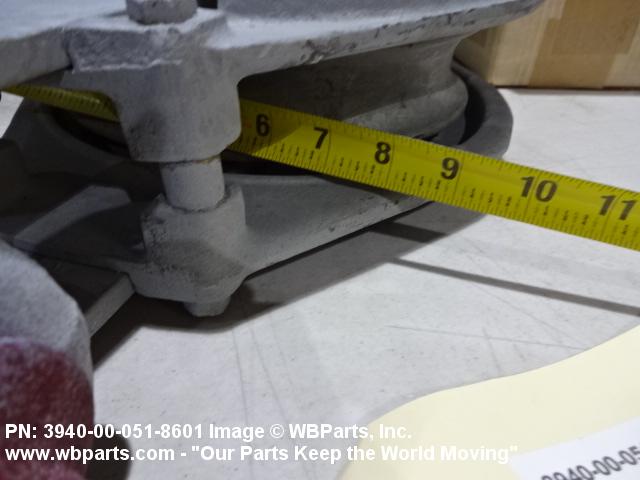

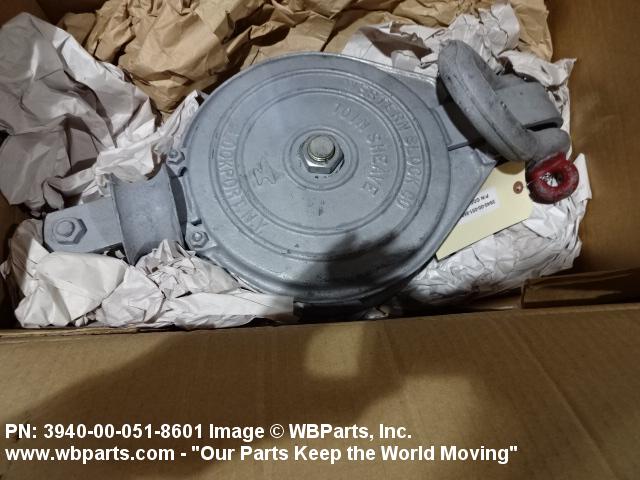

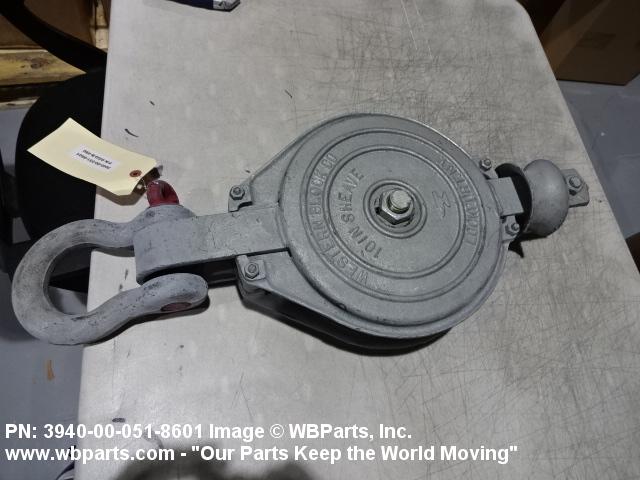

Drawings & Photos | NSN 3940-00-051-8601
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3940-00-051-8601
Technical Data | NSN 3940-00-051-8601
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 3 ROUND PATTERN |
| SHELL LENGTH | 14.000 INCHES NOMINAL |
| SHEAVE OUTSIDE DIAMETER | 9.500 INCHES NOMINAL |
| CENTER PIN DIAMETER | 0.875 INCHES NOMINAL |
| BLOCK TYPE | REGULAR |
| MATERIAL AND LOCATION | BRONZE BEARING STEEL CENTER PIN IRON SHEAVE AND STEEL SHEAVE IRON SHELL AND STEEL SHELL |
| SURFACE TREATMENT AND LOCATION | ZINC, ELECTROLYTIC OVERALL |
| SHEAVE QUANTITY | 1 |
| BEARING TYPE | PLAIN |
| SHEAVE BEARING LUBRICATION METHOD | SELF-LUBRICATED |
| TACKLE ACCOMMODATED TYPE | FIBROUS ROPE |
| MAXIMUM TACKLE DIAMETER ACCOMMODATED | 1.750 INCHES |
| TACKLE LOCKING DEVICE | NOT INCLUDED |
| BECKET TYPE | THIMBLE |
| BECKET QUANTITY | 1 |
| ANTITOPPLING DEVICE | NOT INCLUDED |
| ATTACHMENT STYLE | 9 CHAIN SHACKLE |
| MAXIMUM LOAD RATING | 9600.0 POUNDS |
| SPECIAL FEATURES | SHEAVE THICKNESS AT RIM MIN 1.875 IN. |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGG-B-490 |
Restrictions/Controls & Freight Information | NSN 3940-00-051-8601
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127300 | PULLEY BLOCKS/TCKLE/SNATCH/FAIRLDRS |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3940-00-051-8601
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
