NSN 3940-00-071-0386 3043A, 00-071-0386, 000710386
Product Details | TACKLE BLOCK
3940-00-071-0386 A mechanical device, consisting of a pulley(s) or sheave(s) encased in a shell or frame which may be provided with a means such as a hook, eye, strap, screw, etc., by which it may be attached to an object. It is used to change direction of a running rope and/or to gain a mechanical advantage.
Part Alternates: 3043A, 3940-00-071-0386, 00-071-0386, 3940000710386, 000710386
Materials Handling Equipment | Blocks, Tackle, Rigging, and Slings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 01 JAN 1963 | 00-071-0386 | 06117 ( BLOCK, TACKLE ) |
Drawings & Photos | NSN 3940-00-071-0386
Cross Reference | NSN 3940-00-071-0386
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3043A | 71110 | BREWER-TITCHNER CORP SUB JOSLYN MFG AND SUPPLY CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3940-00-071-0386
Technical Data | NSN 3940-00-071-0386
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 2 OVAL PATTERN |
| SHELL LENGTH | 6.000 INCHES NOMINAL |
| SHEAVE OUTSIDE DIAMETER | 3.500 INCHES NOMINAL |
| CENTER PIN DIAMETER | 0.500 INCHES NOMINAL |
| BLOCK TYPE | REGULAR |
| MATERIAL AND LOCATION | BRONZE BEARING STEEL CENTER PIN STEEL SHEAVE STEEL SHELL |
| SURFACE TREATMENT AND LOCATION | ZINC, ELECTROLYTIC OVERALL |
| SHEAVE QUANTITY | 3 |
| BEARING TYPE | PLAIN |
| SHEAVE BEARING LUBRICATION METHOD | SELF-LUBRICATED |
| TACKLE ACCOMMODATED TYPE | FIBROUS ROPE |
| MAXIMUM TACKLE DIAMETER ACCOMMODATED | 0.750 INCHES |
| TACKLE LOCKING DEVICE | NOT INCLUDED |
| BECKET TYPE | THIMBLE |
| BECKET QUANTITY | 1 |
| ANTITOPPLING DEVICE | NOT INCLUDED |

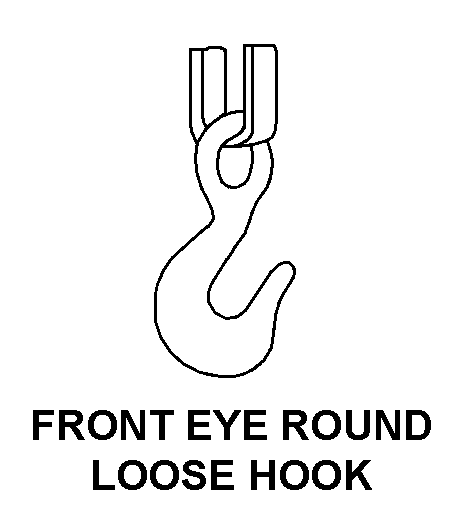

| ATTACHMENT STYLE | 22 FRONT EYE ROUND LOOSE HOOK AND 31 STIFF, UPSET SWIVEL SHACKLE |
| MAXIMUM LOAD RATING | 2500.0 POUNDS |
Restrictions/Controls & Freight Information | NSN 3940-00-071-0386
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
