NSN 3940-01-380-1828 RE162X106, RE1-62X10-6, 0641C002
Product Details | EYE SLING
3940-01-380-1828 An item made of strap, rope, webbing, or the like, specifically designed to hold securely something being hoisted, lowered, carried, dropped, or suspended. These items are characterized by a loop or eye at both ends. Excludes items of a single lentgth of material with fittings. See also WIRE ROPE ASSEMBLY, SINGLE LEG; FIBER ROPE ASSEMBLY, SINGLE LEG; and STRAP (as modified).
Part Alternates: RE162X106, RE1-62X10-6, 0641C002, 0641C00-2, 3940-01-380-1828, 01-380-1828, 3940013801828, 013801828
Materials Handling Equipment | Blocks, Tackle, Rigging, and Slings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 15 SEP 1993 | 01-380-1828 | 40120 ( SLING, EYE ) |

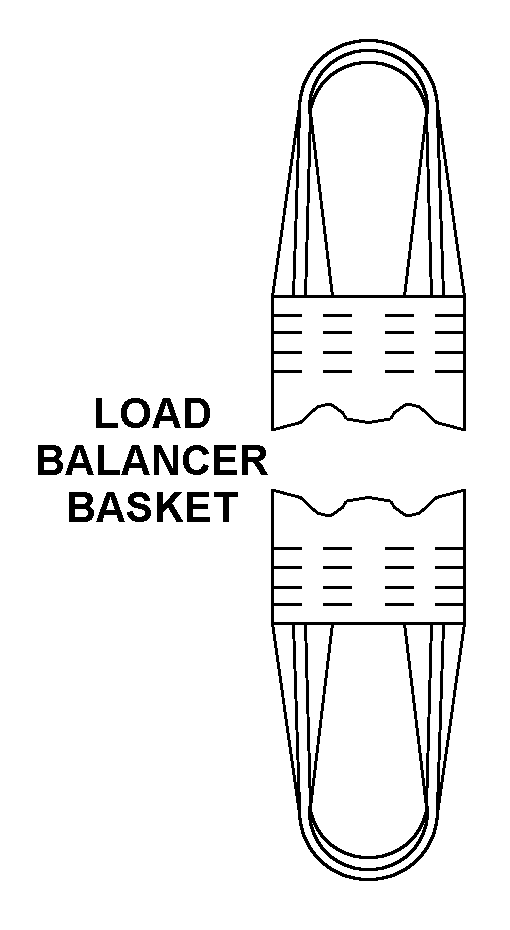

Drawings & Photos | NSN 3940-01-380-1828
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3940-01-380-1828
Technical Data | NSN 3940-01-380-1828
| Characteristic | Specifications |
|---|---|
| SLING MATERIAL TYPE | WEB STRAP |
| STYLE DESIGNATOR | 6 LOAD BALANCER BASKET |
| OVERALL LENGTH | 126.000 INCHES NOMINAL |
| OVERALL WIDTH | 4.000 INCHES NOMINAL |
| LIFTING CAPACITY | 9000.000 POUNDS |
| SPECIAL FEATURES | LIFTING CAPACITY 4500 VERTICAL AND 9000 BASKET |
Restrictions/Controls & Freight Information | NSN 3940-01-380-1828
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
