NSN 3940-01-442-9789 7D305679, 7D3-05679, 7D5-05660 REV B ITEM 9
Product Details | TACKLE BLOCK
3940-01-442-9789 A mechanical device, consisting of a pulley(s) or sheave(s) encased in a shell or frame which may be provided with a means such as a hook, eye, strap, screw, etc., by which it may be attached to an object. It is used to change direction of a running rope and/or to gain a mechanical advantage.
Part Alternates: 7D305679, 7D3-05679, 7D5-05660 REV B ITEM 9, 7D505660REVBITEM9, 3940-01-442-9789, 01-442-9789, 3940014429789, 014429789
Materials Handling Equipment | Blocks, Tackle, Rigging, and Slings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 28 MAR 1997 | 01-442-9789 | 06117 ( BLOCK, TACKLE ) |
Drawings & Photos | NSN 3940-01-442-9789
Demand History | NSN 3940-01-442-9789
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7D3-05679 | 2023-09-268 | 1 | DIBBS |
| 7D5-05660 REV B ITEM 9 | 2023-09-268 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3940-01-442-9789
Technical Data | NSN 3940-01-442-9789
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 12 HOISTER PATTERN |
| SHELL LENGTH | 20.000 INCHES NOMINAL |
| SHEAVE OUTSIDE DIAMETER | 14.000 INCHES NOMINAL |
| CENTER PIN DIAMETER | 0.500 INCHES NOMINAL |
| BLOCK TYPE | REGULAR |
| MATERIAL AND LOCATION | STEEL OVERALL |
| SHEAVE QUANTITY | 1 |
| BEARING TYPE | PLAIN |
| SHEAVE BEARING LUBRICATION METHOD | PRESSURE GREASE FITTING |
| TACKLE ACCOMMODATED TYPE | WIRE ROPE |
| MAXIMUM TACKLE DIAMETER ACCOMMODATED | 0.500 INCHES |
| TACKLE LOCKING DEVICE | NOT INCLUDED |
| ANTITOPPLING DEVICE | NOT INCLUDED |

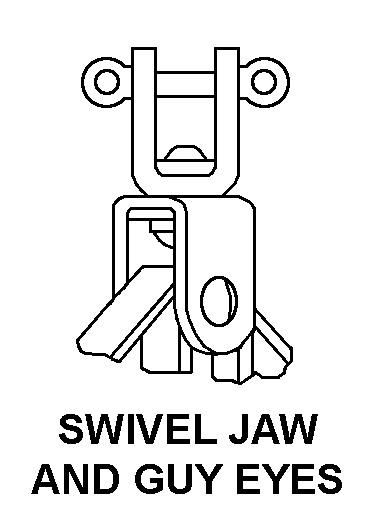

| ATTACHMENT STYLE | 5 SWIVEL JAW AND GUY EYES |
| MAXIMUM LOAD RATING | NOT RATED |
| SPECIAL FEATURES | 40.72 IN. FROM CENTER POINT OF SHEAVE TO LOAD BEARING SURFACE OF HOOK; STEEL CONSTRUCTION WITH PLASTIC SHIMSAGAVGAOE10 DAVIT |
| III END ITEM IDENTIFICATION | MANUFACTURER NAME, HOOK BLOCK ASSEMBLY |
Restrictions/Controls & Freight Information | NSN 3940-01-442-9789
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127300 | PULLEY BLOCKS/TCKLE/SNATCH/FAIRLDRS |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3940-01-442-9789
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
