NSN 3950-01-323-3218 K1CA33LP, 75182AA4, 01-323-3218
Product Details | CHAIN HOIST
3950-01-323-3218 A device designed to be suspended above deck, floor or ground level having one or more revolving whelped wheels over which a chain is passed for the purpose of raising or lowering a load. May be suspended so as to travel on a fixed track.
Part Alternates: K1CA33LP, 75182AA4, 3950-01-323-3218, 01-323-3218, 3950013233218, 013233218
Materials Handling Equipment | Winches, Hoists, Cranes, and Derricks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 26 JUL 1990 | 01-323-3218 | 04587 ( HOIST, CHAIN ) |
Drawings & Photos | NSN 3950-01-323-3218
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3950-01-323-3218
Related Products | NSN 3950-01-323-3218
Technical Data | NSN 3950-01-323-3218
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | POWER |
| PRIME MOVER TYPE | PNEUMATIC MOTOR |
| PRIME MOVER QUANTITY | 1 |
| COOLING METHOD | ANY ACCEPTABLE |
| POWER DRIVE OPERATING PRESSURE | 90.0 POUNDS PER SQUARE INCH GAGE |
| HOOK QUANTITY | 1 |
| LOAD ELEMENT QUANTITY PER HOOK | 1 |
| CHAIN TYPE | PROOF COIL |
| CHAIN MATERIAL DIAMETER | ANY ACCEPTABLE |
| SUSPENSION MOUNTING METHOD | TROLLEY |

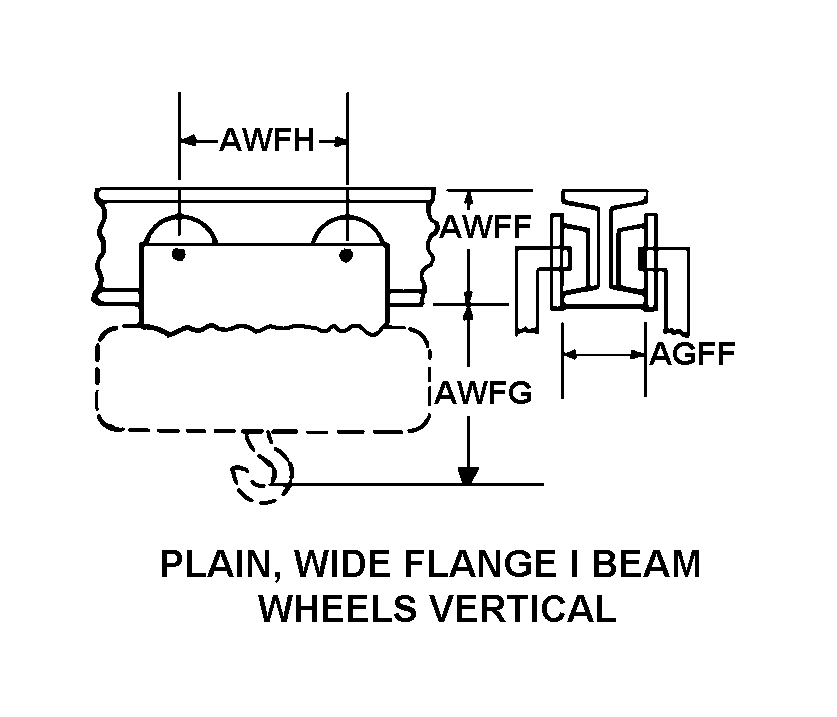

| TROLLEY SUSPENSION STYLE | 3 PLAIN, WIDE FLANGE I BEAM WHEELS VERTICAL |
| FLANGE WIDTH | 3.000 INCHES MINIMUM AND 6.250 INCHES MAXIMUM |
| TRACK HEIGHT | ANY ACCEPTABLE |
| TRACK UNDERSIDE DISTANCE TO LOAD HOOK BEARING SURFACE IN FULLY RAISED POSITION | 19.620 INCHES NOMINAL |
| WHEEL CENTER TO CENTER DISTANCE | 9.000 INCHES NOMINAL |
| TROLLEY TYPE | MOTOR DRIVEN |
| MAXIMUM TRAVERSING SPEED | 67.0 FEET PER MINUTE |
| MAXIMUM LIFT HEIGHT | 21.0 FEET |
| MAXIMUM LOAD RATING | 3300.0 POUNDS |
| MOUNTING POSITION | RIGHT ANGLE |
| III UNPACKAGED UNIT LENGTH | 17.810 INCHES NOMINAL |
| III UNPACKAGED UNIT WIDTH | 20.620 INCHES NOMINAL |
| III UNPACKAGED UNIT HEIGHT | 19.620 INCHES NOMINAL |
| III UNPACKAGED UNIT WEIGHT | 325.00 POUNDS |
Restrictions/Controls & Freight Information | NSN 3950-01-323-3218
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 117040 | CHAIN/PULLEY HOISTS/BLOCKS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3950-01-323-3218
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
