NSN 3950-01-376-0230 4537408278, 4537408-278, 600015
Product Details | WIRE ROPE HOIST
3950-01-376-0230 A device designed to be suspended above deck, floor or ground level having one or more revolving steel grooved drums around which wire rope is wound for the purpose of raising or lowering a load. May be suspended so as to travel on a fixed track.
Part Alternates: 4537408278, 4537408-278, 600015, 6000-15, 600015SH, 6000-15SH, 3950-01-376-0230, 01-376-0230, 3950013760230, 013760230
Materials Handling Equipment | Winches, Hoists, Cranes, and Derricks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 24 MAY 1993 | 01-376-0230 | 04588 ( HOIST, WIRE ROPE ) |

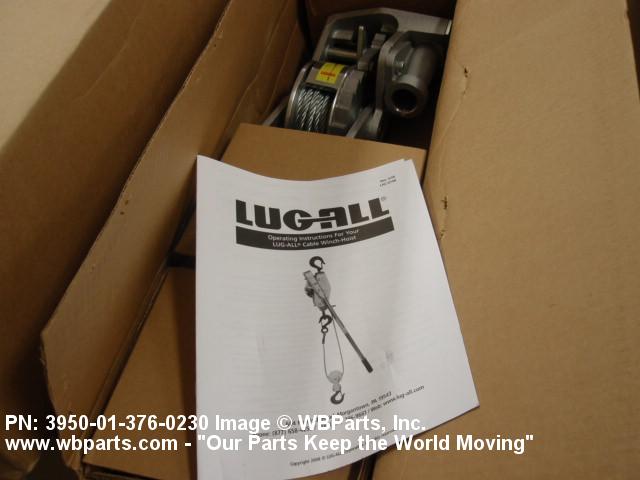

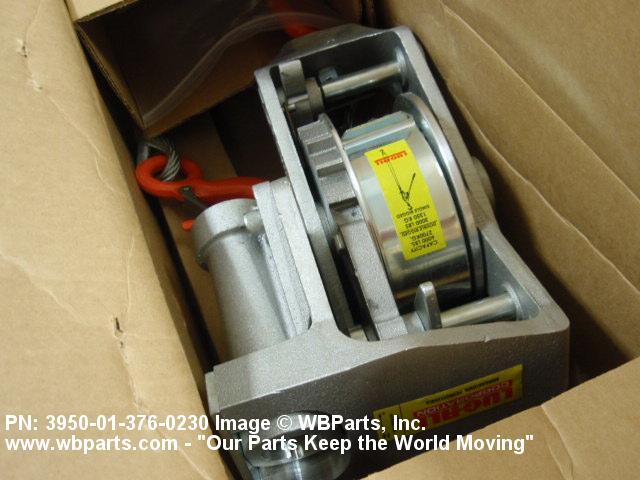

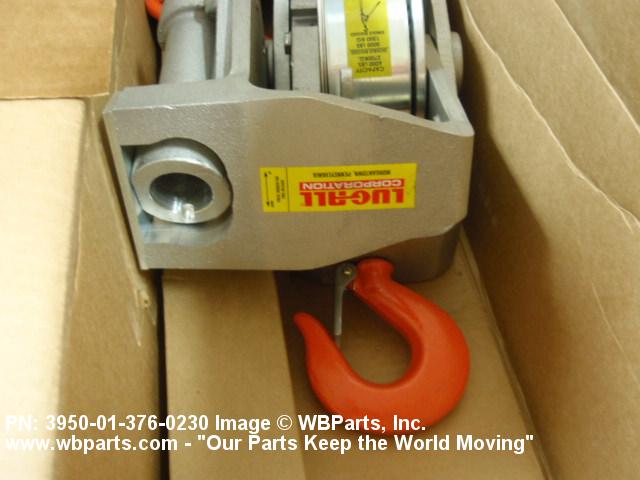

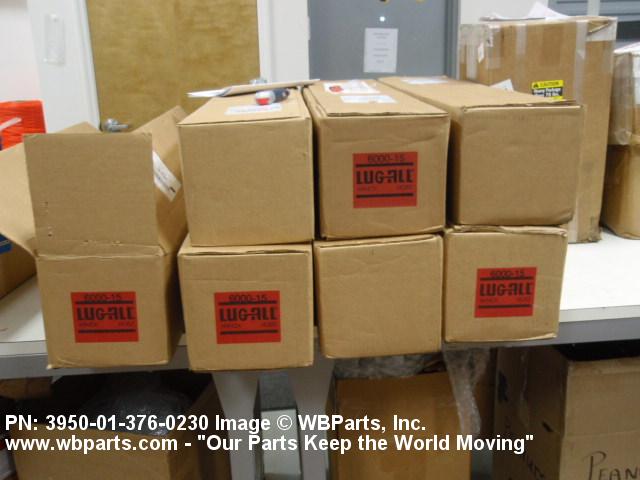

Drawings & Photos | NSN 3950-01-376-0230
Demand History | NSN 3950-01-376-0230
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3950-01-376-0230 | 2012-02-38 | 6 | DIBBS |
| 600015 | 2011-02-33 | 1 | VE |
| 3950-01-376-0230 | 2009-10-292 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3950-01-376-0230
Technical Data | NSN 3950-01-376-0230
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | HAND |
| HOOK QUANTITY | 3 |
| LOAD ELEMENT QUANTITY PER HOOK | 1 |
| SUSPENSION MOUNTING METHOD | HOOK |
| RAISED POSITION DISTANCE BETWEEN SUSPENSION HOOK AND LOAD HOOK BEARING SURFACE | 13.000 INCHES MINIMUM |
| MAXIMUM LOAD RATING | 6000.0 POUNDS |
| MOUNTING POSITION | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 3950-01-376-0230
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 117040 | CHAIN/PULLEY HOISTS/BLOCKS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | ZN | Netherlands ZO ZP |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3950-01-376-0230
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
