NSN 3950-01-417-5906 K1CA66LP, 75186AA6, 01-417-5906
Product Details | CHAIN HOIST
3950-01-417-5906 A device designed to be suspended above deck, floor or ground level having one or more revolving whelped wheels over which a chain is passed for the purpose of raising or lowering a load. May be suspended so as to travel on a fixed track.
Part Alternates: K1CA66LP, 75186AA6, 3950-01-417-5906, 01-417-5906, 3950014175906, 014175906
Materials Handling Equipment | Winches, Hoists, Cranes, and Derricks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 10 AUG 1995 | 01-417-5906 | 04587 ( HOIST, CHAIN ) |
Drawings & Photos | NSN 3950-01-417-5906
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3950-01-417-5906
Technical Data | NSN 3950-01-417-5906
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | POWERED |
| PRIME MOVER TYPE | PNEUMATIC MOTOR |
| POWER DRIVE OPERATING PRESSURE | 90.0 POUNDS PER SQUARE INCH GAGE |
| LOAD LIMIT AT SELECTED SPEED AND DRUM LOCATION | 6600.0 POUNDS SINGLE SPEED FIRST DRUM |
| HOOK QUANTITY | 1 |
| LOAD ELEMENT QUANTITY PER HOOK | 1 |
| CENTER TO CENTER DISTANCE BETWEEN LOAD ELEMENTS | 2.250 FEET NOMINAL |
| SUSPENSION MOUNTING METHOD | TROLLEY |

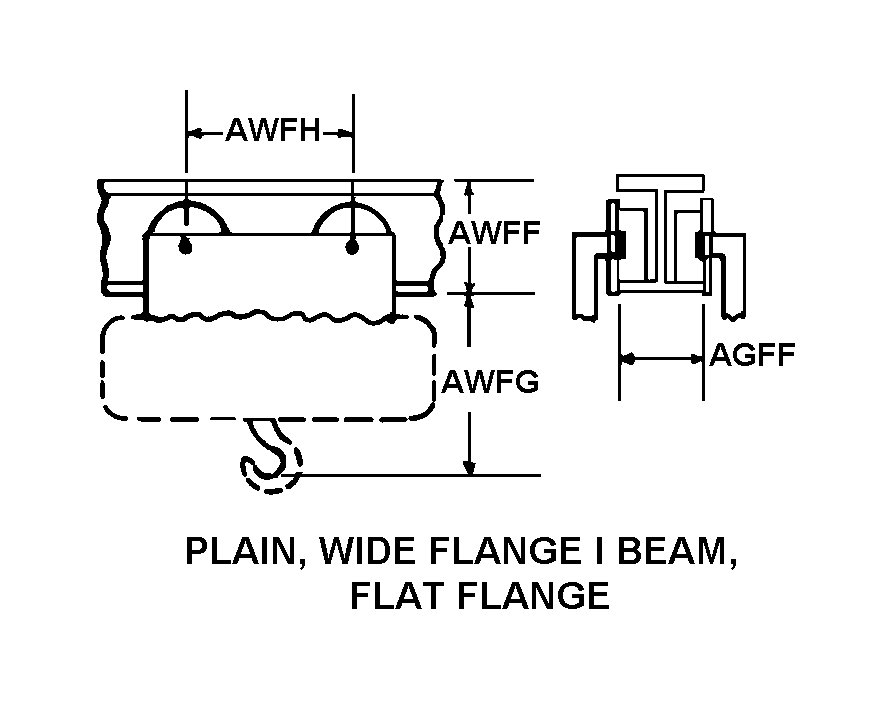

| TROLLEY SUSPENSION STYLE | 5 PLAIN, WIDE FLANGE I BEAM, FLAT FLANGE |
| TRACK HEIGHT | 120.000 INCHES MAXIMUM |
| TRACK UNDERSIDE DISTANCE TO LOAD HOOK BEARING SURFACE IN FULLY RAISED POSITION | 27.250 INCHES NOMINAL |
| WHEEL CENTER TO CENTER DISTANCE | 12.000 INCHES NOMINAL |
| TROLLEY TYPE | MOTOR DRIVEN |
| MAXIMUM TRAVERSING SPEED | 57.0 FEET PER MINUTE |
| MAXIMUM LIFT HEIGHT | 10.000 FEET |
| MAXIMUM LOAD RATING | 6600.0 POUNDS |
| MOUNTING POSITION | RIGHT ANGLE |
| SPECIAL FEATURES | NAVY WEAPONS SYSTEMS CODE,JK,WASP CLASS LHD |
Restrictions/Controls & Freight Information | NSN 3950-01-417-5906
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 117040 | CHAIN/PULLEY HOISTS/BLOCKS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3950-01-417-5906
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
