NSN 3990-00-435-4100 00-435-4100, 004354100
Product Details | TOTE BOX
3990-00-435-4100 A reusable box, usually rectangular in shape which may have a lid. It may be collapsible and capable of being nested and/or stacked. It is not compartmented but may have dividers or insert tray(s). It is designed for manual material handling operations to facilitate the collection and movement of miscellaneous items within warehouses, maintenance shops, and stores. Excludes BOX (1), SHIPPING. See also BOX (3), SMALL PARTS.
Part Alternates: 3990-00-435-4100, 00-435-4100, 3990004354100, 004354100
Materials Handling Equipment | Miscellaneous Materials Handling Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 26 MAR 1969 | 00-435-4100 | 27388 ( BOX, TOTE ) |

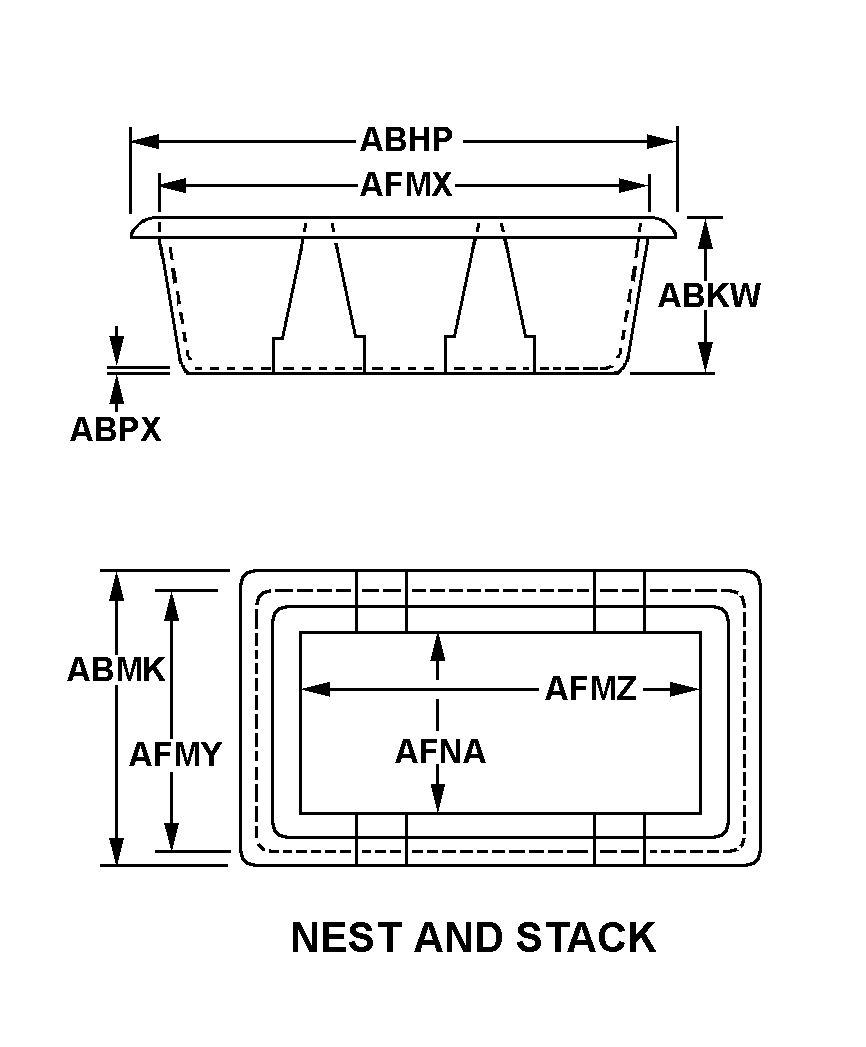

Drawings & Photos | NSN 3990-00-435-4100
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3990-00-435-4100
Technical Data | NSN 3990-00-435-4100
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | E7 NEST AND STACK |
| OVERALL LENGTH | 11.750 INCHES NOMINAL |
| OVERALL WIDTH | 5.750 INCHES NOMINAL |
| OVERALL HEIGHT | 2.500 INCHES NOMINAL |
| TOP INSIDE LENGTH | 11.000 INCHES NOMINAL |
| TOP INSIDE WIDTH | 5.000 INCHES NOMINAL |
| BOTTOM INSIDE LENGTH | 9.500 INCHES NOMINAL |
| BOTTOM INSIDE WIDTH | 4.250 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.023 INCHES NOMINAL |
| MATERIAL | PLASTIC |
| EXTERIOR COLOR | GRAY |
| ASSEMBLY FORM | SET-UP |
| HANDLING FACILITY TYPE | LIFTING EYES |
| ASSEMBLY METHOD | PLASTIC STAYED |
| STACKING FEATURE | YES |
| NESTING FEATURE | YES |
| SPECIAL FEATURES | FINGER GRIP LIP |
Restrictions/Controls & Freight Information | NSN 3990-00-435-4100
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
