NSN 4010-00-290-0911 42C14856300, 42C14856-300, 00-290-0911
Product Details | WELDED CHAIN
4010-00-290-0911 A series of like size welded metal links interconnected to form a flexible continuation of the links. This does not include chain with attachments or terminations. See also CHAIN, STUD LINK.
Part Alternates: 42C14856300, 42C14856-300, 4010-00-290-0911, 00-290-0911, 4010002900911, 002900911
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1963 | 00-290-0911 | 02618 ( CHAIN, WELDED ) |
Drawings & Photos | NSN 4010-00-290-0911
Cross Reference | NSN 4010-00-290-0911
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 42C14856-300 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4010-00-290-0911
Technical Data | NSN 4010-00-290-0911
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |

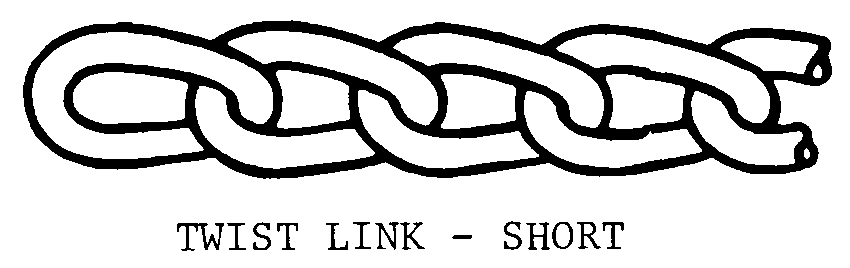

| STYLE DESIGNATOR | C25 TWIST LINK - SHORT |
| DIAMETER | 0.109 INCHES NOMINAL STOCK |
| BREAKING STRENGTH | 620.000 POUNDS NOMINAL |
| SPECIAL FEATURES | 25 LINKS PER FOOT 10 LB WT PER100 FEET |
Restrictions/Controls & Freight Information | NSN 4010-00-290-0911
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094050 | CHAINS NOI I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
