NSN 4010-00-684-6330 00-684-6330, 006846330
Product Details | WIRE ROPE
4010-00-684-6330 Three or more metallic strands twisted helically together around a fiber, metallic, or combination wire and fiber core. Excludes items rated for electric current carrying applications.
Part Alternates: 4010-00-684-6330, 00-684-6330, 4010006846330, 006846330
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1963 | 00-684-6330 | 30295 ( ROPE, WIRE ) |

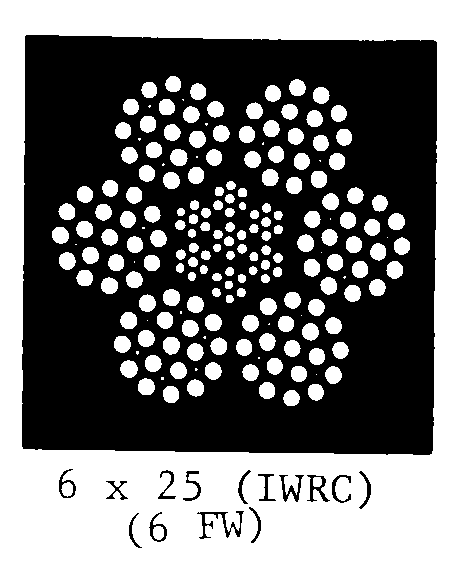

Drawings & Photos | NSN 4010-00-684-6330
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4010-00-684-6330
Technical Data | NSN 4010-00-684-6330
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL MILD PLOW CORE STEEL IMPROVED PLOW STRAND |
| CORE CONSTRUCTION | FIBER AND WIRE |
| STYLE DESIGNATOR | A74 6 X 25 |
| LAY METHOD | RIGHT REGULAR ALL LAYERS |
| PREFABRICATION FORM | PREFORMED |
| DIAMETER | 0.250 INCHES NOMINAL ROPE |
| BREAKING STRENGTH | 4780.000 POUNDS MINIMUM |
Restrictions/Controls & Freight Information | NSN 4010-00-684-6330
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
