NSN 4020-01-308-6122 M50401C, M5040-1C, MILC5040
Product Details | FIBROUS CORD
4020-01-308-6122 A braided cordage item (or twisted fiber glass item) of any diameter with or without a core (includes natural or synthetic fibers). Excludes items with fittings; LINE (as modified). See also TWINE, FIBROUS and ROPE, FIBROUS.
Part Alternates: M50401C, M5040-1C, MILC5040, MIL-C-5040, 4020-01-308-6122, 01-308-6122, 4020013086122, 013086122
Rope, Cable, Chain, and Fittings | Fiber Rope, Cordage, and Twine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 OCT 1989 | 01-308-6122 | 31132 ( CORD, FIBROUS ) |

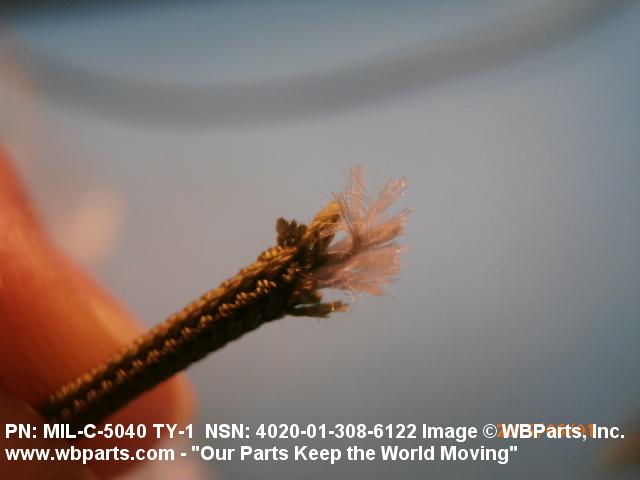

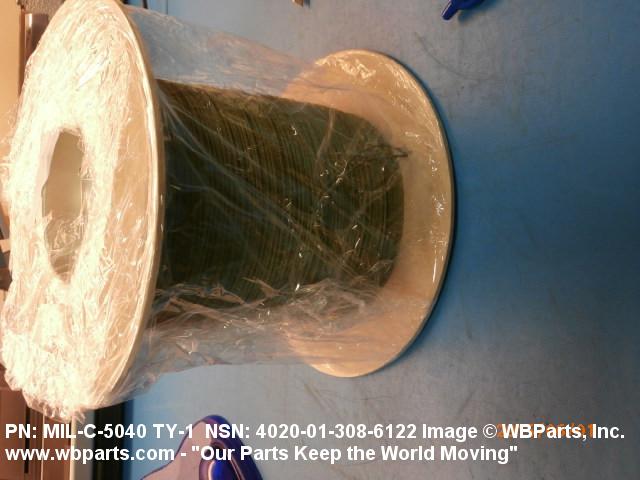

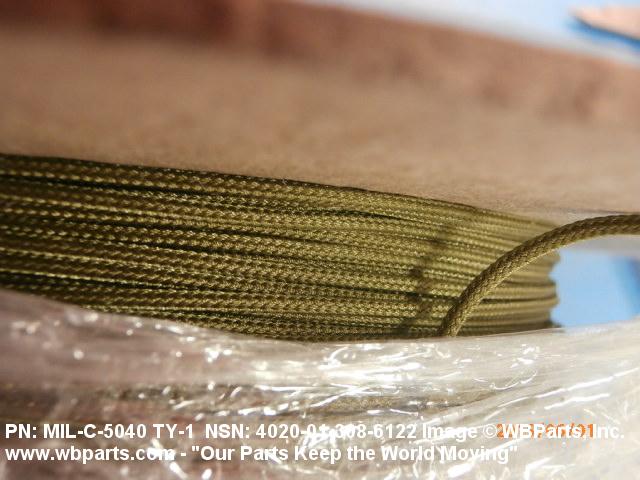

Drawings & Photos | NSN 4020-01-308-6122
Demand History | NSN 4020-01-308-6122
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILC5040 | 2024-06-158 | 3 | Canada |
| 4020-01-308-6122 | 2024-04-94 | 96 | DIBBS |
| 4020-01-308-6122 | 2023-10-291 | 49 | DIBBS |
| M50401C | 2023-09-249 | 100 | US |
| M50401C | 2023-08-226 | 1 | US |
| 4020-01-308-6122 | 2023-08-226 | 1 | US |
| MILC5040 | 2021-06-166 | 4 | US |
| 4020-01-308-6122 | 2020-11-328 | 1 | United States |
| MILC5040 | 2020-03-70 | 2 | US |
| 4020-01-308-6122 | 2018-11-330 | 2000 | Denmark |
| MILC5040 | 2018-10-302 | 15 | AE |
| 4020-01-308-6122 | 2015-08-224 | 91 | DIBBS |
| 4020-01-308-6122 | 2015-07-190 | 91 | DIBBS |
| MILC5040 | 2014-06-178 | 13 | United States |
| 4020-01-308-6122 | 2014-03-62 | 1 | Denmark |
| 4020-01-308-6122 | 2013-12-336 | 1 | Denmark |
| 4020-01-308-6122 | 2013-02-43 | 1 | Denmark |
| M50401C | 2011-08-243 | 20 | US |
| MILC5040 | 2011-03-87 | 1 | IT |
| MILC5040 | 2011-03-75 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4020-01-308-6122
Related Products | NSN 4020-01-308-6122
Technical Data | NSN 4020-01-308-6122
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | POLYAMIDE NYLON, MIL-C-5040 OVERALL |
| STRAND QUANTITY | 4 OR 7 |
| BREAKING STRENGTH | 95.0 POUNDS MINIMUM |
| FABRICATION METHOD | BRAIDED |
| ENVIRONMENTAL PROTECTION | HEAT RESISTANT AND LIGHT RESISTANT |
| COLOR | OLIVE DRAB, US ARMY, 7 |
| LENGTH PER WEIGHT | 950.000 FEET PER POUND MINIMUM |
| ISSUE FORM | SPOOL |
| LENGTH | 1500.000 FEET NOMINAL |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-5040 GOVERNMENT SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-5040 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M5040-1C |
Restrictions/Controls & Freight Information | NSN 4020-01-308-6122
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 053390 | CORD/CORDAGE/ROPE/ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4020-01-308-6122
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 SL : Spool |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 SL : Spool |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 SL : Spool |
