Product Details | LACING AND TYING TAPE

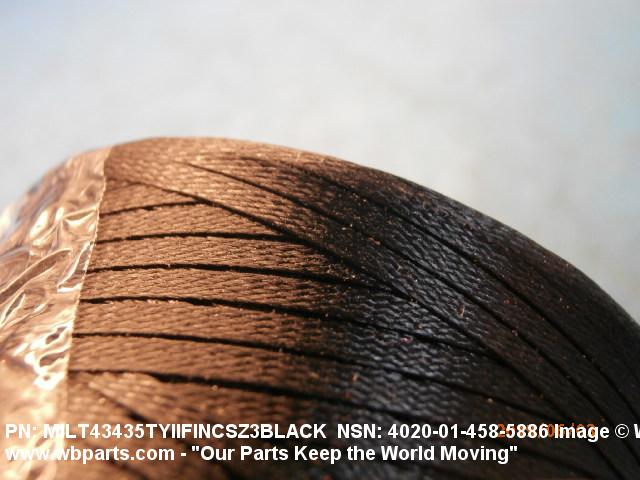

4020-01-458-5886 A narrow textile material fabricated on a braiding machine and treated with penetrating wax or similar substance which enters the interstices of the material from surface to surface.
Part Alternates: AA52081C3, AA52081-C-3, SM17020224, SM1702-02-24, MILT43435TYIIFINCSZ3BLACK, 10179148 , 4020-01-458-5886, 01-458-5886, 4020014585886, 014585886
Rope, Cable, Chain, and Fittings | Fiber Rope, Cordage, and Twine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 SEP 1998 | 01-458-5886 | 24314 ( TAPE, LACING AND TYING ) |
Drawings & Photos | NSN 4020-01-458-5886
Demand History | NSN 4020-01-458-5886
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4020-01-458-5886 | 2019-05-21 | 3 | United States |
| AA52081C3 | 2018-05-29 | 14 | US |
| 4020-01-458-5886 | 2015-07-29 | 346 | DIBBS |
| 4020-01-458-5886 | 2011-12-29 | 184 | DIBBS |
| 4020-01-458-5886 | 2011-04-22 | 2 | United States |
| 4020-01-458-5886 | 2010-10-01 | 95 | DIBBS |
| 4020-01-458-5886 | 2010-07-23 | 103 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4020-01-458-5886
Related Products | NSN 4020-01-458-5886
4020-01-458-6163, 4020-01-458-6176, 4020-01-459-1804, 4020-01-460-1097, 4020-01-460-6607
Technical Data | NSN 4020-01-458-5886
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | PLASTIC, POLYESTER, MIL-T-43435, TYPE 2 OVERALL |
| BREAKING STRENGTH | 50.0 POUNDS MINIMUM |
| IMPREGNATION MATERIAL | RUBBER, SYNTHETIC |
| COLOR | BLACK |

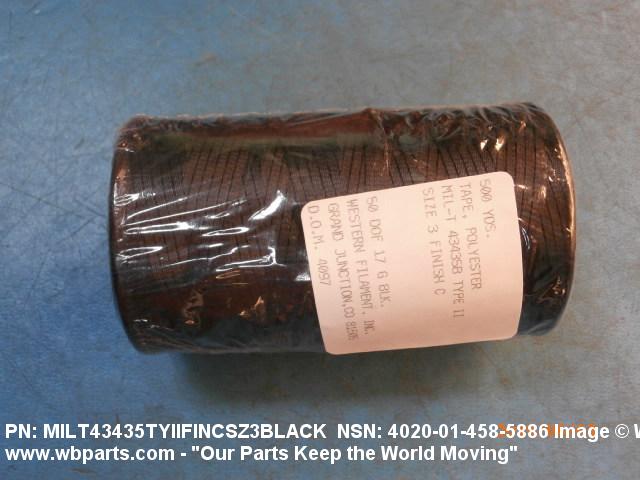

| ISSUE FORM | SPOOL |
| LENGTH | 500.000 YARDS NOMINAL |

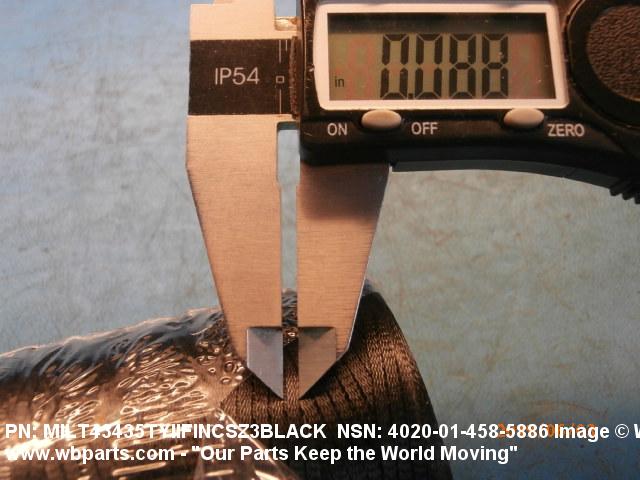

| OVERALL WIDTH | 0.090 INCHES NOMINAL |
| THICKNESS | 0.012 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND C FINISH AND 3 SIZE |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILT43435TYIIFINCSZ3BLACK |
Restrictions/Controls & Freight Information | NSN 4020-01-458-5886
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197800 | WIRE GOODS:BRAID/TAPE STL WOVEN |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4020-01-458-5886
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
