NSN 4030-00-169-8701 6720110581, 6720-11058-1, 00-169-8701
Product Details | S CHAIN HOOK
4030-00-169-8701 A wire formed in the shape of the letter S, used to attach wire chain to other objects.
Part Alternates: 6720110581, 6720-11058-1, 4030-00-169-8701, 00-169-8701, 4030001698701, 001698701
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 25 AUG 1972 | 00-169-8701 | 02634 ( HOOK, CHAIN, S ) |
Drawings & Photos | NSN 4030-00-169-8701
Cross Reference | NSN 4030-00-169-8701
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6720-11058-1 | 14590 | VERIDIAN ENGINEERING INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4030-00-169-8701
Related Products | NSN 4030-00-169-8701
Technical Data | NSN 4030-00-169-8701
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |

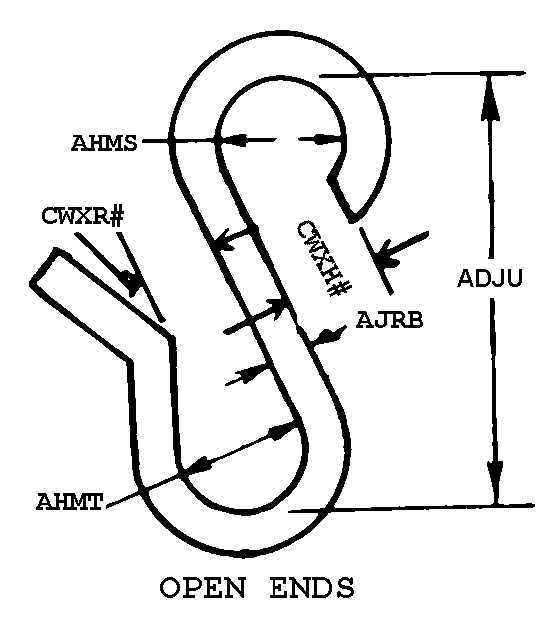

| STYLE DESIGNATOR | 83 OPEN ENDS |
| INSIDE LENGTH | 3.385 INCHES MINIMUM AND 3.505 INCHES MAXIMUM |
| UPPER LOOP INSIDE DIAMETER | 1.000 INCHES NOMINAL |
| LOWER LOOP INSIDE DIAMETER | 1.130 INCHES NOMINAL |
| MATERIAL DIAMETER | 0.162 INCHES NOMINAL |
| SPECIAL FEATURES | TOP LOOP ROTATED CLOCKWISE 45 DEG PORM 5 |
| MANUFACTURERS CODE | 14590 |
| DESIGN CONTROL REFERENCE | 6720-11058-1 |
Restrictions/Controls & Freight Information | NSN 4030-00-169-8701
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
