NSN 4030-00-286-2675 S20605921734, S20605-921734, S2605
Product Details | SHACKLE
4030-00-286-2675 An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified).
Part Alternates: S20605921734, S20605-921734, S2605, S2605921734PC4T06, S2605-921734PC4T06, 4030-00-286-2675, 00-286-2675, 4030002862675, 002862675
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1963 | 00-286-2675 | 11074 ( SHACKLE ) |
Drawings & Photos | NSN 4030-00-286-2675
Demand History | NSN 4030-00-286-2675
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4030-00-286-2675 | 2024-01-21 | 1 | DIBBS |
| 4030-00-286-2675 | 2023-09-264 | 1 | DIBBS |
| 4030-00-286-2675 | 2023-03-75 | 1 | DIBBS |
| 4030-00-286-2675 | 2022-07-205 | 1 | DIBBS |
| 4030-00-286-2675 | 2021-03-66 | 1 | DIBBS |
| 4030-00-286-2675 | 2016-04-116 | 1 | DIBBS |
| 4030-00-286-2675 | 2014-07-206 | 4 | DIBBS |
| 4030-00-286-2675 | 2014-07-198 | 4 | DIBBS |
| 4030-00-286-2675 | 2010-06-176 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4030-00-286-2675
Technical Data | NSN 4030-00-286-2675
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | PAINT |

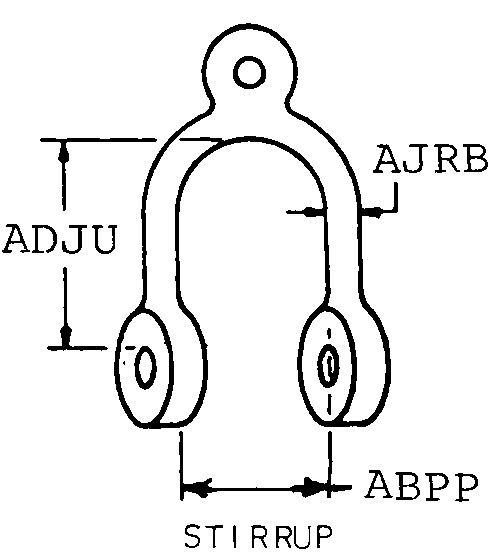

| STYLE DESIGNATOR | 115 STIRRUP |
| OPENING WIDTH | 7.000 INCHES NOMINAL |
| INSIDE LENGTH | 7.000 INCHES NOMINAL |
| MATERIAL DIAMETER | 1.125 INCHES NOMINAL |
| BREAKING STRENGTH | 98000.0 POUNDS NOMINAL |
| CLOSURE HEAD STYLE | 6 OVAL COUNTERSINK |
| END CONDITION | PLAIN |
| LOCKING DEVICE TYPE | COTTER PIN |
| FEATURES PROVIDED | FORELOCK PINHOLE |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | S2605-921734PC4T06 |
Restrictions/Controls & Freight Information | NSN 4030-00-286-2675
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4030-00-286-2675
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
