NSN 4030-00-355-4831 222246PC14T017, 00-355-4831, 003554831
Product Details | PELICAN HOOK
4030-00-355-4831 A metal hook with a hinged point and with a sliding link, ring, bail, or similar locking device, to secure the point to the body in order to close the throat. The body may be designed of a single piece or it may consist of link(s). When desired, the point may be released to swing outward, thereby freeing the engaged item(s). Excludes HOOK, RELEASE.
Part Alternates: 222246PC14T017, 4030-00-355-4831, 00-355-4831, 4030003554831, 003554831
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1963 | 00-355-4831 | 11144 ( HOOK, PELICAN ) |
Drawings & Photos | NSN 4030-00-355-4831
Cross Reference | NSN 4030-00-355-4831
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 222246PC14T017 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4030-00-355-4831
Technical Data | NSN 4030-00-355-4831
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |

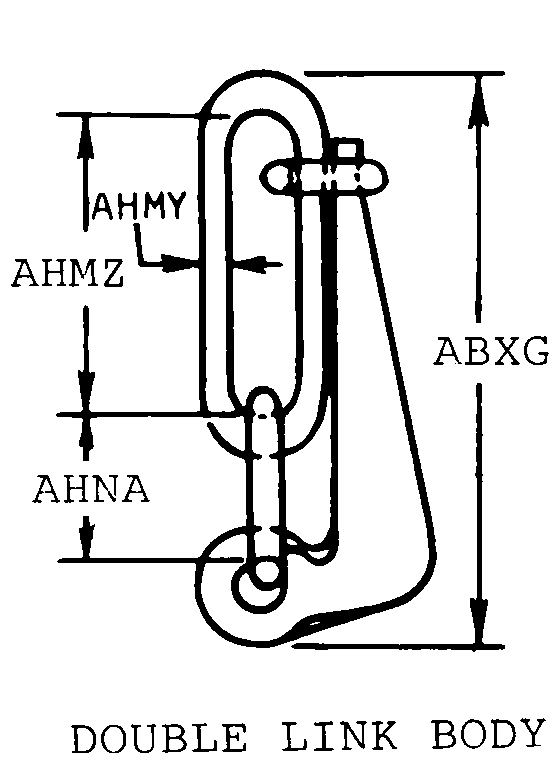

| STYLE DESIGNATOR | 76 DOUBLE LINK BODY |
| OVERALL LENGTH | 5.438 INCHES NOMINAL |
| MAIN LINK STOCK DIAMETER | 0.250 INCHES NOMINAL |
| MAIN LINK INSIDE LENGTH | 3.750 INCHES NOMINAL |
| HINGE LINK INSIDE LENGTH | 0.812 INCHES NOMINAL |
| ACCOMMODATED MATERIAL DIAMETER | 0.250 INCHES NOMINAL |
| FABRICATION METHOD | FORGED |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | 222246PC14T017 |
Restrictions/Controls & Freight Information | NSN 4030-00-355-4831
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095370 | HOOKS NOI I/S GALVANIZE/PLAIN ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4030-00-355-4831
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
