NSN 4030-00-452-2568 MS518441, MS51844-1, 10110513
Product Details | WIRE ROPE SWAGING SLEEVE
4030-00-452-2568 A compression fitting designed to make a permanent eye, lap, or running splice on an item.
Part Alternates: MS518441, MS51844-1, 10110513 , 4030-00-452-2568, 00-452-2568, 4030004522568, 004522568
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 23 FEB 1972 | 00-452-2568 | 16283 ( SWAGING SLEEVE, WIRE ROPE ) |

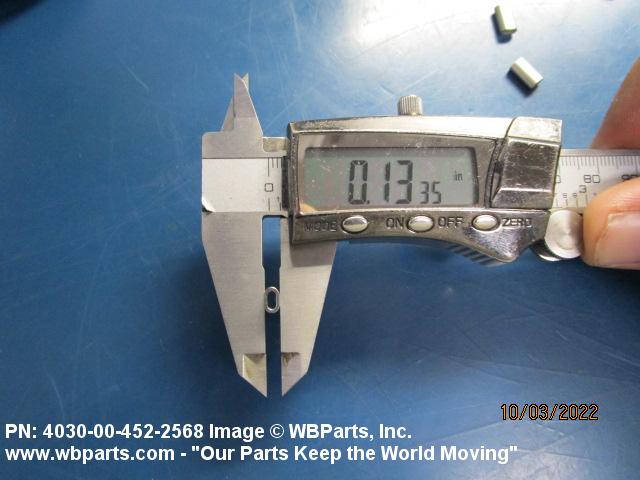

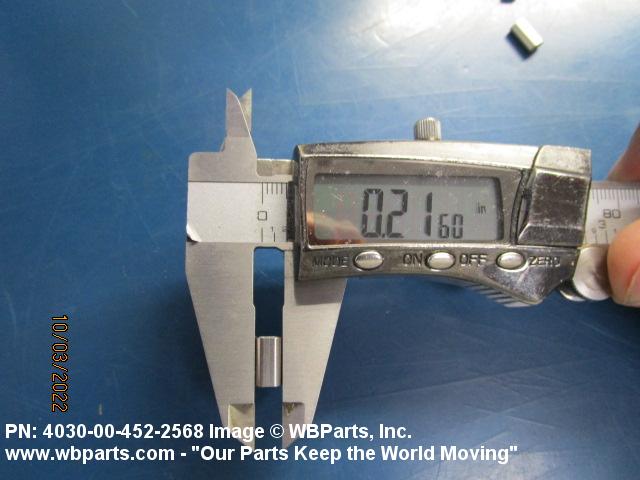

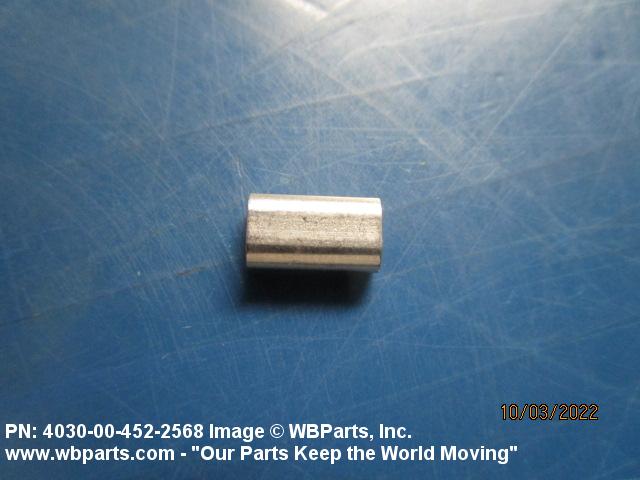

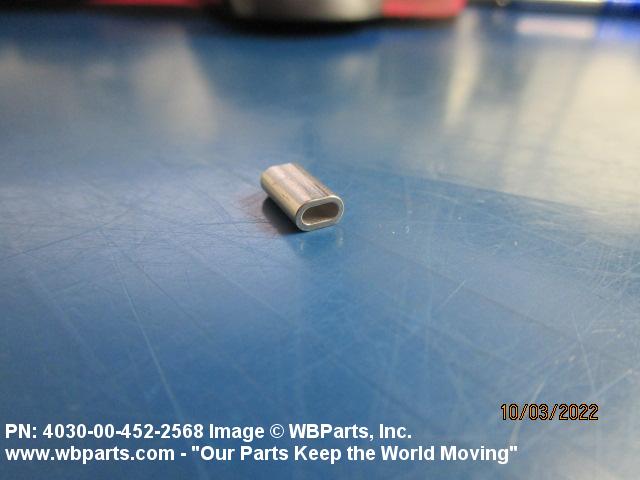

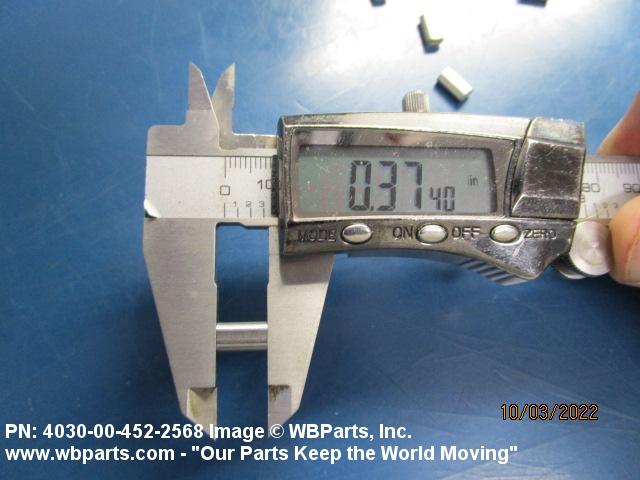

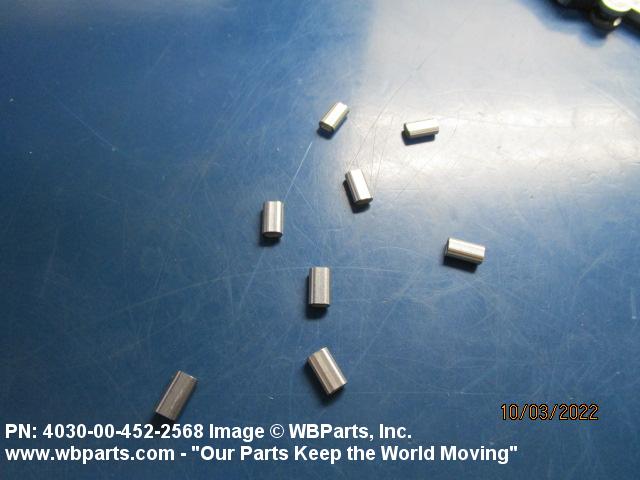

Drawings & Photos | NSN 4030-00-452-2568
Demand History | NSN 4030-00-452-2568
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4030-00-452-2568 | 2022-09-257 | 8 | United States |
| 4030-00-452-2568 | 2022-06-160 | 8 | United States |
| 4030-00-452-2568 | 2021-04-102 | 12 | US |
| 4030-00-452-2568 | 2021-04-96 | 12 | BR |
| 4030-00-452-2568 | 2019-05-141 | 6000 | United States |
| 4030-00-452-2568 | 2018-01-11 | 200 | Brazil |
| MS51844-1 | 2016-06-154 | 2 | United States |
| MS518441 | 2014-09-273 | 300 | US |
| MS51844-1 | 2014-04-104 | 100 | Brazil |
| MS518441 | 2013-04-120 | 100 | US |
| 4030-00-452-2568 | 2013-04-95 | 16 | United States |
| MS518441 | 2012-06-156 | 612 | US |
| MS518441 | 2012-05-143 | 4 | US |
| MS518441 | 2010-04-118 | 1 | US |
| MS518441 | 2010-01-11 | 1310 | US |
Cross Reference | NSN 4030-00-452-2568
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS51844-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4030-00-452-2568
Related Products | NSN 4030-00-452-2568
Technical Data | NSN 4030-00-452-2568
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 OR STEEL COMP 305 |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A249 ASSN STD ALL MATERIAL RESPONSES OR ASTM A269 ASSN STD 1ST MATERIAL RESPONSE OR ASTM A511 ASSN STD 2ND MATERIAL RESPONSE |
| SURFACE TREATMENT | PASSIVATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | 160 FIGURE 8 |
| OVERALL WIDTH | 0.190 INCHES NOMINAL |
| OVERALL LENGTH | 0.380 INCHES NOMINAL |
| ACCOMMODATED MATERIAL DIAMETER | 0.062 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51844-1 |
Restrictions/Controls & Freight Information | NSN 4030-00-452-2568
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4030-00-452-2568
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
