NSN 4030-00-629-2459 10280611, 00-629-2459, 006292459
Product Details | ANGLE CHAIN FASTENER
4030-00-629-2459 A strip of metal with a hole at either end. One is for mounting on flat surface, the other end is elevated upward for attaching the end termination(s) of another item.
Part Alternates: 10280611, 4030-00-629-2459, 00-629-2459, 4030006292459, 006292459
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 00-629-2459 | 07726 ( CHAIN FASTENER, ANGLE ) |

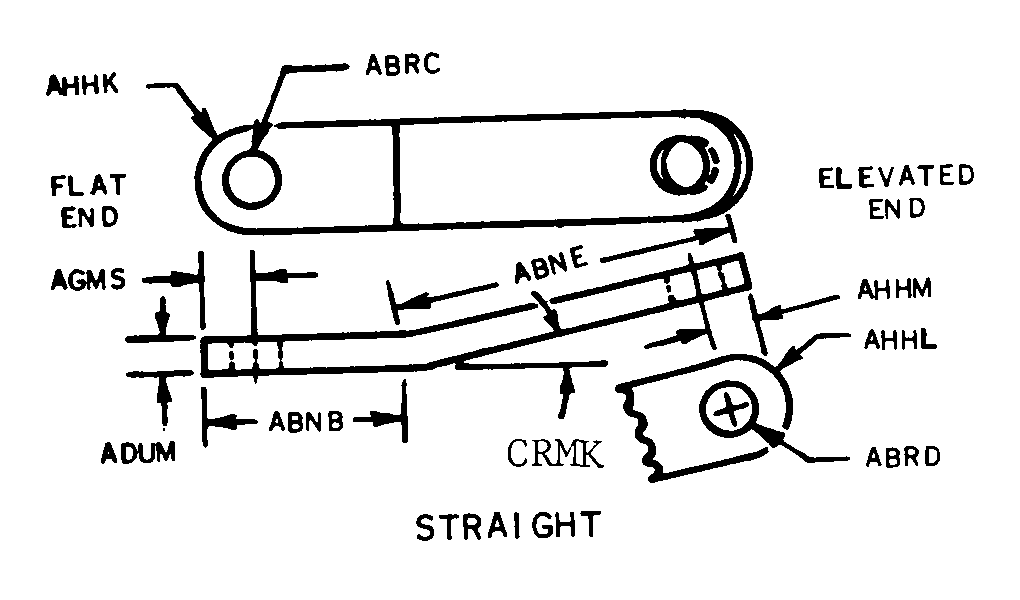

Drawings & Photos | NSN 4030-00-629-2459
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4030-00-629-2459
Technical Data | NSN 4030-00-629-2459
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 |
| STYLE DESIGNATOR | 30 STRAIGHT |
| FIRST FLAT LENGTH | 0.620 INCHES NOMINAL |
| SECOND FLAT LENGTH | 0.500 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.261 INCHES MINIMUM AND 0.272 INCHES MAXIMUM |
| SECOND HOLE DIAMETER | 0.156 INCHES MINIMUM AND 0.162 INCHES MAXIMUM |
| OVERALL THICKNESS | 0.063 INCHES NOMINAL |
| HOLE CENTER TO FLAT END LENGTH | 0.210 INCHES MINIMUM AND 0.230 INCHES MAXIMUM |
| FLAT END RADIUS | 0.220 INCHES NOMINAL |
| ELEVATED END RADIUS | 0.220 INCHES NOMINAL |
| HOLE CENTER TO ELEVATED END LENGTH | 0.220 INCHES NOMINAL |
| ANGLE | 30.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 10280611 |
Restrictions/Controls & Freight Information | NSN 4030-00-629-2459
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
