NSN 4030-00-640-9925 MILA3777, 1040S, 00-640-9925
Product Details | GUY ANCHOR
4030-00-640-9925 An anchor which may be any one of several designs, such as a ribbed cone, an assembly of expanding blade or plates, or a helical balde or spring. The item must have either an integral driving rod or accommodations for affixing a driving rod which may not be included. It may include a cable assembly which facilitates installation and is an integral part of the item. Does not include guy wire(s) or rope(s). Excludes POST, SCREW METAL.
Part Alternates: MILA3777, 1040S, 4030-00-640-9925, 00-640-9925, 4030006409925, 006409925
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 00-640-9925 | 02939 ( ANCHOR, GUY ) |
Drawings & Photos | NSN 4030-00-640-9925
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4030-00-640-9925
Technical Data | NSN 4030-00-640-9925
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | PAINT |
| DESIGN TYPE | PLATE |
| OVERALL LENGTH | 40.000 INCHES NOMINAL |
| OVERALL WIDTH | 10.000 INCHES NOMINAL |
| OPEN POSITION HOLDING AREA | 400.000 SQUARE INCHES NOMINAL |
| ROD TYPE | SEPARATE |

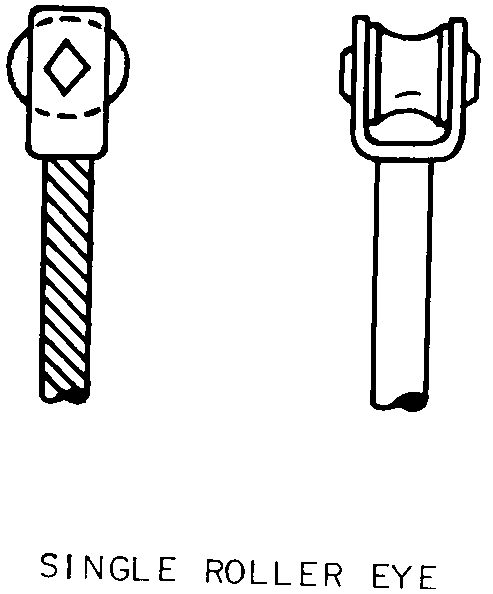

| UPPER END STYLE | 8 SINGLE ROLLER EYE |
| LOWER END STYLE | 21 CONE |
| SHANK LENGTH | 96.000 INCHES NOMINAL |
| SHANK OUTSIDE DIAMETER | 1.000 INCHES NOMINAL |
| SPECIAL FEATURES | ZINC COATING ON ANCHOR RODS,NOM SIZE MARKED ON ANCHOR RODS |
| NONDEFINITIVE SPEC/STD DATA | 2 ANCHOR TYPE AND 3 ANCHOR ROD TYPE AND A ANCHOR ROD CLASS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILA3777 |
Restrictions/Controls & Freight Information | NSN 4030-00-640-9925
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
