NSN 4030-00-833-5034 00-833-5034, 008335034
Product Details | SHACKLE
4030-00-833-5034 An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified).
Part Alternates: 4030-00-833-5034, 00-833-5034, 4030008335034, 008335034
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 00-833-5034 | 11074 ( SHACKLE ) |
Drawings & Photos | NSN 4030-00-833-5034
Cross Reference | NSN 4030-00-833-5034
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G-215-1/2 IN | 75535 | CROSBY GROUP INC DBA NATIONAL SWAGE |
| G215-1-2 | 75535 | CROSBY GROUP INC DBA NATIONAL SWAGE |
| MILS24214 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NAS1044-8 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| RR-C-271 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4030-00-833-5034
Technical Data | NSN 4030-00-833-5034
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |
| STYLE DESIGNATOR | 111 CHAIN |
| OPENING WIDTH | 0.812 INCHES NOMINAL |
| INSIDE LENGTH | 1.625 INCHES NOMINAL |
| MATERIAL DIAMETER | 0.500 INCHES NOMINAL |
| BREAKING STRENGTH | 14150.0 POUNDS NOMINAL |

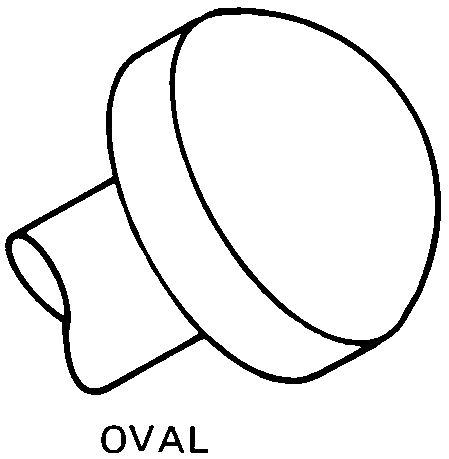

| CLOSURE HEAD STYLE | 4 OVAL |
| END CONDITION | PLAIN |
| LOCKING DEVICE TYPE | COTTER PIN |
| FEATURES PROVIDED | FORELOCK PINHOLE |
| NONDEFINITIVE SPEC/STD DATA | 4 TYPE AND 5 CLASS |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | RRC271 |
Restrictions/Controls & Freight Information | NSN 4030-00-833-5034
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
