NSN 4030-00-897-7720 FL170111GB, FL-1701-11-G-B, 00-897-7720
Product Details | HOIST HOOK
4030-00-897-7720 A strongly constructed metal item having a relatively narrow, shallow throat. It may or may not have a safety throat closure. Excludes HOOK, LOGGING LINE and HOOK, CARGO.
Part Alternates: FL170111GB, FL-1701-11-G-B, 4030-00-897-7720, 00-897-7720, 4030008977720, 008977720
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 02 JUL 1985 | 00-897-7720 | 11154 ( HOOK, HOIST ) |
Drawings & Photos | NSN 4030-00-897-7720
Cross Reference | NSN 4030-00-897-7720
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FL-1701-11-G-B | 81340 | UNITED STATES COAST GUARD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4030-00-897-7720
Technical Data | NSN 4030-00-897-7720
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8620H |
| STYLE DESIGNATOR | 67 REGULAR |

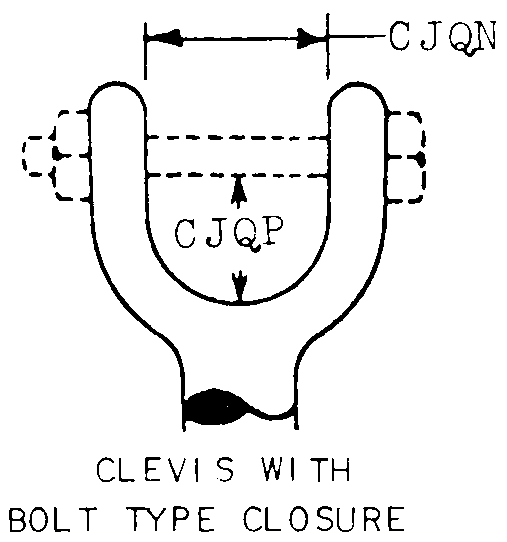

| CONNECTION STYLE | 7 CLEVIS WITH BOLT TYPE CLOSURE |
| CONNECTION INSIDE WIDTH | 1.250 INCHES NOMINAL |
| CONNECTION INSIDE LENGTH | 1.250 INCHES NOMINAL |
| CONNECTION TO BODY RELATIONSHIP | PARALLEL |
| SPECIAL FEATURES | ITEM CONSIST OF 1 EA SLING HOOK WITH LANYARD[ LUG AND LINE REENING DEVICE[ 2 EA REMOVABLE LINK[ 1 EA SWIVEL[ 2 EA PINS |
| III END ITEM IDENTIFICATION | USED ON CARGO AND BUOY HANDLING SYSTEM ONBOARD VARIOUS C.G. VESSELS |
| III UNPACKAGED UNIT WEIGHT | 5.00 POUNDS |
Restrictions/Controls & Freight Information | NSN 4030-00-897-7720
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
