NSN 4130-00-106-5727 1085A76, 1085A76G02, 00-106-5727
Product Details | LIQUID REFRIGERANT RECEIVER
4130-00-106-5727 An item used on the high pressure side of a refrigerant compressor as a reservoir for the liquid refrigerant and provides a positive seal to prevent the escape of uncondensed gases to the expansion values. Excludes ACCUMULATOR, REFRIGERANT.
Part Alternates: 1085A76, 1085A76G02, 4130-00-106-5727, 00-106-5727, 4130001065727, 001065727
Refrigeration, Air Conditioning, and Air Circulating Equipment | Refrigeration and Air Conditioning Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 17 JUL 1968 | 00-106-5727 | 15767 ( RECEIVER, LIQUID REFRIGERANT ) |
Drawings & Photos | NSN 4130-00-106-5727
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4130-00-106-5727
Technical Data | NSN 4130-00-106-5727
| Characteristic | Specifications |
|---|---|
| MOUNTING POSITION | VERTICAL |
| MEDIA FOR WHICH DESIGNED | ANY ACCEPTABLE |
| REFRIGERANT CAPACITY | ANY ACCEPTABLE |
| MINIMUM CAPACITY | ANY ACCEPTABLE |
| REFRIGERANT TEMP AT MINIMUM CAPACITY IN DEG FAHRENHEIT | ANY ACCEPTABLE |
| OVERALL LENGTH | 15.000 INCHES NOMINAL |
| SHELL OUTSIDE DIAMETER | 6.000 INCHES |
| MATERIAL | STEEL |
| END CONNECTION TYPE AND LOCATION | UNTHREADED INTERNAL TUBE FIRST END |
| CONNECTION SPECIAL DESIGN | BULKHEAD |

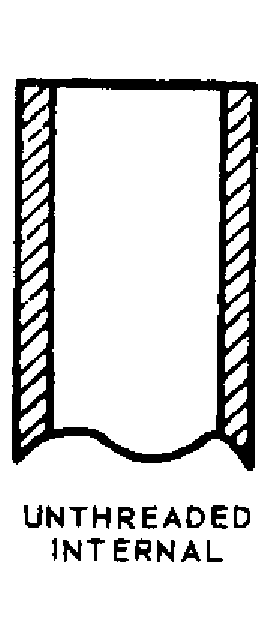

| STYLE DESIGNATOR | A27 UNTHREADED INTERNAL |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.125 INCHES NOMINAL |
| LEG LENGTH | 0.900 INCHES NOMINAL |
| RESTRICTION PASSAGE INSIDE DIAMETER | 1.125 INCHES NOMINAL |
| SHUTOFF VALVE | NOT PROVIDED |
| EQUALIZING CONNECTION FEATURE | NOT INCLUDED |
| DRAIN CONNECTION | NOT INCLUDED |
| SAFETY PLUG | NOT INCLUDED |
| LIQUID LEVEL INDICATOR | NOT INCLUDED |
| MANUFACTURERS CODE | 61510 |
| DESIGN CONTROL REFERENCE | 1085A76G02 |
Restrictions/Controls & Freight Information | NSN 4130-00-106-5727
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4130-00-106-5727
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
