NSN 4130-00-142-0605 N7PC515B, N8PC515B, N9PC515B
Product Details | PISTON PIN
4130-00-142-0605 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.20528050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps
Part Alternates: N7PC515B, N8PC515B, N9PC515B, T515B, 21510, 4607, 4130-00-142-0605, 00-142-0605, 4130001420605, 001420605
Refrigeration, Air Conditioning, and Air Circulating Equipment | Refrigeration and Air Conditioning Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 01 JAN 1963 | 00-142-0605 | 16414 ( PIN, PISTON ) |
Drawings & Photos | NSN 4130-00-142-0605
Cross Reference | NSN 4130-00-142-0605
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 21510 | 59431 | TECUMSEH PRODUCTS CO |
| 21510 | 93480 | BLISSFIELD MANUFACTURING COMPANY |
| 4607 | 59431 | TECUMSEH PRODUCTS CO |
| 4607 | 95535 | MARION DIV OF TECUMSEH PRODUCTS CO |
| N7PC515B | 59431 | TECUMSEH PRODUCTS CO |
| N8PC515B | 59431 | TECUMSEH PRODUCTS CO |
| N9PC515B | 59431 | TECUMSEH PRODUCTS CO |
| T515B | 59431 | TECUMSEH PRODUCTS CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4130-00-142-0605
Technical Data | NSN 4130-00-142-0605
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, FED STD 66, AISI/SAE 1016 |
| METALLIC HARDNESS RATING | 63.0 MINIMUM ROCKWELL C |
| CASEHARDENING INDICATOR | CASEHARDENED |

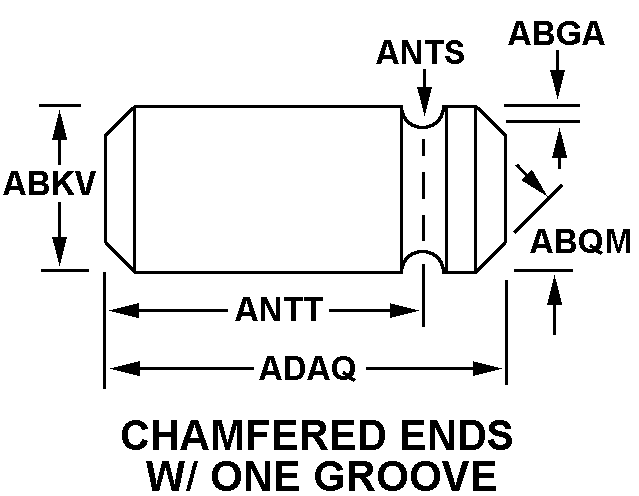

| BODY STYLE | 9A CHAMFERED ENDS W/ONE GROOVE |
| GROOVE DEPTH | 0.0310 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.49940 INCHES MINIMUM AND 0.49960 INCHES MAXIMUM |
| BODY LENGTH | 1.2970 INCHES MINIMUM AND 1.3070 INCHES MAXIMUM |
| RADIAL GROOVE RADIUS | 0.031 INCHES NOMINAL |
| DISTANCE FROM END TO GROOVE CENTER | 0.6560 INCHES NOMINAL |
| END CHAMFER ANGLE IN DEG | 30.0 |
| BORE STYLE | 1 INSIDE CHAMFER STRAIGHT-THRU BORE |
| BORE DIAMETER | 0.1910 INCHES MINIMUM AND 0.1935 INCHES MAXIMUM |
| COUNTERSINK ANGLE IN DEG | ANY ACCEPTABLE |
| PLUG TYPE | PIN RETAINING |
| PLUG MATERIAL | BRASS |
| OVERALL LENGTH | 1.405 INCHES MINIMUM AND 1.431 INCHES MAXIMUM |
| MANUFACTURERS CODE | 59431 |
| DESIGN CONTROL REFERENCE | 21510 |
Restrictions/Controls & Freight Information | NSN 4130-00-142-0605
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4130-00-142-0605
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
