NSN 4130-00-595-0133 F16552, MILF16552, MIL-F-16552
Product Details | AIR CONDITIONING FILTER ELEMENT
4130-00-595-0133 A replaceable device designed to remove dust, pollen or other foreign matter from the air passing through it. The removal of particles is accomplished by porous fibrous or shredded material (metallic or nonmetallic) which is loosely woven or matted and confined in a frame or retained between perforated sheets of firmer material. It is designed to fit into air conditioners, ventilation systems and hot air furnaces. It may have facilities for radio frequency/electromagnetic interference shielding. The filter may be cleaned by the use of compressed air, blown through the filter element, or by using water and a suitable detergent for cleaning purposes which would extend the life of the filter.20216600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment41300045Refrigeration and Air Conditioning Components
Part Alternates: F16552, MILF16552, MIL-F-16552, MIL-F-16552 CL1 SZ15AF, MILF16552CL1SZ15AF, MILPRF16552, MIL-PRF-16552 , 137755STEEL, 13775-5STEEL, 15AF442N, 4130-00-595-0133, 00-595-0133, 4130005950133, 005950133
Refrigeration, Air Conditioning, and Air Circulating Equipment | Refrigeration and Air Conditioning Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 01 JAN 1963 | 00-595-0133 | 06458 ( FILTER ELEMENT, AIR CONDITIONING ) |

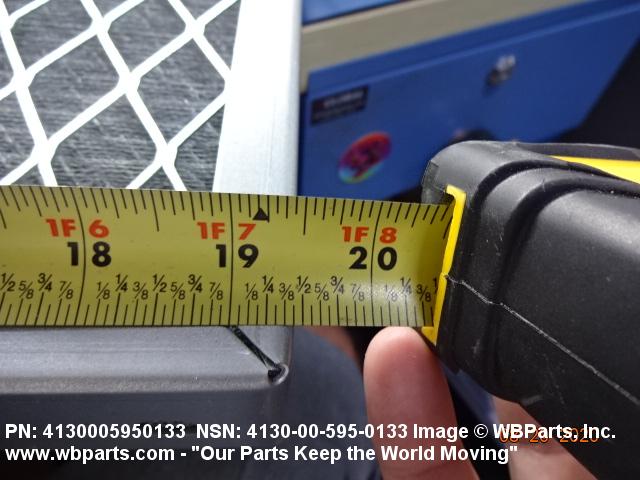

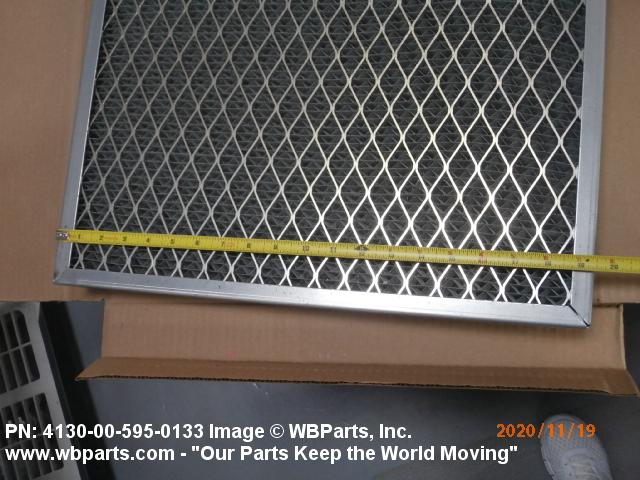

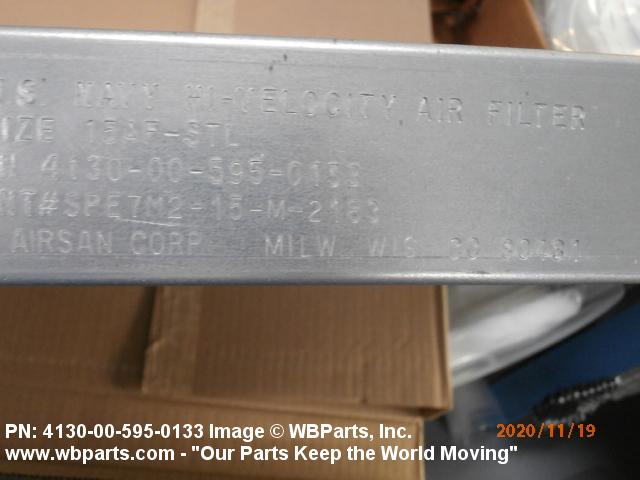

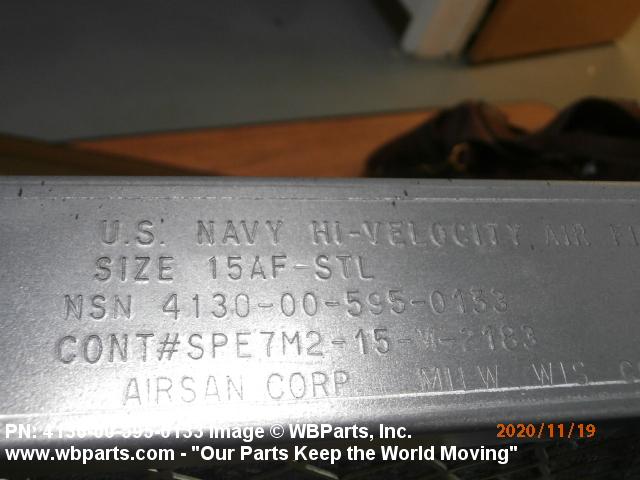

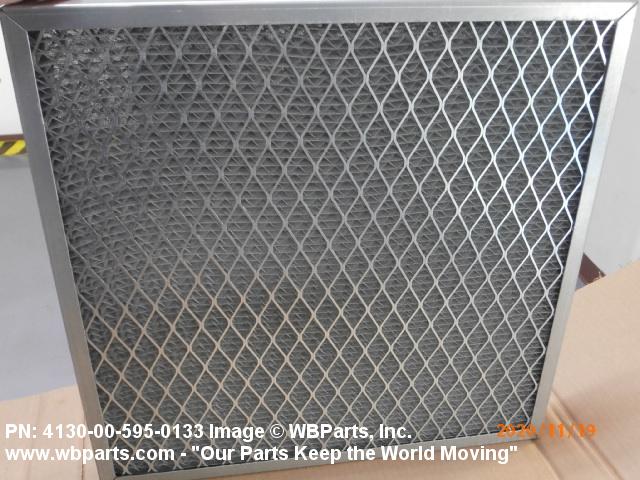

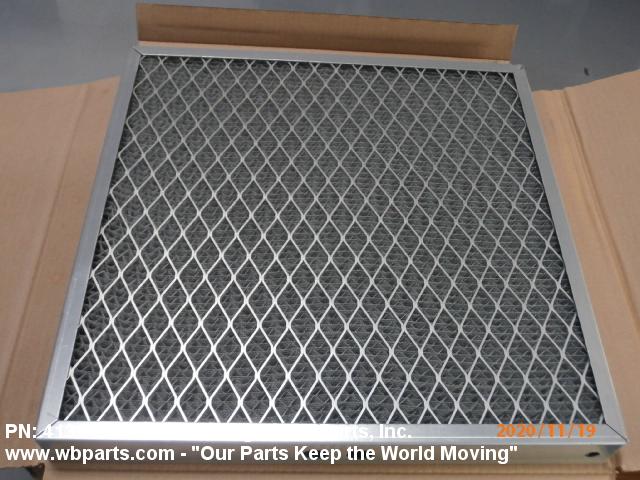

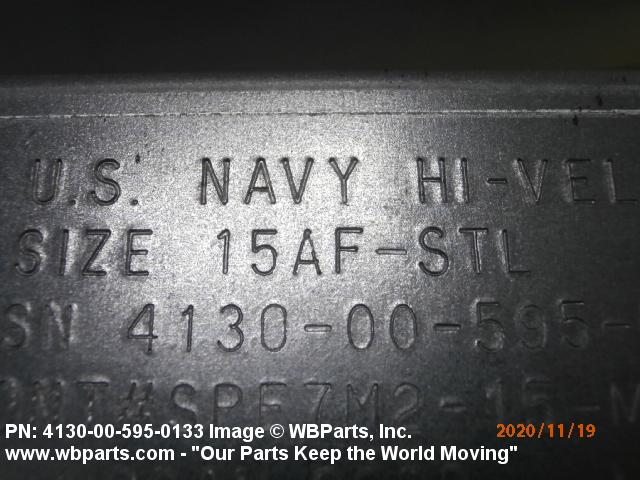

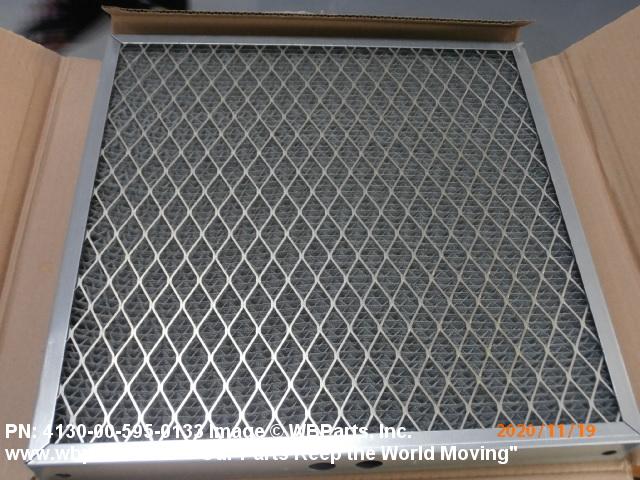

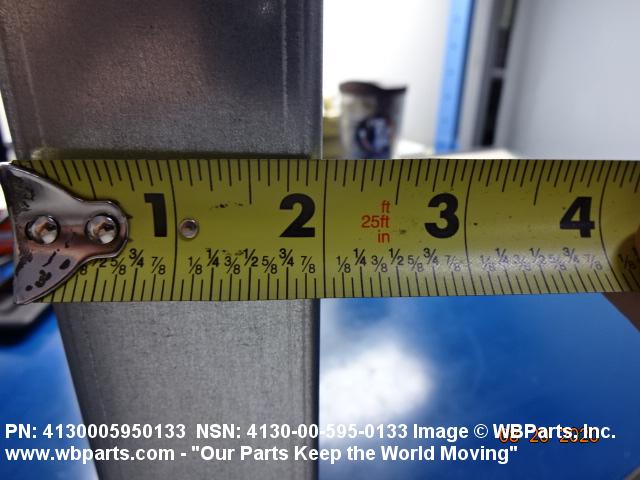

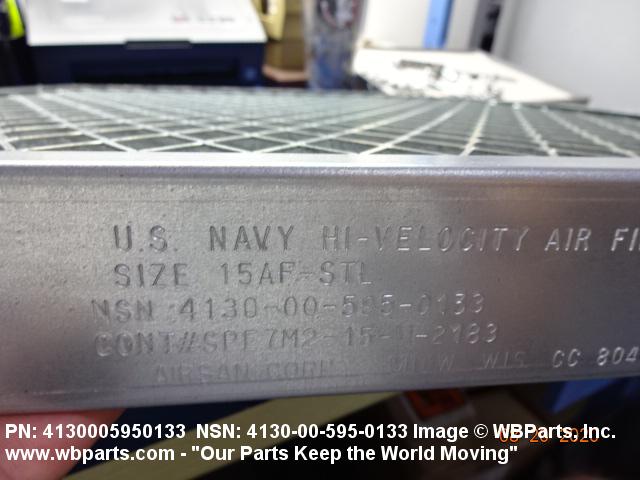

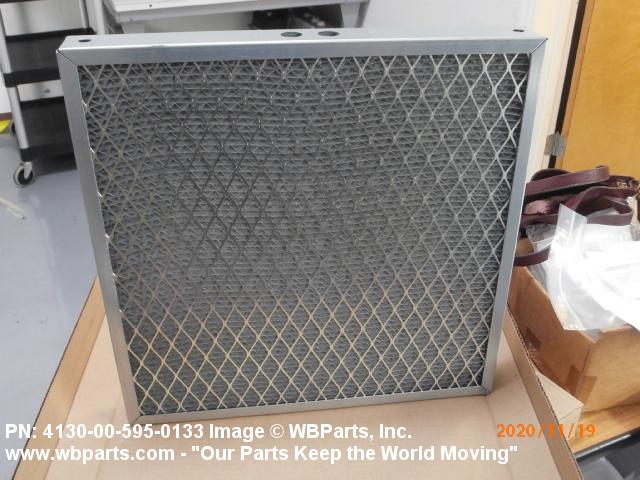

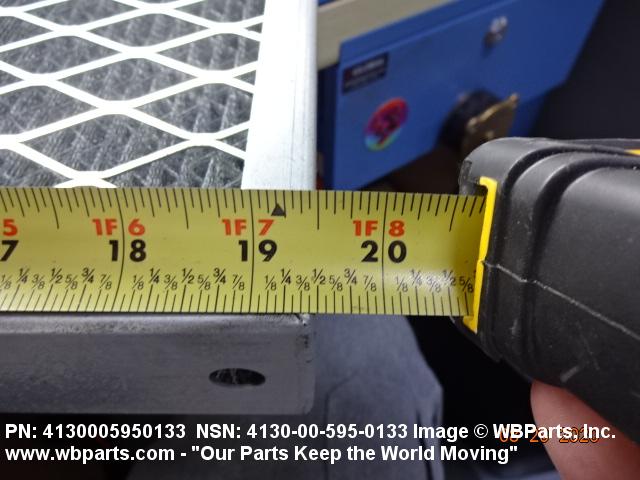

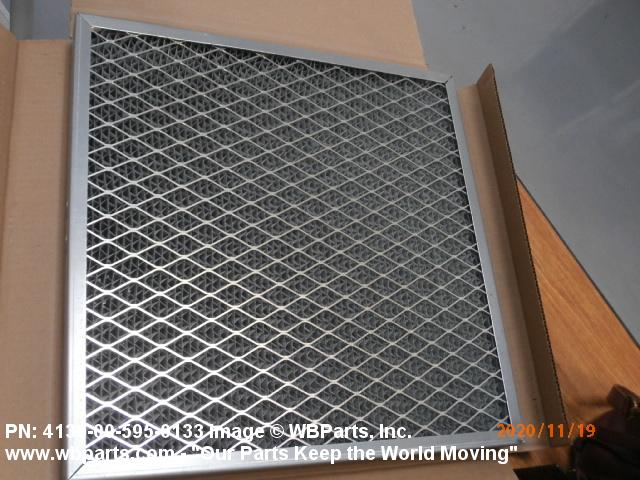

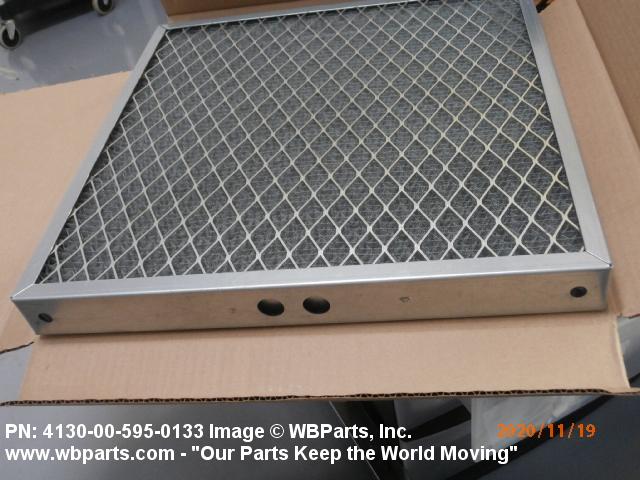

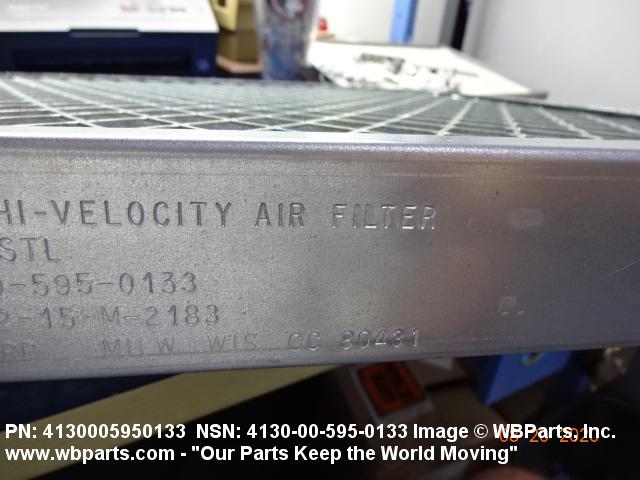

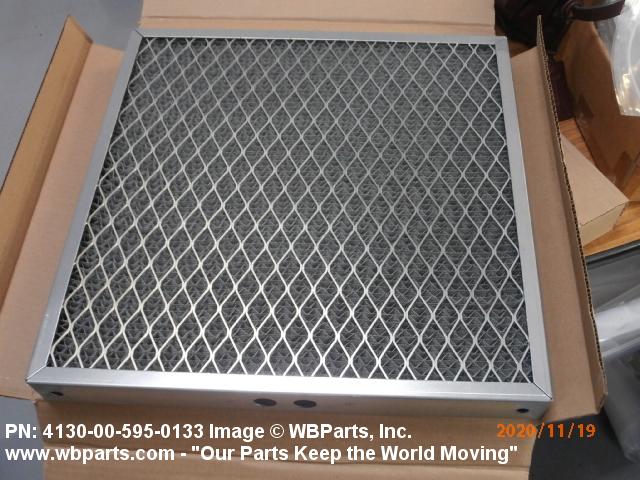

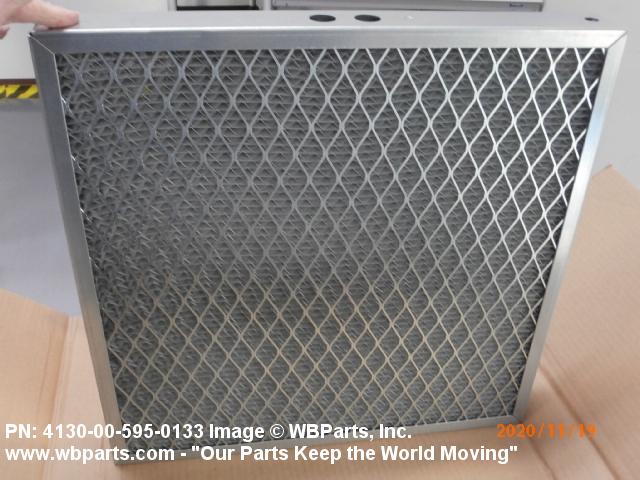

Drawings & Photos | NSN 4130-00-595-0133
Demand History | NSN 4130-00-595-0133
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4130-00-595-0133 | 2025-04-92 | 367 | DIBBS |
| 4130-00-595-0133 | 2024-10-296 | 5 | United States |
| MILF16552 | 2024-10-291 | 2 | United States |
| MILF16552 | 2024-10-282 | 2 | United States |
| 4130-00-595-0133 | 2024-09-249 | 260 | DIBBS |
| 4130-00-595-0133 | 2024-06-177 | 242 | DIBBS |
| 4130-00-595-0133 | 2024-06-165 | 4 | United States |
| 4130-00-595-0133 | 2024-05-136 | 216 | DIBBS |
| 4130-00-595-0133 | 2024-05-124 | 1 | United States |
| 4130-00-595-0133 | 2024-03-77 | 265 | DIBBS |
| 4130-00-595-0133 | 2023-08-235 | 190 | DIBBS |
| 4130-00-595-0133 | 2023-04-116 | 265 | DIBBS |
| 4130-00-595-0133 | 2023-03-66 | 134 | DIBBS |
| 4130-00-595-0133 | 2022-12-356 | 8 | United States |
| 4130-00-595-0133 | 2022-08-243 | 134 | DIBBS |
| 4130-00-595-0133 | 2022-07-208 | 165 | DIBBS |
| 4130-00-595-0133 | 2022-05-132 | 204 | DIBBS |
| 4130-00-595-0133 | 2022-03-73 | 235 | DIBBS |
| 4130-00-595-0133 | 2022-02-53 | 6 | United States |
| 4130-00-595-0133 | 2021-11-315 | 2 | United States |
| 4130-00-595-0133 | 2021-08-237 | 204 | DIBBS |
| 4130-00-595-0133 | 2021-06-153 | 191 | DIBBS |
| 4130-00-595-0133 | 2021-03-90 | 134 | DIBBS |
| 4130-00-595-0133 | 2021-03-67 | 2 | United States |
| 4130-00-595-0133 | 2020-11-316 | 4 | United States |
| 4130-00-595-0133 | 2020-08-226 | 2 | United States |
| 4130-00-595-0133 | 2020-08-226 | 2 | United States |
| 4130-00-595-0133 | 2020-07-211 | 148 | DIBBS |
| 4130-00-595-0133 | 2020-06-167 | 2 | US |
| 4130-00-595-0133 | 2020-06-167 | 2 | United States |
| 4130-00-595-0133 | 2020-06-160 | 4 | US |
| 4130-00-595-0133 | 2020-05-124 | 208 | DIBBS |
| 4130-00-595-0133 | 2018-05-136 | 269 | DIBBS |
| 4130-00-595-0133 | 2018-03-85 | 269 | DIBBS |
| 4130-00-595-0133 | 2018-03-66 | 11 | United States |
| 4130-00-595-0133 | 2017-09-264 | 269 | DIBBS |
| 4130-00-595-0133 | 2017-06-180 | 296 | DIBBS |
| 4130-00-595-0133 | 2017-01-05 | 306 | US |
| 4130-00-595-0133 | 2016-10-277 | 688 | DIBBS |
| 4130-00-595-0133 | 2015-05-133 | 551 | DIBBS |
| 4130-00-595-0133 | 2014-10-279 | 396 | DIBBS |
| 4130-00-595-0133 | 2013-07-199 | 222 | DIBBS |
| 4130-00-595-0133 | 2013-05-126 | 754 | DIBBS |
| 4130-00-595-0133 | 2012-10-298 | 703 | DIBBS |
| 4130-00-595-0133 | 2012-07-208 | 307 | DIBBS |
| MILF16552CL1SZ15AF | 2011-09-257 | 10 | US |
| 4130-00-595-0133 | 2010-11-320 | 142 | DIBBS |
| 4130-00-595-0133 | 2009-10-288 | 801 | DIBBS |
| 4130-00-595-0133 | 2009-08-231 | 501 | DIBBS |
| 4130-00-595-0133 | 2009-02-35 | 246 | DIBBS |
| 4130-00-595-0133 | 2008-08-225 | 198 | DIBBS |
Cross Reference | NSN 4130-00-595-0133
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13775-5STEEL | 00736 | FALLS FILTRATION TECHNOLOGIES, INC. |
| 15AF442N | 21585 | FARR CO |
| F16552 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MIL-F-16552 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-F-16552 CL1 SZ15AF | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-16552 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4130-00-595-0133
Related Products | NSN 4130-00-595-0133
Technical Data | NSN 4130-00-595-0133
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 RECTANGULAR |

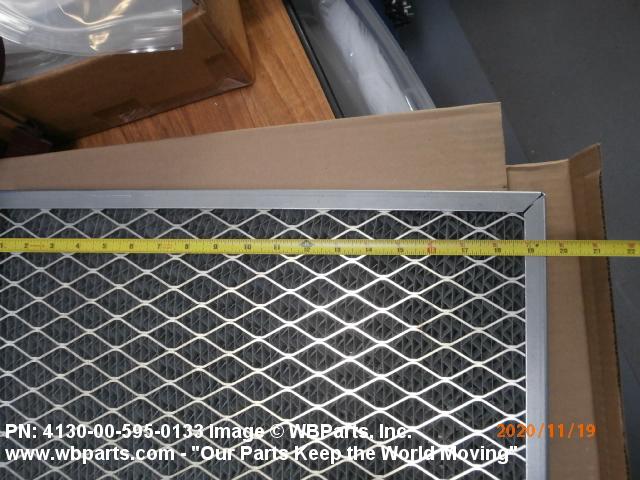

| OVERALL WIDTH | 19.438 INCHES MINIMUM AND 19.562 INCHES MAXIMUM |

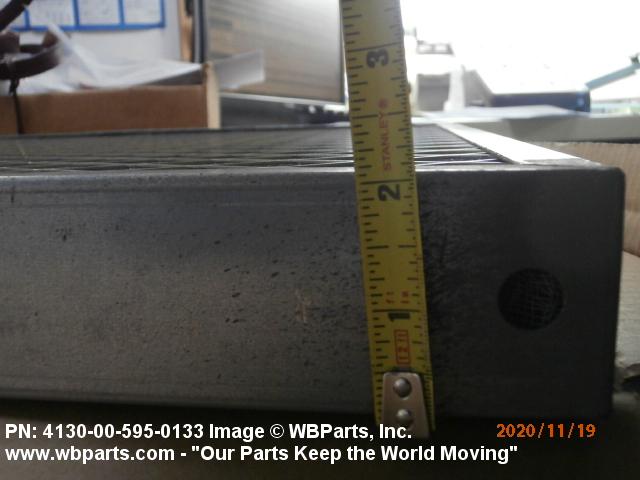

| BODY THICKNESS | 2.000 INCHES MINIMUM AND 2.125 INCHES MAXIMUM |
| BODY OVERALL LENGTH | 19.438 INCHES MINIMUM AND 19.562 INCHES MAXIMUM |
| MATERIAL | STEEL FILTERING MEDIUM STEEL FRAME |
| FILTERING MEDIA DESIGN | ANY ACCEPTABLE SINGLE FILTERING MEDIA RESPONSE |
| DESIGN TYPE | REUSABLE |
| FILTRATION RATING IN MICRONS | NOT RATED |
| MAXIMUM AIR FLOW RATE | NOT RATED |
| SPECIAL FEATURES | HANDLES PROVIDED ON TWO ADJACENT SIDES OF FRAME |
| NONDEFINITIVE SPEC/STD DATA | 1 CLASS AND 15AF SIZE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-16552 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-16552 CL1 SZ15AF |
Restrictions/Controls & Freight Information | NSN 4130-00-595-0133
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:CARTRIDGES/ELEMENTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4130-00-595-0133
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
