NSN 4130-00-850-2891 518D708H17, C4C4, 00-850-2891
Product Details | AIR CONDITIONING FILTER ELEMENT
4130-00-850-2891 A replaceable device designed to remove dust, pollen or other foreign matter from the air passing through it. The removal of particles is accomplished by porous fibrous or shredded material (metallic or nonmetallic) which is loosely woven or matted and confined in a frame or retained between perforated sheets of firmer material. It is designed to fit into air conditioners, ventilation systems and hot air furnaces. It may have facilities for radio frequency/electromagnetic interference shielding. The filter may be cleaned by the use of compressed air, blown through the filter element, or by using water and a suitable detergent for cleaning purposes which would extend the life of the filter.20216600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment41300045Refrigeration and Air Conditioning Components
Part Alternates: 518D708H17, C4C4, 4130-00-850-2891, 00-850-2891, 4130008502891, 008502891, 095636004
Refrigeration, Air Conditioning, and Air Circulating Equipment | Refrigeration and Air Conditioning Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 01 JAN 1962 | 00-850-2891 | 06458 ( FILTER ELEMENT, AIR CONDITIONING ) |

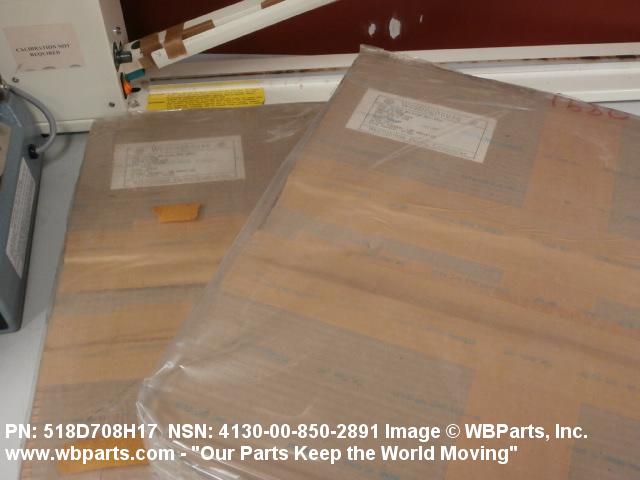

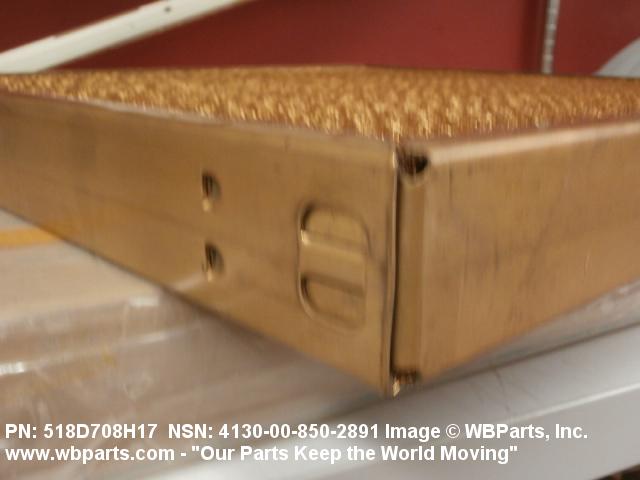

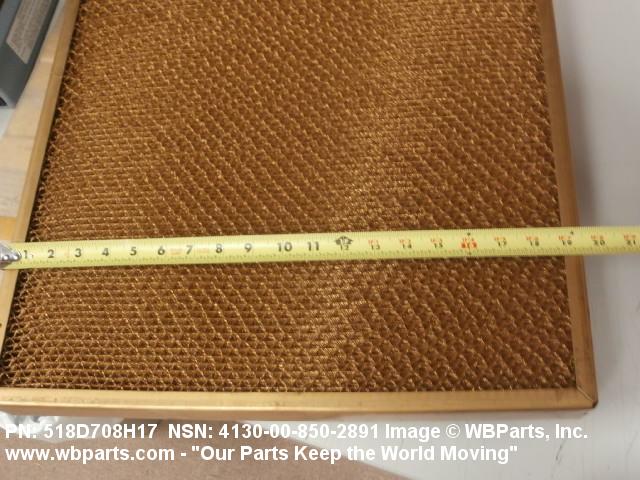

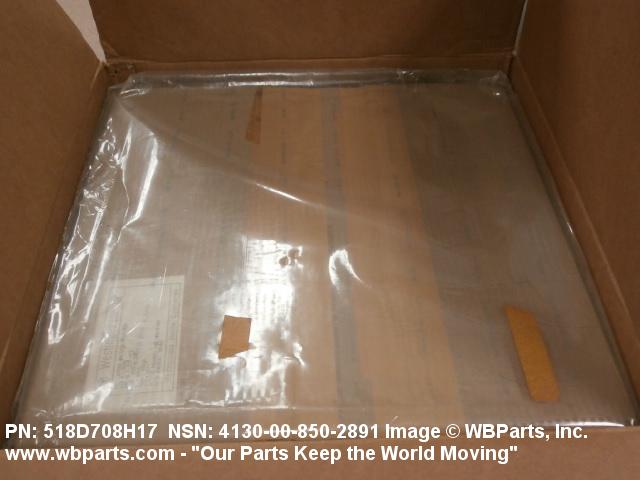

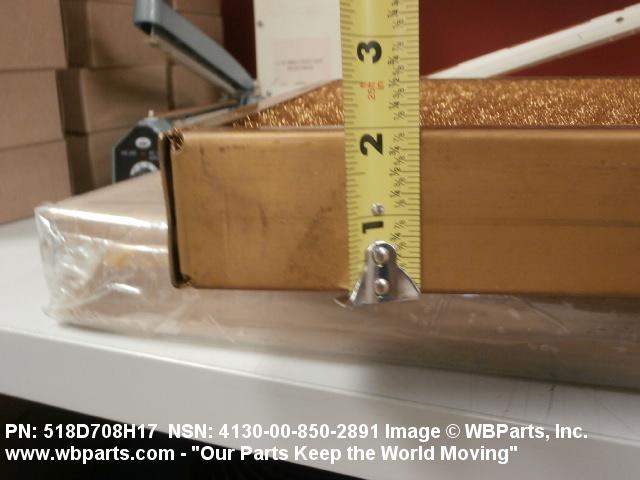

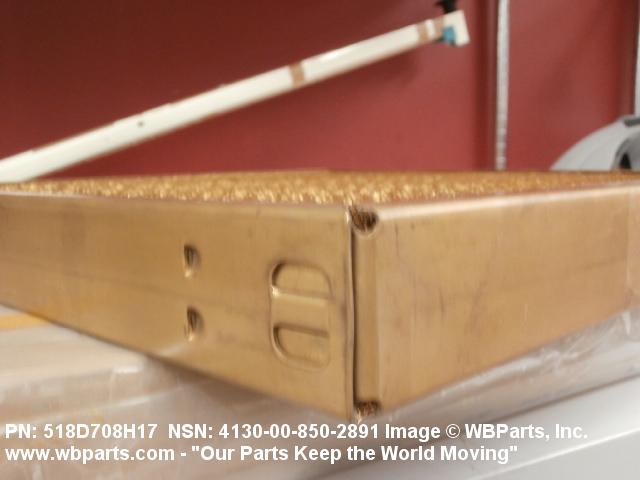

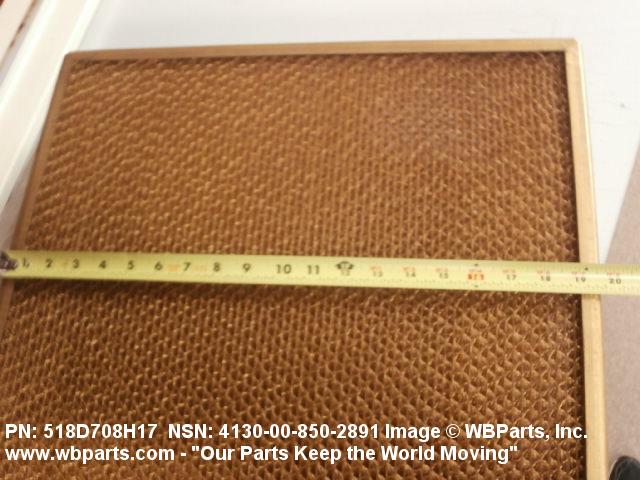

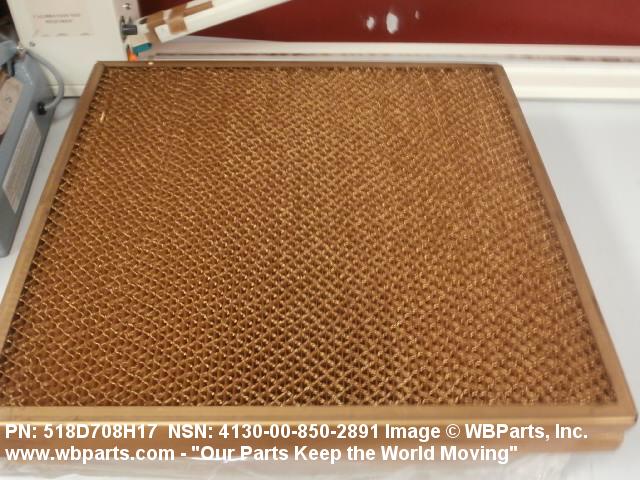

Drawings & Photos | NSN 4130-00-850-2891
Demand History | NSN 4130-00-850-2891
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| S4S4 | 2019-04-105 | 4 | DIBBS |
| S4S4 | 2019-04-93 | 4 | DIBBS |
| S4S4 | 2019-02-38 | 7 | DIBBS |
| S4S4 | 2019-01-27 | 7 | DIBBS |
| 4130-00-850-2891 | 2017-12-360 | 7 | DIBBS |
| 4130-00-850-2891 | 2017-10-292 | 7 | DIBBS |
| 4130-00-850-2891 | 2017-07-186 | 7 | DIBBS |
| 4130-00-850-2891 | 2017-05-136 | 7 | DIBBS |
| 4130-00-850-2891 | 2016-11-312 | 6 | DIBBS |
| 4130-00-850-2891 | 2016-05-144 | 6 | DIBBS |
| 4130-00-850-2891 | 2016-05-131 | 6 | DIBBS |
| 4130-00-850-2891 | 2015-12-354 | 9 | DIBBS |
| 4130-00-850-2891 | 2015-12-344 | 2 | United States |
| 4130-00-850-2891 | 2015-10-285 | 11 | DIBBS |
| 4130-00-850-2891 | 2015-04-110 | 4 | DIBBS |
| 4130-00-850-2891 | 2015-03-67 | 3 | DIBBS |
| 4130-00-850-2891 | 2014-07-205 | 3 | DIBBS |
| 4130-00-850-2891 | 2014-04-103 | 3 | DIBBS |
| 4130-00-850-2891 | 2013-10-304 | 2 | DIBBS |
| 4130-00-850-2891 | 2013-07-198 | 2 | DIBBS |
| 4130-00-850-2891 | 2013-01-31 | 2 | DIBBS |
| 4130-00-850-2891 | 2012-12-355 | 1 | DIBBS |
| 4130-00-850-2891 | 2012-09-268 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4130-00-850-2891
Technical Data | NSN 4130-00-850-2891
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 RECTANGULAR |
| OVERALL WIDTH | 20.000 INCHES NOMINAL |
| BODY THICKNESS | 2.000 INCHES NOMINAL |
| BODY OVERALL LENGTH | 20.000 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY FRAME |
| FILTERING MEDIA DESIGN | CRIMPED 1ST FILTERING MEDIA RESPONSE MESH 2ND FILTERING MEDIA RESPONSE |
| MESH SIZE | ANY ACCEPTABLE |
| WIRE DIAMETER | ANY ACCEPTABLE |
| DESIGN TYPE | REUSABLE |
| FILTRATION RATING IN MICRONS | NOT RATED |
| MAXIMUM AIR FLOW RATE | NOT RATED |
Restrictions/Controls & Freight Information | NSN 4130-00-850-2891
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:CARTRIDGES/ELEMENTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4130-00-850-2891
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
