4140-00-168-1871 - VANEAXIAL FAN, 19A1771, 22786, 781-011-004

Product Details | VANEAXIAL FAN

4140-00-168-1871 A nonpositive displacement mechanical device with guide vanes and having an axial fan impeller(s) inclosed within a tubular housing. It is designed primarily for duct installation to move air or gas axially over a wide range of volumes and pressures.

Part Alternates: 19A1771, 22786, 781-011-004, 4140-00-168-1871, 00-168-1871, 4140001681871, 001681871, 781011004

Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
41	20 SEP 1968	00-168-1871	04245 ( FAN, VANEAXIAL )

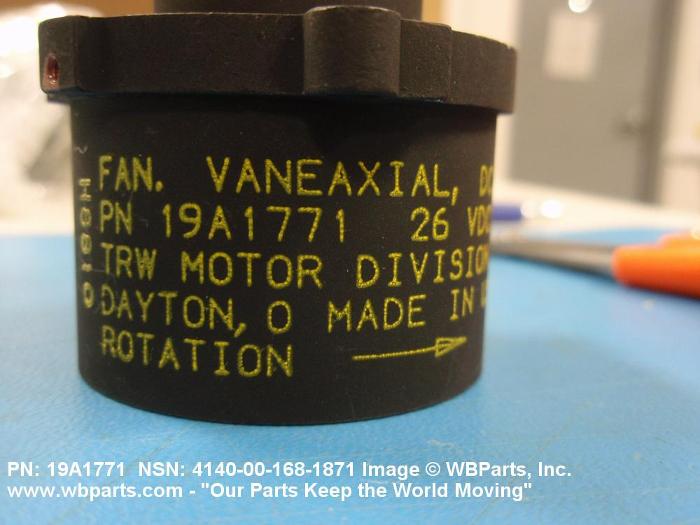

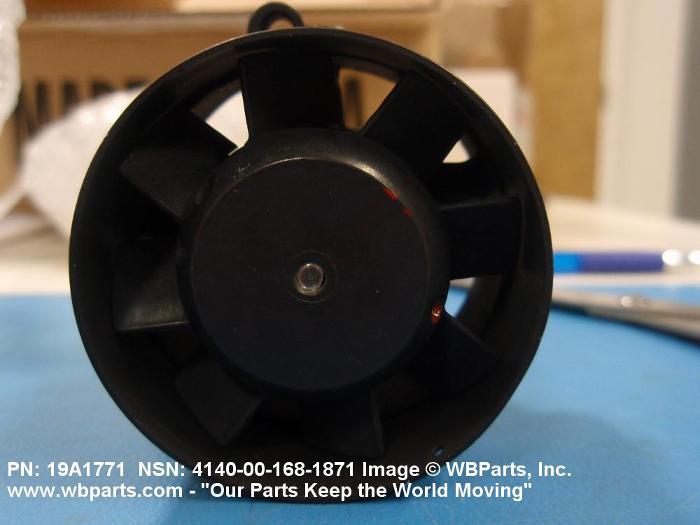

Drawings & Photos | NSN 4140-00-168-1871

Part Number	Request Date	QTY	Origin
4140-00-168-1871	2022-12-14	2	US
4140-00-168-1871	2022-10-13	1	US
19A1771	2022-06-29	9	DIBBS
4140-00-168-1871	2021-05-26	2	US
19A1771	2021-01-28	17	DIBBS
4140-00-168-1871	2020-11-24	2	MY
4140-00-168-1871	2020-11-23	2	MY
19A1771	2020-11-11	2	DE
19A1771	2019-09-12	26	DIBBS
4140-00-168-1871	2019-05-10	4	US
4140-00-168-1871	2019-02-28	1	US
4140-00-168-1871	2016-02-04	28	DIBBS
4140-00-168-1871	2015-10-29	3	DIBBS
4140-00-168-1871	2015-02-10	3	DIBBS
19A1771	2012-01-19	10	HK
19A1771	2011-12-28	41	United States
19A1771	2011-06-28	2	United States

Cross Reference | NSN 4140-00-168-1871

Part Number	Cage Code	Manufacturer
19A1771	25140	GLOBE MOTORS, INC. DBA GLOBE MOTORS
22786	10412	WHITTAKER CORP WHITTAKER ELECTRONIC SYSTEMS DIV
781-011-004	C3141	ELETTRONICA GMBH

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 4140-00-168-1871

Compare

Related Products | NSN 4140-00-168-1871

4140-00-398-9961, 4140-00-402-2080, 4140-00-726-8032, 4140-00-868-8907, 4140-01-003-2501

Technical Data | NSN 4140-00-168-1871

Characteristic	Specifications
STYLE DESIGNATOR	30 FIXED
LENGTH	2.125 INCHES NOMINAL
HOUSING INSIDE DIAMETER	1.875 INCHES NOMINAL
QUANTITY	1
MATERIAL	ALUMINUM OVERALL
SURFACE TREATMENT	ENAMEL OVERALL
DRIVE TYPE	DIRECT
ROTATION DIRECTION FOR WHICH DESIGNED	COUNTERCLOCKWISE
PRIME MOVER TYPE	ELECTRIC MOTOR
SPEED ADJUSTMENTS	SINGLE SPEED
INCLOSURE TYPE	FULLY INCLOSED
AMBIENT TEMP AT FULL RATED POWER	85.0 DEG CELSIUS
ELECTRICAL CONNECTION TYPE	TERMINAL
PRIME MOVER POWER RATING	0.040 HORSEPOWER
OPERATING SPEED AT RATED CAPACITY IN RPM	16500.0
VOLTAGE IN VOLTS AND CURRENT TYPE	26.0 DC OR 30.0 DC
AIR FLOW RATE	34.000 CUBIC FEET PER MINUTE MAXIMUM
STATIC PRESSURE AT SPECIFIED AIR FLOW RATE	1.5 INCHES OF WATER
FLOW DIRECTION	OUTWARD
STAGE QUANTITY	1
MOUNTING FACILITY TYPE AND QUANTITY	3 LUG AND 3 UNTHREADED HOLE
TEST DATA DOCUMENT	82050-22786 DRAWING
MANUFACTURERS CODE	25140
DESIGN CONTROL REFERENCE	19A1771

Restrictions/Controls & Freight Information | NSN 4140-00-168-1871

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061920	FANS ELEC NOI IN BARREL/BOX/CRATE
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	752	unknown
Originating Activity Code	BD	U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable
