NSN 4140-00-203-0011 A03626, A0-3626, DRPPKS2502CCW94A1
Product Details | CENTRIFUGAL FAN
4140-00-203-0011 A nonpositive displacement mechanical device having a centrifugal fan impeller inclosed within a housing. It is designed to move air or gas over a wide range of volumes and pressures. The air or gas is drawn in axially and discharged radially or drawn in radially and discharged axially by centrifugal force through an outlet in the housing.20216600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment41400043Fans, Air Circulators, and Blower Equipment
Part Alternates: A03626, A0-3626, DRPPKS2502CCW94A1, DRPP-KS2502CCW-94A1, G8300051, G830005-1, KS682502, KS68-2502, 020646, 4140-00-203-0011, 00-203-0011, 4140002030011, 002030011, 020646000
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 01 JAN 1963 | 00-203-0011 | 04254 ( FAN, CENTRIFUGAL ) |

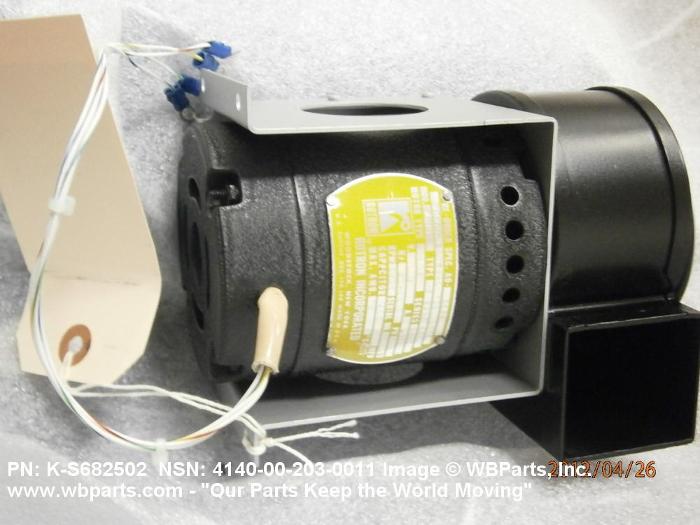

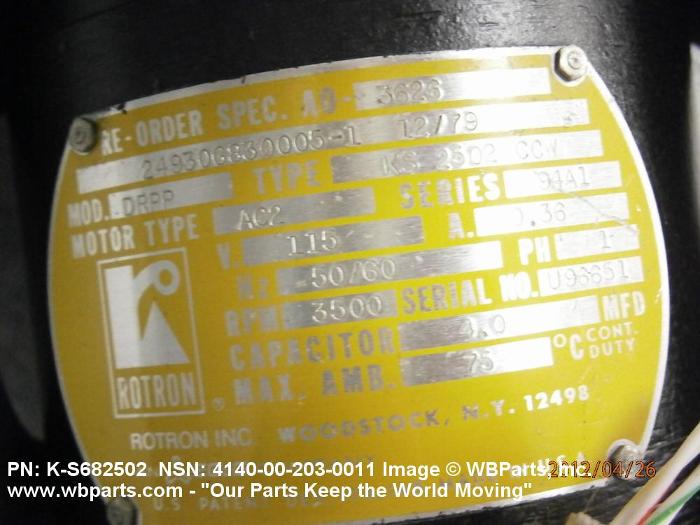

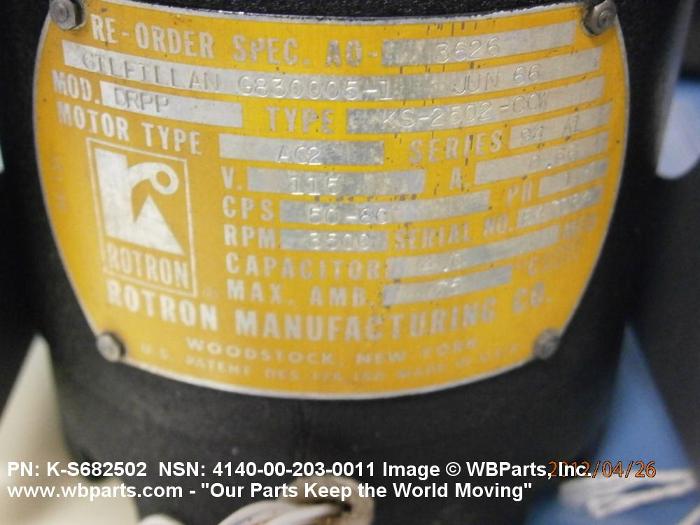

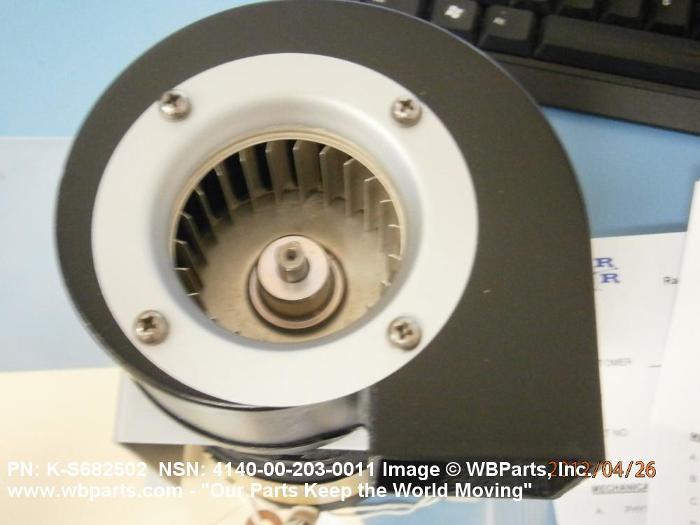

Drawings & Photos | NSN 4140-00-203-0011
Demand History | NSN 4140-00-203-0011
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4140-00-203-0011 | 2016-05-124 | 1 | DIBBS |
| 4140-00-203-0011 | 2015-08-217 | 1 | DIBBS |
| 4140-00-203-0011 | 2015-03-82 | 1 | DIBBS |
| 4140-00-203-0011 | 2014-12-345 | 1 | DIBBS |
| 4140-00-203-0011 | 2012-03-90 | 3 | Turkey |
| 4140002030011 | 2011-12-343 | 1 | US |
| 4140-00-203-0011 | 2009-11-307 | 3 | Turkey |
Cross Reference | NSN 4140-00-203-0011
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 020646 | 82877 | ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK |
| A0-3626 | 82877 | ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK |
| DRPP-KS2502CCW-94A1 | 82877 | ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK |
| G830005-1 | 24930 | EXELIS INC. DBA RADAR, RECONNAISSANCE & UNDERSEA |
| KS68-2502 | 82877 | ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4140-00-203-0011
Technical Data | NSN 4140-00-203-0011
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 50 FIXED, RECTANGULAR OUTLETS |
| WIDTH | 6.469 INCHES NOMINAL |
| LENGTH | 4.469 INCHES NOMINAL |
| OUTLET INSIDE WIDTH | 1.922 INCHES NOMINAL |
| OUTLET INSIDE HEIGHT | 2.156 INCHES NOMINAL |
| HEIGHT | 4.469 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | ZINC BLADE ENAMEL HOUSING |
| DRIVE TYPE | DIRECT |
| ROTATION DIRECTION FOR WHICH DESIGNED | COUNTERCLOCKWISE |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| SPEED ADJUSTMENTS | SINGLE SPEED |
| PRIME MOVER DRIVE SHAFT BEARING TYPE | BALL |
| INCLOSURE TYPE | FULLY INCLOSED |
| AMBIENT TEMP AT FULL RATED POWER | 75.0 DEG CELSIUS |
| ELECTRICAL CONNECTION TYPE | WIRE LEAD |
| PRIME MOVER POWER RATING | 0.017 HORSEPOWER |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 3300.0 |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| PHASE | SINGLE |
| FREQUENCY IN HERTZ | 60.0 |
| AIR FLOW RATE | 45.0 CUBIC FEET PER MINUTE NOMINAL |
| STATIC PRESSURE AT SPECIFIED AIR FLOW RATE | 0.0 INCHES OF WATER |
| MOUNTING FACILITY TYPE AND QUANTITY | 8 UNTHREADED HOLE |
| OUTLET LOCATION | BOTTOM OR TOP |
| DISCHARGE DIRECTION | ANGULAR DOWN AND ANGULAR UP AND HORIZONTAL AND VERTICAL DOWN AND VERTICAL UP |
| MANUFACTURERS CODE | 82877 |
| DESIGN CONTROL REFERENCE | 020646 |
Restrictions/Controls & Freight Information | NSN 4140-00-203-0011
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061920 | FANS ELEC NOI IN BARREL/BOX/CRATE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 752 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4140-00-203-0011
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
