NSN 4140-00-405-9101 A13413, 00-405-9101, 004059101
Product Details | CENTRIFUGAL FAN IMPELLER
4140-00-405-9101 An item with blades, vanes, or paddles equally spaced radially or horizontally around the periphery of a hub, rotor, or wheel. It is the rotating part of a centrifugal fan, electric motor, generator and the like which creates a flow of air or gas perpendicular to the axis of rotation.
Part Alternates: A13413, 4140-00-405-9101, 00-405-9101, 4140004059101, 004059101
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 01 JAN 1963 | 00-405-9101 | 10088 ( IMPELLER, FAN, CENTRIFUGAL ) |
Drawings & Photos | NSN 4140-00-405-9101
Cross Reference | NSN 4140-00-405-9101
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A13413 | 92878 | HDT EXPEDITIONARY SYSTEMS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4140-00-405-9101
Technical Data | NSN 4140-00-405-9101
| Characteristic | Specifications |
|---|---|

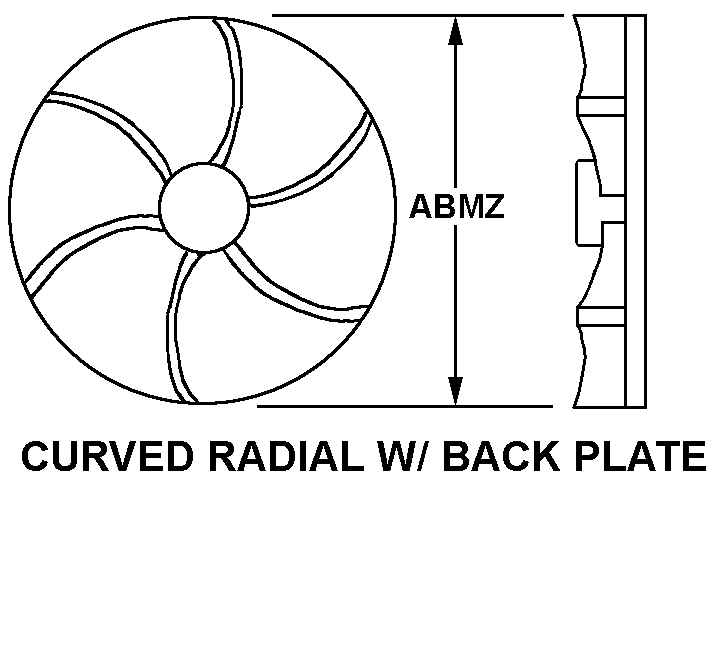

| STYLE DESIGNATOR | 10 CURVED RADIAL WITH BACK PLATE |
| WIDTH | 0.500 INCHES NOMINAL |
| DIAMETER | 4.938 INCHES NOMINAL |
| MATERIAL | ALUMINUM OVERALL |
| BLADE QUANTITY | 6 |
| ROTATION DIRECTION FOR WHICH DESIGNED | COUNTERCLOCKWISE |
| ATTACHMENT METHOD | SETSCREW |
| SPECIAL FEATURES | COUNTER CLOCKWISE IMPELLER ROTATION |
| MANUFACTURERS CODE | 92878 |
| DESIGN CONTROL REFERENCE | A13413 |
Restrictions/Controls & Freight Information | NSN 4140-00-405-9101
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061920 | FANS ELEC NOI IN BARREL/BOX/CRATE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
