NSN 4140-00-463-4276 HFG PS802AR-450AS, HFGPS802AR450AF, HFG-PS802A-R-450AF

Product Details | CIRCULATING FAN

4140-00-463-4276 A nonpositive displacement mechanical device having an axial fan impeller with or without a protective enclosure. It is designed to circulate air under free-airflow conditions, and may be equipped with a baffle(s) to deflect the air radially. It may be suspended from the ceiling, attached to the wall, or stand on a horizontal surface.

Part Alternates: HFG PS802AR-450AS, HFGPS802AR450AF, HFG-PS802A-R-450AF, HFGPS802AR450AS, 023558, 10181795, 4140-00-463-4276, 00-463-4276, 4140004634276, 004634276, 023558000

Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
41	26 AUG 1970	00-463-4276	30260 ( FAN, CIRCULATING )

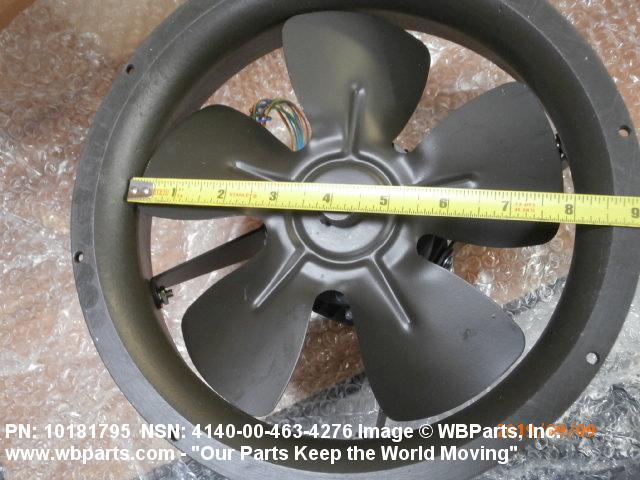

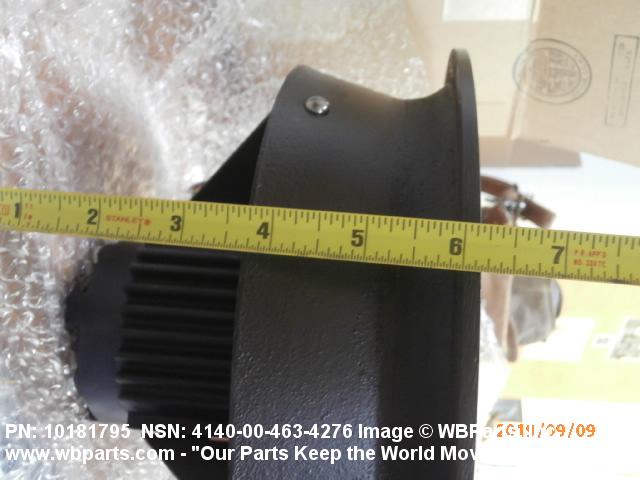

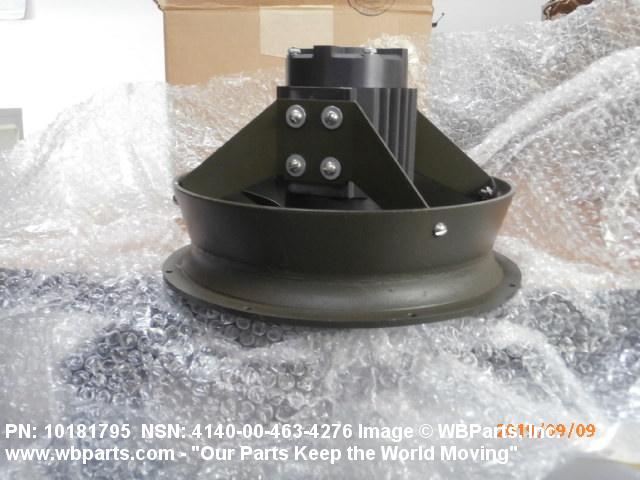

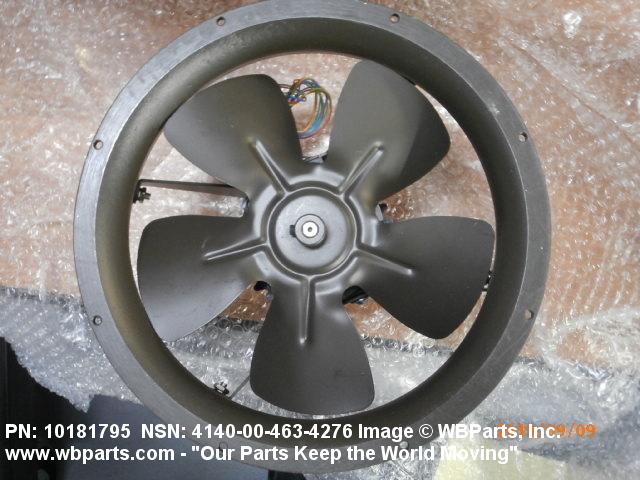

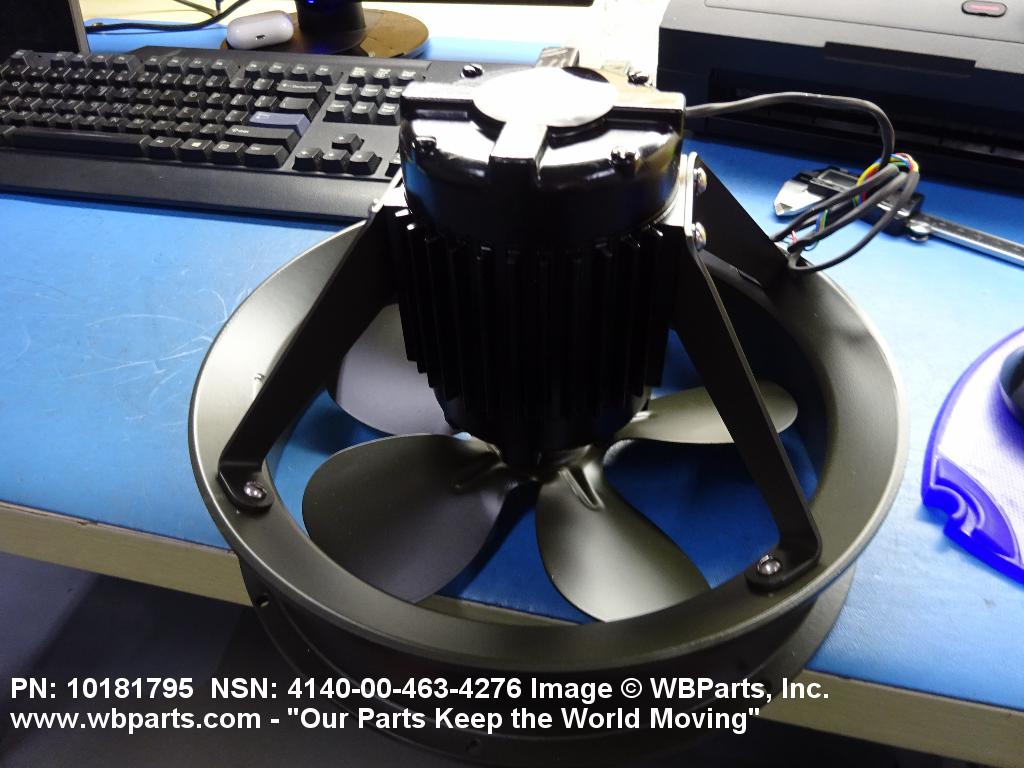

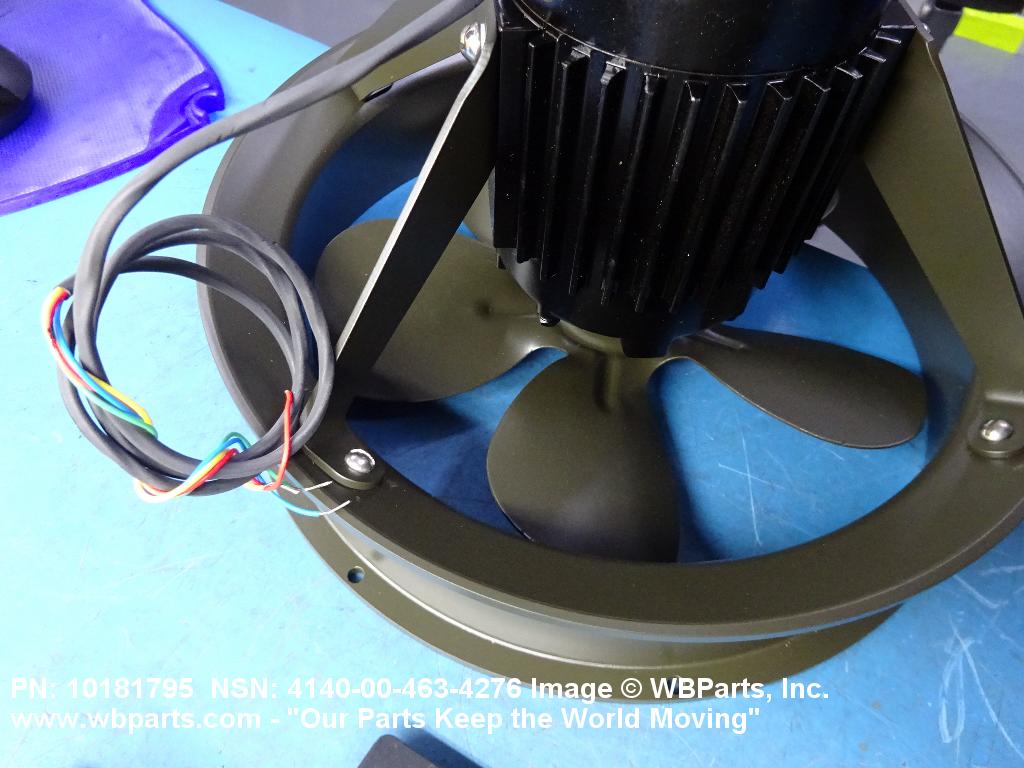

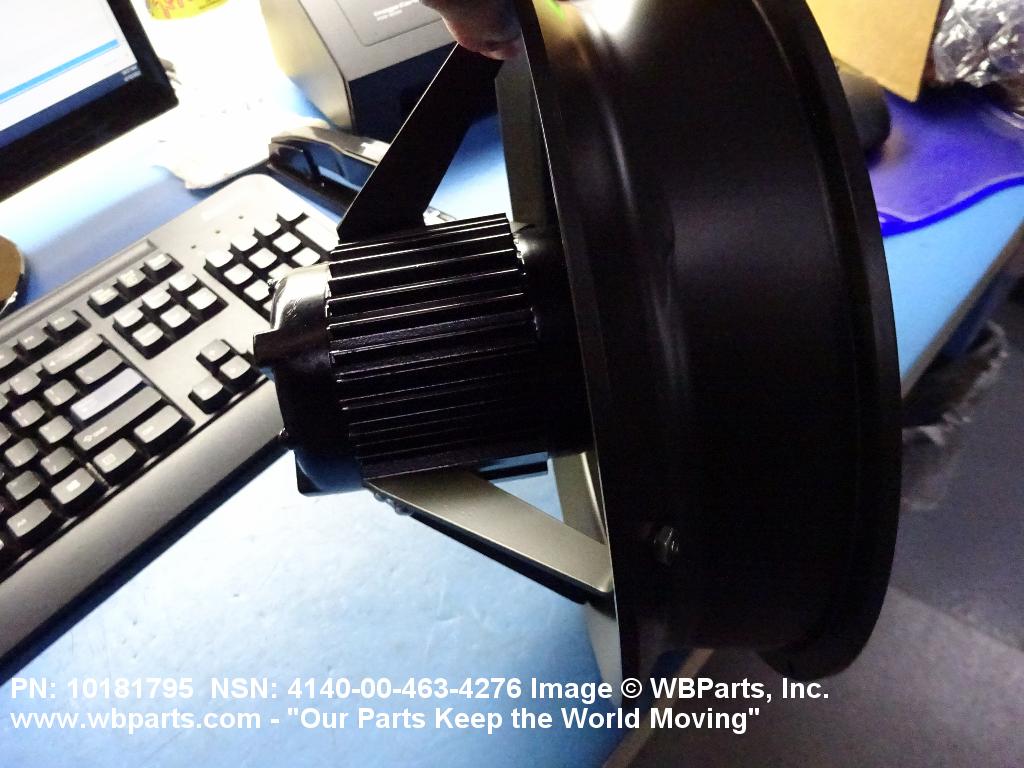

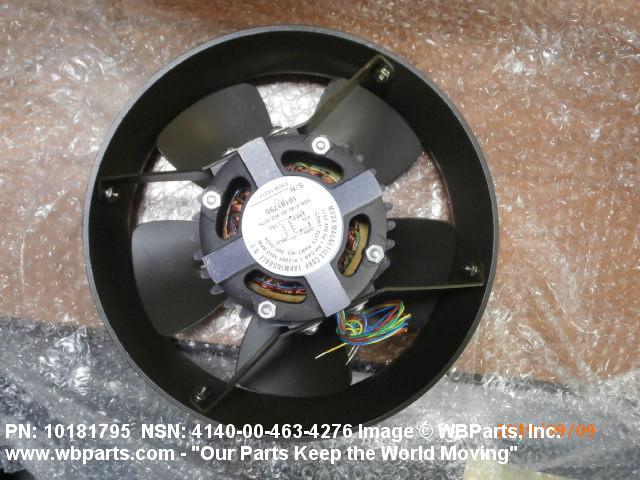

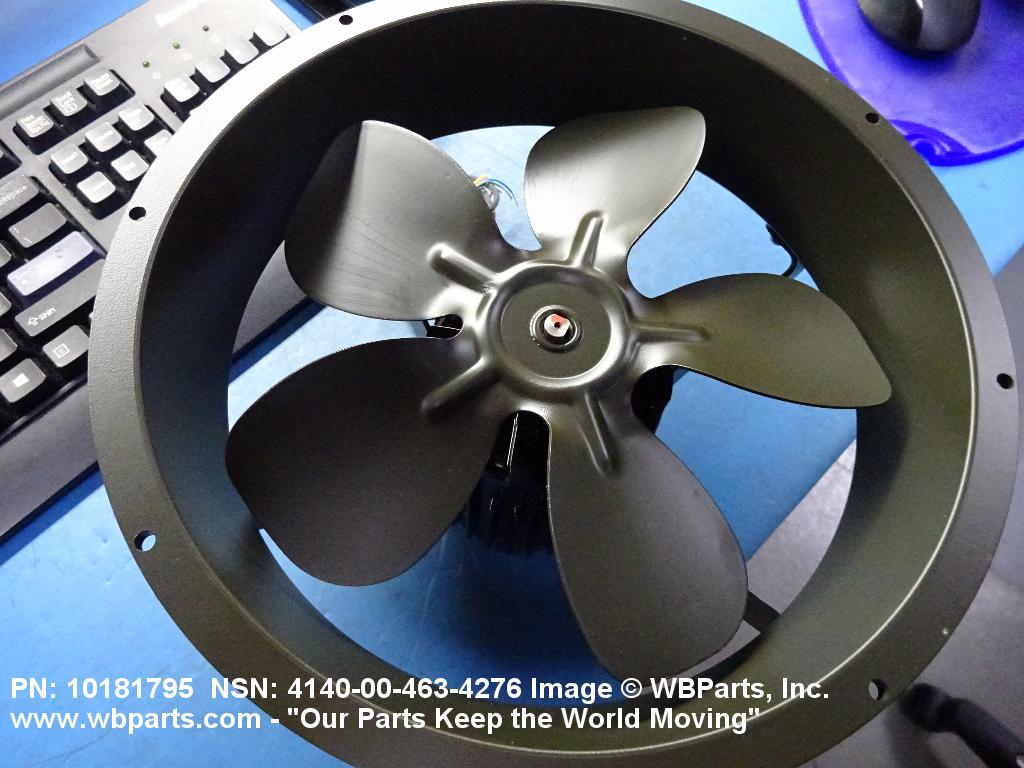

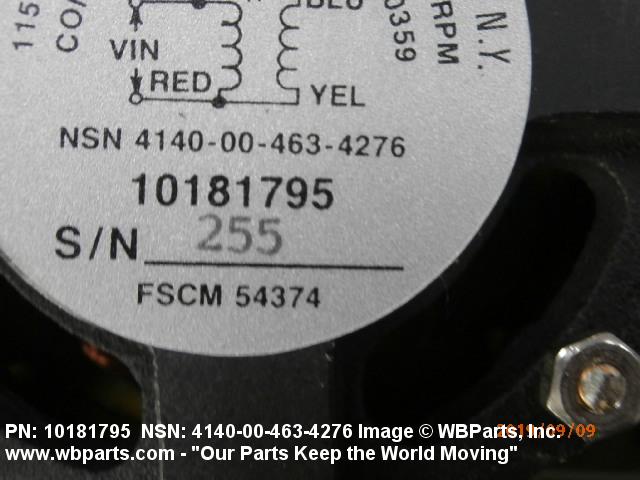

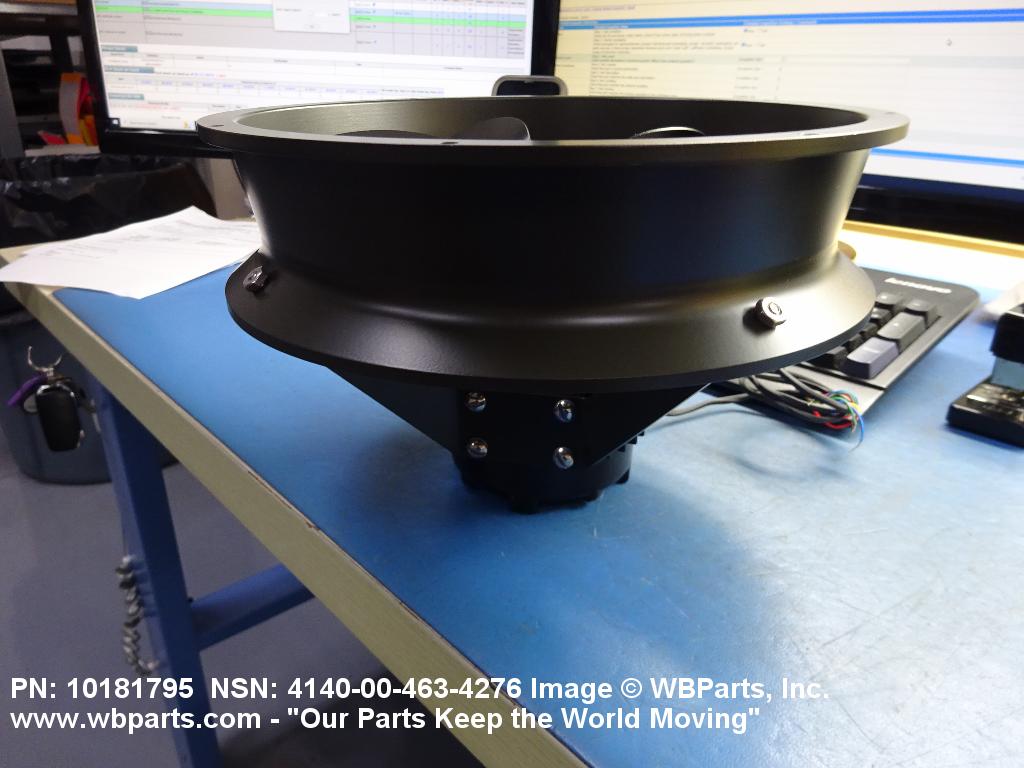

Drawings & Photos | NSN 4140-00-463-4276

Part Number	Request Date	QTY	Origin
4140-00-463-4276	2025-11-317	2	DIBBS
4140-00-463-4276	2025-07-196	20	DIBBS
4140-00-463-4276	2025-04-91	19	DIBBS
4140-00-463-4276	2025-04-91	20	DIBBS
4140-00-463-4276	2024-07-192	6	DIBBS
4140-00-463-4276	2024-04-109	2	US
4140-00-463-4276	2024-04-106	10	US
4140-00-463-4276	2024-04-102	10	United States
4140-00-463-4276	2024-02-38	2	TR
4140-00-463-4276	2023-11-311	20	DIBBS
4140-00-463-4276	2022-07-194	8	DIBBS
4140-00-463-4276	2022-06-165	1	United States
4140-00-463-4276	2022-06-160	20	DIBBS
4140-00-463-4276	2022-05-138	3	DIBBS
4140-00-463-4276	2022-05-130	1	United States
4140-00-463-4276	2021-04-104	5	United States
4140-00-463-4276	2021-02-53	4	United States
4140-00-463-4276	2020-12-338	4	United States
4140-00-463-4276	2020-10-282	5	United States
4140-00-463-4276	2020-06-174	20	DIBBS
4140-00-463-4276	2020-05-133	1	United States
4140-00-463-4276	2020-04-93	4	DIBBS
4140-00-463-4276	2020-04-93	6	DIBBS
4140-00-463-4276	2020-04-93	9	DIBBS
4140-00-463-4276	2019-08-241	5	United States
4140-00-463-4276	2019-08-241	3	United States
4140-00-463-4276	2018-08-233	1	United States
4140-00-463-4276	2018-03-70	10	DIBBS
4140-00-463-4276	2018-01-15	17	DIBBS
4140-00-463-4276	2017-10-291	10	DIBBS
4140-00-463-4276	2016-12-343	15	DIBBS
4140-00-463-4276	2015-09-263	12	DIBBS
4140-00-463-4276	2014-09-257	15	DIBBS
4140-00-463-4276	2014-05-141	17	DIBBS
4140-00-463-4276	2014-02-54	16	DIBBS
4140-00-463-4276	2014-01-23	15	DIBBS
4140-00-463-4276	2013-05-144	14	DIBBS
4140-00-463-4276	2013-05-129	14	DIBBS
4140-00-463-4276	2011-04-110	6	DIBBS
4140-00-463-4276	2011-03-68	4	DIBBS
4140-00-463-4276	2009-09-252	35	DIBBS
4140-00-463-4276	2009-07-204	15	DIBBS
4140-00-463-4276	2009-07-195	9	DIBBS
4140-00-463-4276	2009-06-177	25	DIBBS
4140-00-463-4276	2008-06-154	6	France

Cross Reference | NSN 4140-00-463-4276

Part Number	Cage Code	Manufacturer
023558	82877	ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK
023558000	82877	ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK
10181795	18876	U S ARMY AVIATION AND MISSILE COMMAND
HFG PS802AR-450AS	82877	ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK
HFG-PS802A-R-450AF	82877	ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4140-00-463-4276

Compare

Related Products | NSN 4140-00-463-4276

4140-00-463-6166, 4140-00-464-6278, 4140-00-464-7890, 4140-00-465-1312, 4140-00-465-1353

Technical Data | NSN 4140-00-463-4276

Characteristic	Specifications
STYLE DESIGNATOR	32 FIXED

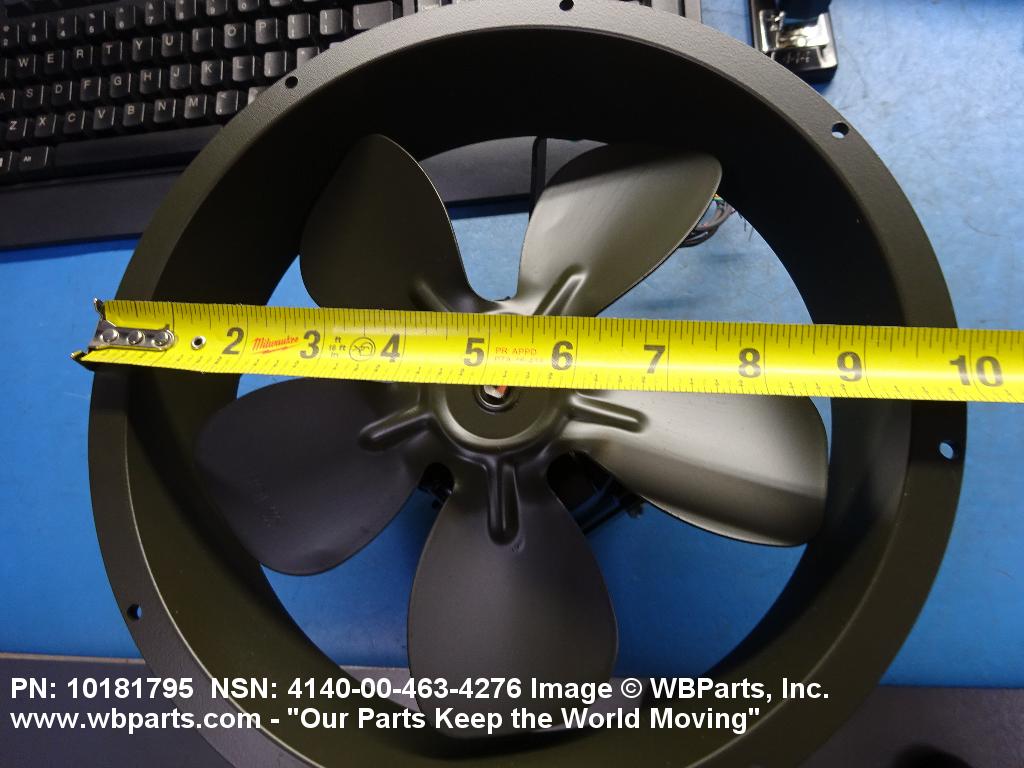

DIAMETER	8.000 INCHES NOMINAL

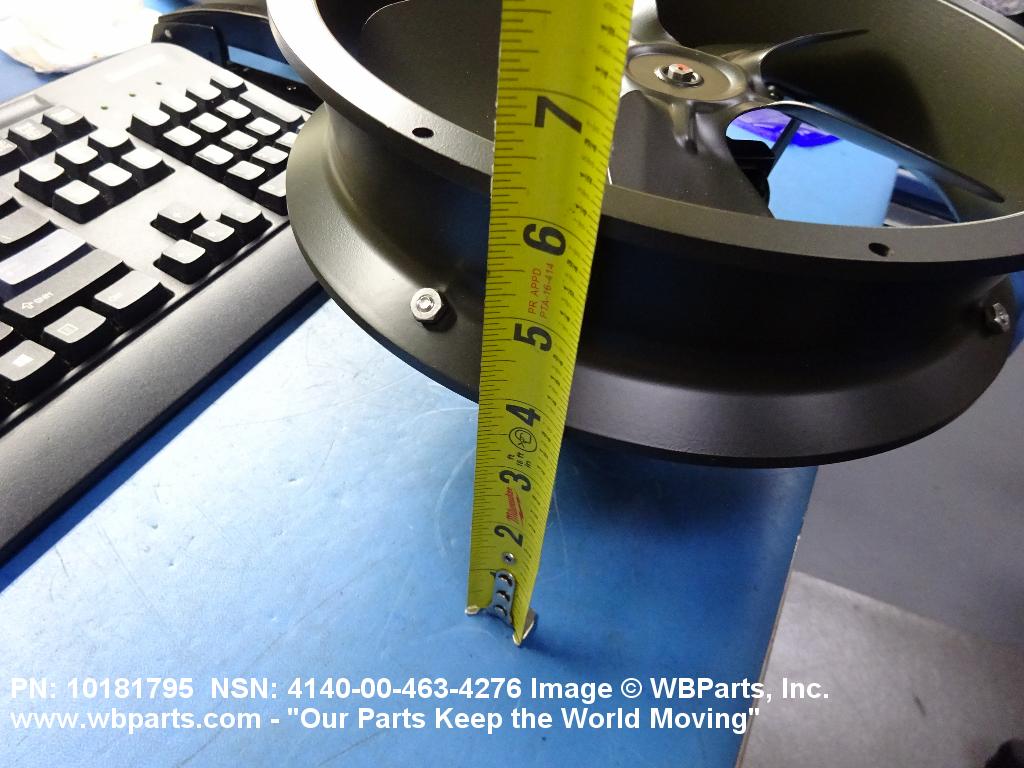

LENGTH	6.813 INCHES MAXIMUM
HOUSING INSIDE DIAMETER	700.0 MILLIMETERS NOMINAL
QUANTITY	1
MATERIAL	ALUMINUM ALLOY 6061 OVERALL
SURFACE TREATMENT	ENAMEL OVERALL
DRIVE TYPE	DIRECT
ROTATION DIRECTION FOR WHICH DESIGNED	CLOCKWISE
PRIME MOVER TYPE	ELECTRIC MOTOR
SPEED ADJUSTMENTS	SINGLE SPEED
INCLOSURE TYPE	FULLY INCLOSED
AMBIENT TEMP AT FULL RATED POWER	-40.0 DEG CELSIUS AND 85.0 DEG CELSIUS
ELECTRICAL CONNECTION TYPE	WIRE LEAD
PRIME MOVER POWER RATING	0.248 HORSEPOWER
OPERATING SPEED AT RATED CAPACITY IN RPM	3650.0
VOLTAGE IN VOLTS AND CURRENT TYPE	115.0 AC
PHASE	TWO
FREQUENCY IN HERTZ	400.0
AIR FLOW RATE	700.000 CUBIC FEET PER MINUTE MAXIMUM
STATIC PRESSURE AT SPECIFIED AIR FLOW RATE	0.0 INCHES OF WATER
FLOW DIRECTION	INWARD
MOUNTING FACILITY TYPE AND QUANTITY	1 FLANGE AND 8 UNTHREADED HOLE
TEST DATA DOCUMENT	18876-10181795 DRAWING
MANUFACTURERS CODE	18876
DESIGN CONTROL REFERENCE	10181795

Restrictions/Controls & Freight Information | NSN 4140-00-463-4276

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061920	FANS ELEC NOI IN BARREL/BOX/CRATE
Less than car load rating	J	100.2
Less than truck load rating	J	100.2
Water commodity Code	658	unknown
Originating Activity Code	CX	Defense Supply Center Richmond Richmond, VA 23297-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4140-00-463-4276

Army

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
