NSN 4140-00-497-2134 BC1303F2, BC1303F-2, 10203440
Product Details | TUBEAXIAL FAN
4140-00-497-2134 A nonpositive displacement mechanical device without guide vanes and having an axial fan impeller inclosed within a tubular housing. It is designed primarily for duct installation to move air or gas axially over a wide range of volumes at medium pressures.20316800000259000004140000000
Part Alternates: BC1303F2, BC1303F-2, 10203440 , 14708701, 147087-01, 4140-00-497-2134, 00-497-2134, 4140004972134, 004972134
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 19 FEB 1971 | 00-497-2134 | 04244 ( FAN, TUBEAXIAL ) |

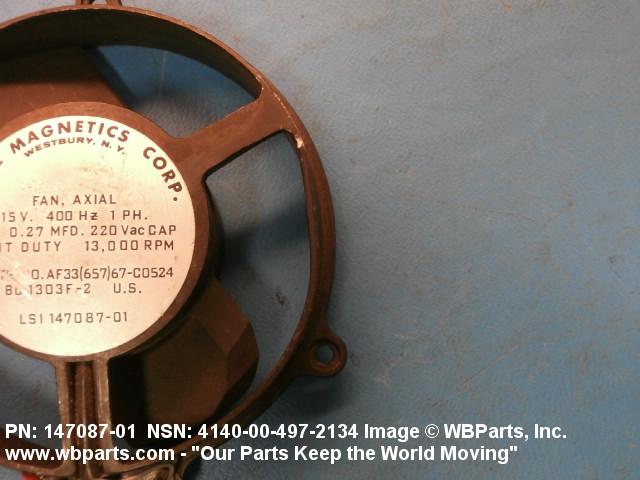

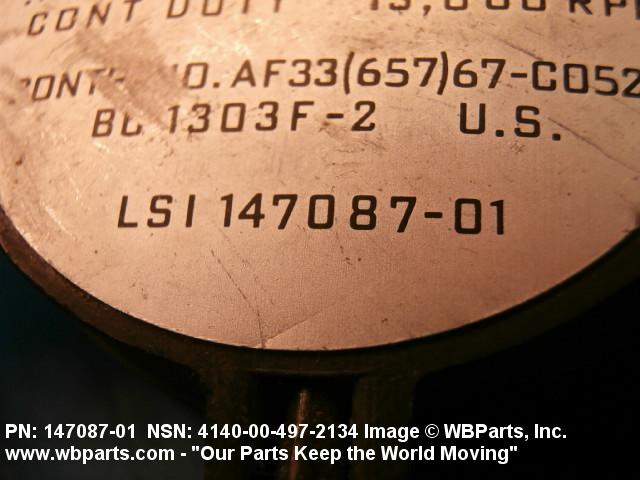

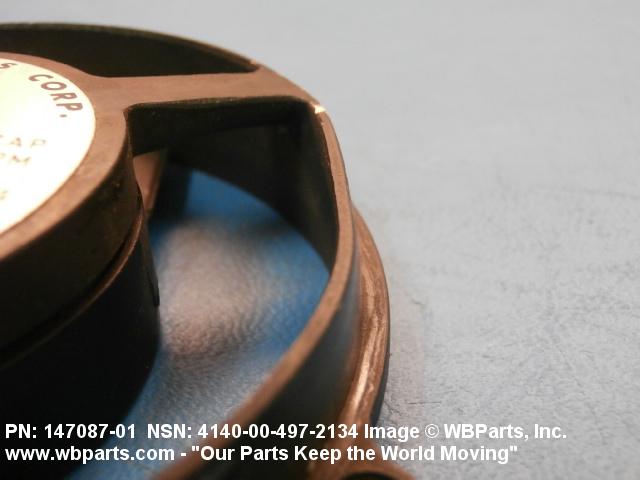

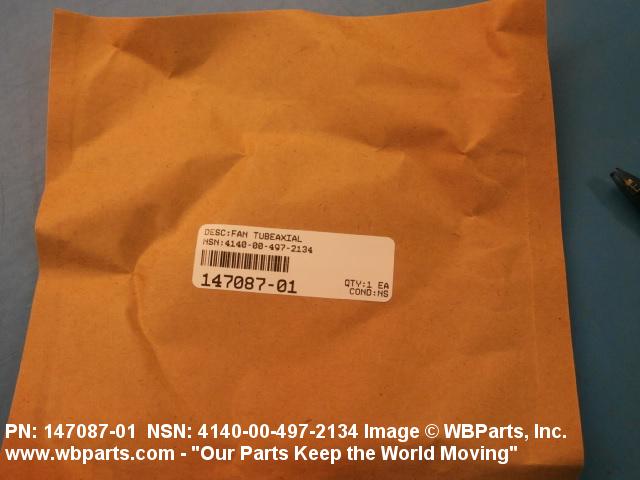

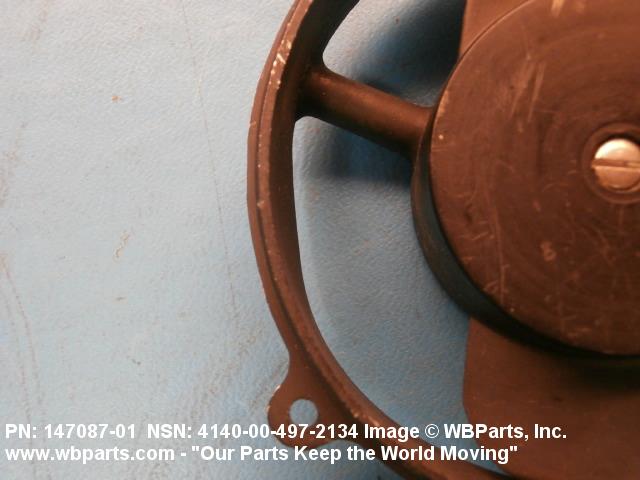

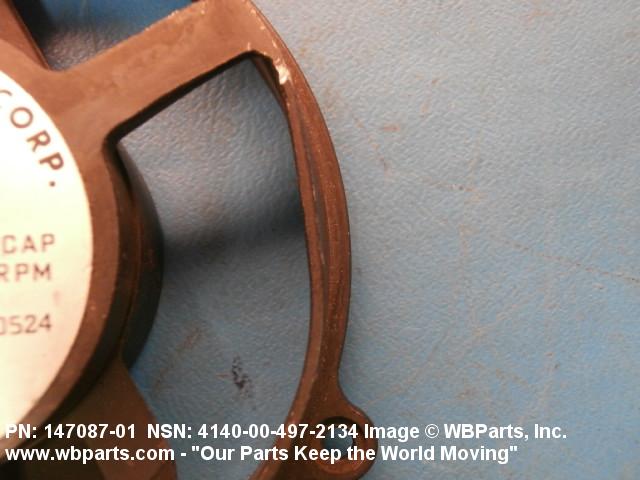

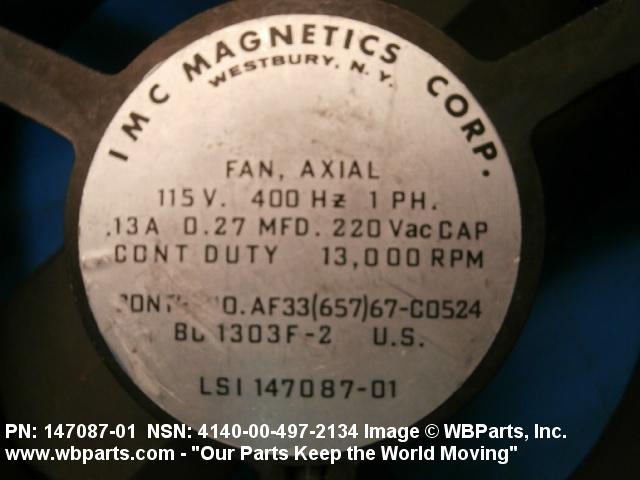

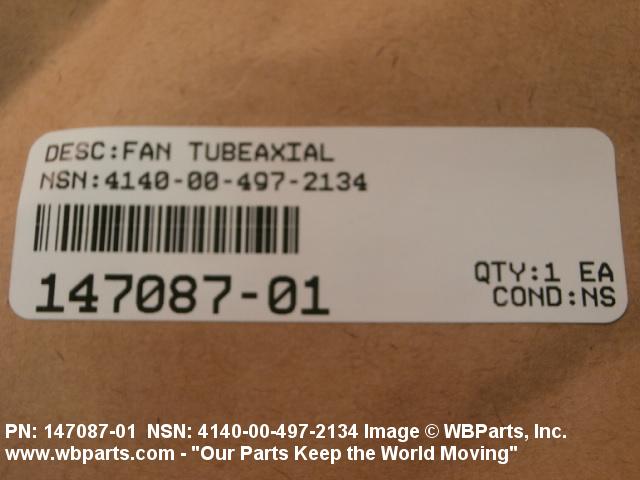

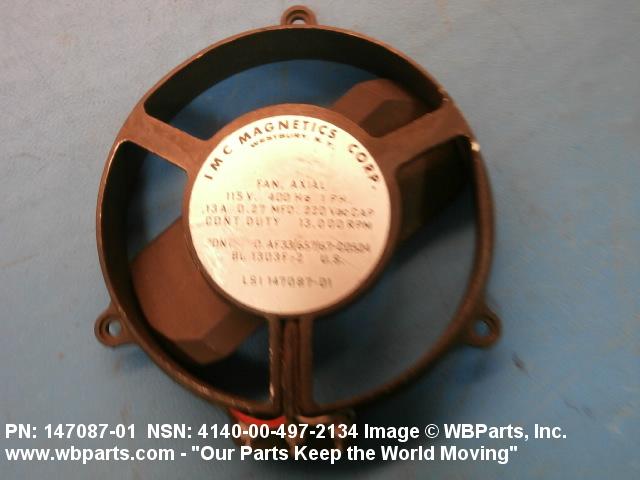

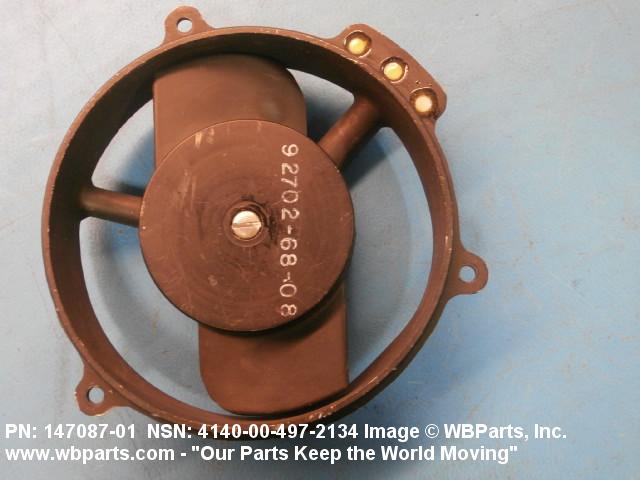

Drawings & Photos | NSN 4140-00-497-2134
Demand History | NSN 4140-00-497-2134
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BC1303F2 | 2025-12-338 | 1 | US |
| 4140-00-497-2134 | 2022-02-55 | 6 | Germany |
| 4140-00-497-2134 | 2022-02-52 | 1 | TR |
| 4140-00-497-2134 | 2022-01-23 | 3 | US |
| 4140-00-497-2134 | 2022-01-10 | 3 | ES |
| 4140-00-497-2134 | 2021-10-287 | 60 | TR |
| 4140-00-497-2134 | 2021-09-265 | 55 | TR |
| 4140-00-497-2134 | 2021-09-259 | 55 | US |
| 4140-00-497-2134 | 2021-08-243 | 55 | US |
| 4140-00-497-2134 | 2021-06-160 | 55 | Turkey |
| 4140-00-497-2134 | 2020-05-142 | 3 | ES |
| 4140-00-497-2134 | 2020-03-83 | 3 | Spain |
| 4140-00-497-2134 | 2019-05-126 | 5 | DE |
| 4140-00-497-2134 | 2019-03-73 | 6 | US |
| 4140-00-497-2134 | 2019-01-25 | 2 | US |
| 4140-00-497-2134 | 2018-11-318 | 10 | US |
| 4140-00-497-2134 | 2018-11-318 | 10 | DE |
| 4140-00-497-2134 | 2018-10-295 | 7 | DIBBS |
| 4140-00-497-2134 | 2018-06-172 | 50 | us |
| 4140-00-497-2134 | 2015-02-55 | 2 | DE |
| 4140-00-497-2134 | 2014-03-71 | 13 | Turkey |
| BC1303F2 | 2014-03-71 | 13 | Turkey |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4140-00-497-2134
Technical Data | NSN 4140-00-497-2134
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 31 FIXED |

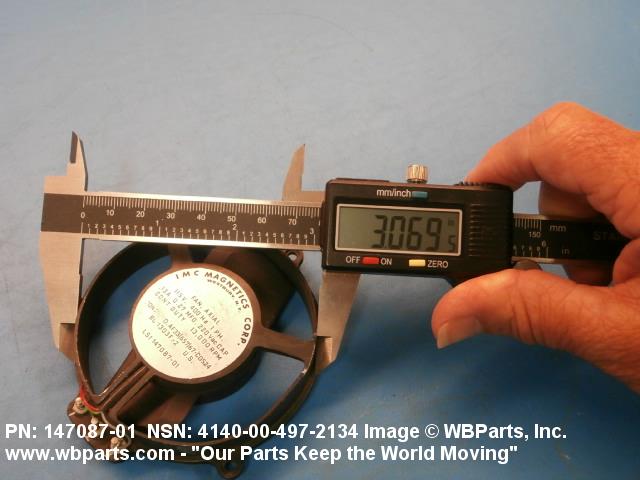

| DIAMETER | 3.075 INCHES NOMINAL |

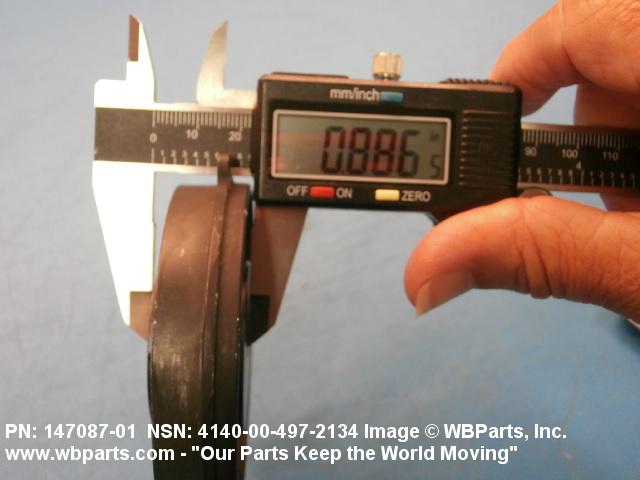

| LENGTH | 0.900 INCHES MAXIMUM |
| HOUSING INSIDE DIAMETER | 3.120 INCHES NOMINAL |
| MATERIAL | ALUMINUM OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| DRIVE TYPE | DIRECT |
| ROTATION DIRECTION FOR WHICH DESIGNED | CLOCKWISE |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| SPEED ADJUSTMENTS | SINGLE SPEED |
| PRIME MOVER DRIVE SHAFT BEARING TYPE | BALL |
| INCLOSURE TYPE | OPEN |
| AMBIENT TEMP AT FULL RATED POWER | -55.0 DEG CELSIUS AND 95.0 DEG CELSIUS |

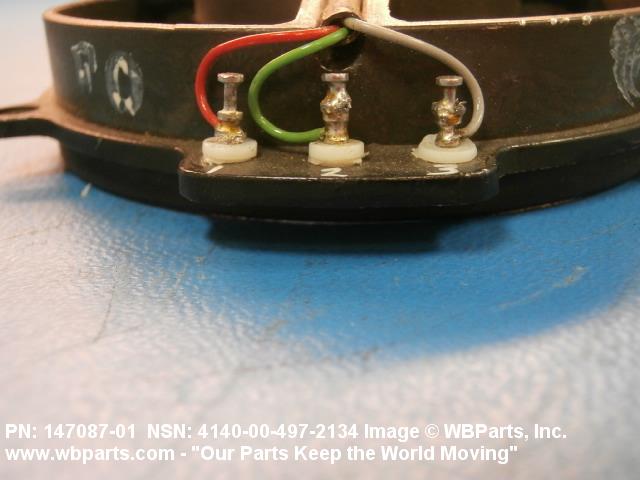

| ELECTRICAL CONNECTION TYPE | TERMINAL |
| PRIME MOVER POWER RATING | 0.020 HORSEPOWER |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 13000.0 |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| PHASE | SINGLE |
| FREQUENCY IN HERTZ | 400.0 |
| AIR FLOW RATE | 50.000 CUBIC FEET PER MINUTE MAXIMUM |
| STATIC PRESSURE AT SPECIFIED AIR FLOW RATE | 0.0 INCHES OF WATER |
| ENVIRONMENTAL PROTECTION | DUSTPROOF |
| FLOW DIRECTION | INWARD |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 FLANGE AND 3 UNTHREADED HOLE |
| TEST DATA DOCUMENT | 35351-147087-01 DRAWING |
| MANUFACTURERS CODE | 04320 |
| DESIGN CONTROL REFERENCE | BC1303F-2 |
Restrictions/Controls & Freight Information | NSN 4140-00-497-2134
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061920 | FANS ELEC NOI IN BARREL/BOX/CRATE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 752 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
