NSN 4140-00-540-0854 WF95, 00-540-0854, 005400854
Product Details | CIRCULATING FAN
4140-00-540-0854 A nonpositive displacement mechanical device having an axial fan impeller with or without a protective enclosure. It is designed to circulate air under free-airflow conditions, and may be equipped with a baffle(s) to deflect the air radially. It may be suspended from the ceiling, attached to the wall, or stand on a horizontal surface.
Part Alternates: WF95, 4140-00-540-0854, 00-540-0854, 4140005400854, 005400854
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 01 JAN 1963 | 00-540-0854 | 30260 ( FAN, CIRCULATING ) |
Drawings & Photos | NSN 4140-00-540-0854
Cross Reference | NSN 4140-00-540-0854
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WF95 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4140-00-540-0854
Technical Data | NSN 4140-00-540-0854
| Characteristic | Specifications |
|---|---|

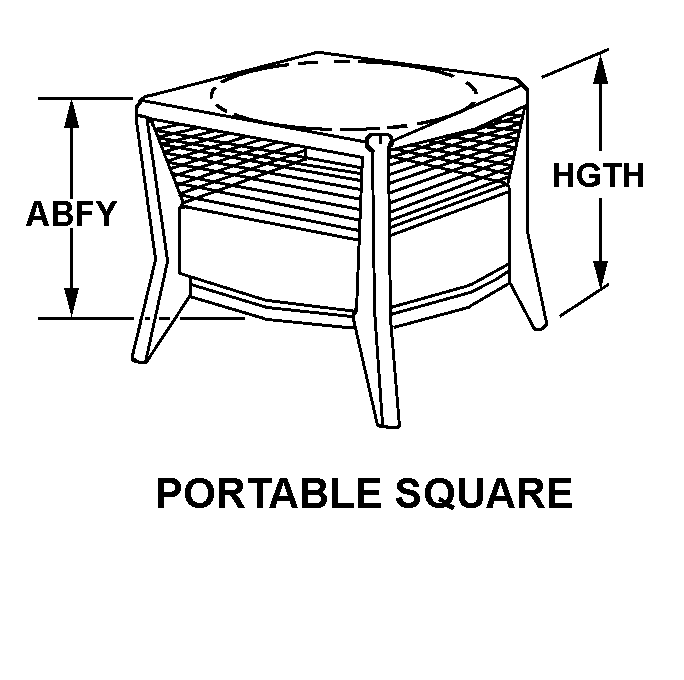

| STYLE DESIGNATOR | 41 PORTABLE SQUARE |
| DIAMETER | 12.000 INCHES NOMINAL |
| QUANTITY | 1 |
| MATERIAL | PLASTIC HOUSING |
| DRIVE TYPE | DIRECT |
| ROTATION DIRECTION FOR WHICH DESIGNED | CLOCKWISE |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| SPEED ADJUSTMENTS | THREE SPEED |
| INCLOSURE TYPE | PARTIALLY INCLOSED |
| PRIME MOVER POWER RATING | 0.181 HORSEPOWER |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| PHASE | SINGLE |
| FREQUENCY IN HERTZ | 60.0 |
| AIR FLOW RATE | 3600.000 CUBIC FEET PER MINUTE NOMINAL |
| STATIC PRESSURE AT SPECIFIED AIR FLOW RATE | 0.0 INCHES OF WATER |
| FLOW DIRECTION | OUTWARD |
| FEATURES PROVIDED | SAFETY IMPELLER GUARD |
| NONDEFINITIVE SPEC/STD DATA | 12 SIZE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | WF95 |
Restrictions/Controls & Freight Information | NSN 4140-00-540-0854
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
