NSN 4140-01-028-0349 B0028, B-0028, SU2A1
Product Details | TUBEAXIAL FAN
4140-01-028-0349 A nonpositive displacement mechanical device without guide vanes and having an axial fan impeller inclosed within a tubular housing. It is designed primarily for duct installation to move air or gas axially over a wide range of volumes at medium pressures.20316800000259000004140000000
Part Alternates: B0028, B-0028, SU2A1, 7904338-01, 8403676, 840367-6, 028064, 028267, 05218582, 052-1858-2, 10533901, 121A0961, 121A096-1, 126LF2182, 126LF-2182, 3603343, 3603-34-3, 4158-0020-IL ITEM 61, 4158-0020-IL/61, 41580020IL61, 41580020ILITEM61, 499-066-035, 5209355, 5209-355, 4140-01-028-0349, 01-028-0349, 4140010280349, 790433801, 499066035, 010280349
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 23 SEP 1976 | 01-028-0349 | 04244 ( FAN, TUBEAXIAL ) |

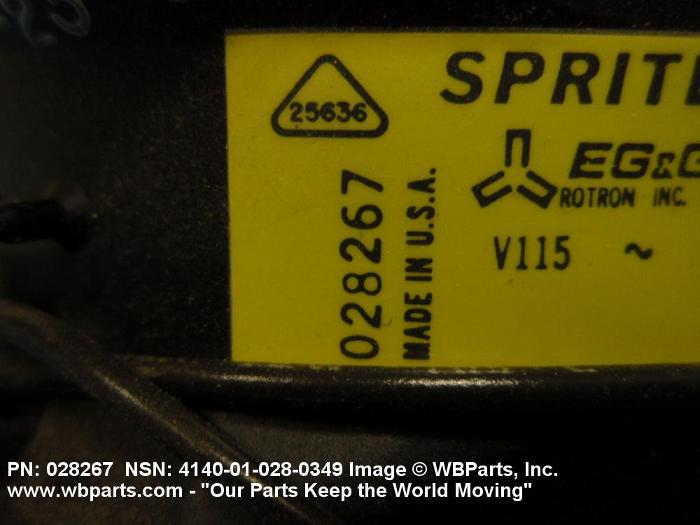

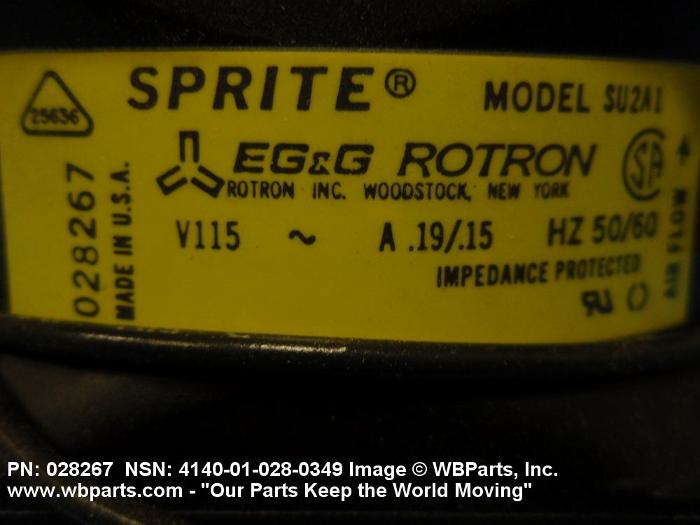

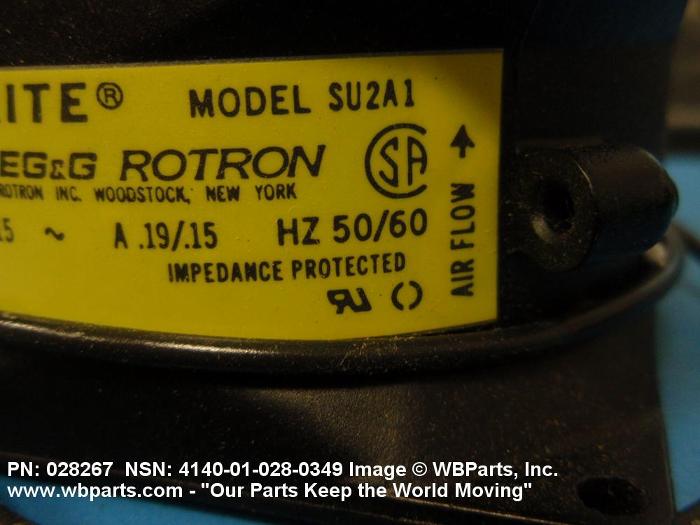

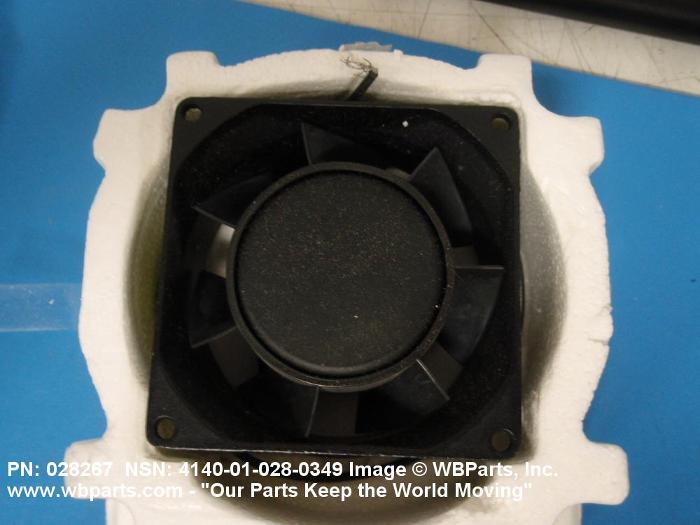

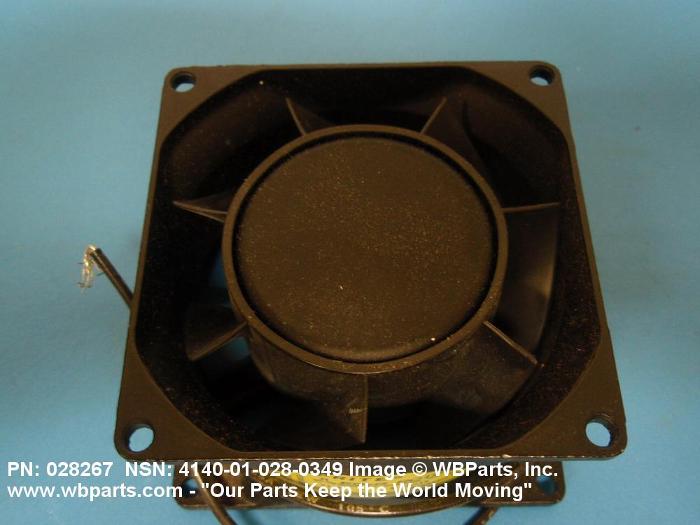

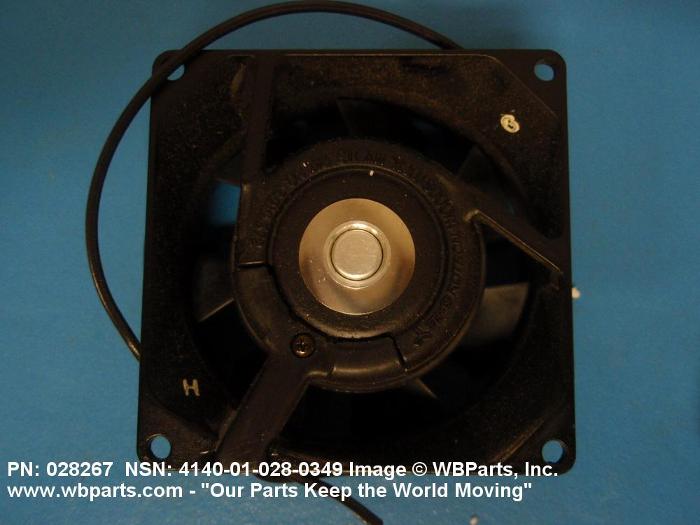

Drawings & Photos | NSN 4140-01-028-0349
Demand History | NSN 4140-01-028-0349
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4140-01-028-0349 | 2021-10-281 | 3 | United States |
| 4140-01-028-0349 | 2021-06-165 | 1 | United States |
| 4140-01-028-0349 | 2011-02-34 | 5 | Israel |
| 4140-01-028-0349 | 2010-10-288 | 102 | DIBBS |
Cross Reference | NSN 4140-01-028-0349
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 028064 | 32284 | ROTRON CONTROLS DIV ROTRON INC |
| 028064 | 82877 | ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK |
| 028267 | 5Y921 | COMAIR ROTRON INC SUB OF KL INDUSTRIES INC |
| 028267 | 82877 | ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK |
| 052-1858-2 | 19362 | DIT-MCO INTERNATIONAL CORPORATION |
| 10533901 | 20227 | HENLEY MARINE, INC |
| 121A096-1 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 126LF-2182 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 3603-34-3 | 13859 | KING NUTRONICS CORPORATION |
| 4158-0020-IL ITEM 61 | K1296 | STS DEFENCE LIMITED |
| 4158-0020-IL ITEM 61 | U5798 | MAGNUS POWER A DIVISION OF KVAERNER ILFIELD PRODUCTS LTD |
| 4158-0020-IL/61 | K1296 | STS DEFENCE LIMITED |
| 4158-0020-IL/61 | U5798 | MAGNUS POWER A DIVISION OF KVAERNER ILFIELD PRODUCTS LTD |
| 499-066-035 | 07421 | INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS |
| 5209-355 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 7904338-01 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 840367-6 | 00779 | TYCO ELECTRONICS CORPORATION |
| B-0028 | 14304 | HARRIS CORPORATION DBA HARRIS RF COMMUNICATION |
| SU2A1 | 54241 | MYERS POWER PRODUCTS, INC. DBA MYERS/ABACUS |
| SU2A1 | 5Y921 | COMAIR ROTRON INC SUB OF KL INDUSTRIES INC |
| SU2A1 | 82877 | ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4140-01-028-0349
Related Products | NSN 4140-01-028-0349
Technical Data | NSN 4140-01-028-0349
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 31 FIXED |
| LENGTH | 1.645 INCHES NOMINAL |
| HOUSING INSIDE DIAMETER | 2.955 INCHES NOMINAL |
| MATERIAL | PLASTIC POLYPROPYLENE BLADE ALUMINUM HOUSING |
| SURFACE TREATMENT | ENAMEL LUSTERLESS HOUSING |
| DRIVE TYPE | DIRECT |
| ROTATION DIRECTION FOR WHICH DESIGNED | CLOCKWISE |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| SPEED ADJUSTMENTS | SINGLE SPEED |
| PRIME MOVER DRIVE SHAFT BEARING TYPE | SLEEVE |
| INCLOSURE TYPE | FULLY INCLOSED |
| AMBIENT TEMP AT FULL RATED POWER | -28.0 DEG CELSIUS AND 70.0 DEG CELSIUS |
| ELECTRICAL CONNECTION TYPE | WIRE LEAD |
| PRIME MOVER POWER RATING | 0.014 HORSEPOWER |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 2750.0 AND 3250.0 |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| PHASE | SINGLE |
| FREQUENCY IN HERTZ | 50.0 AND 60.0 |
| AIR FLOW RATE | 37.0 CUBIC FEET PER MINUTE NOMINAL |
| STATIC PRESSURE AT SPECIFIED AIR FLOW RATE | 0.0 INCHES OF WATER |
| FLOW DIRECTION | OUTWARD |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 FLANGE AND 8 UNTHREADED HOLE |
| SPECIAL FEATURES | 3.12 IN. SQ FLANGE W/HOLE IN EA CORNER PROVIDED EA END OF VENTURI TUBE,CLASS A INSULATION MOTOR WINDINGS |
| MANUFACTURERS CODE | 5Y921 |
| DESIGN CONTROL REFERENCE | 028267 |
Restrictions/Controls & Freight Information | NSN 4140-01-028-0349
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061920 | FANS ELEC NOI IN BARREL/BOX/CRATE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
