Product Details | CENTRIFUGAL FAN
4140-01-080-8161 A nonpositive displacement mechanical device having a centrifugal fan impeller inclosed within a housing. It is designed to move air or gas over a wide range of volumes and pressures. The air or gas is drawn in axially and discharged radially or drawn in radially and discharged axially by centrifugal force through an outlet in the housing.20216600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment41400043Fans, Air Circulators, and Blower Equipment
Part Alternates: 60621211, 606212-1-1, 4140-01-080-8161, 01-080-8161, 4140010808161, 010808161
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 02 AUG 1979 | 01-080-8161 | 04254 ( FAN, CENTRIFUGAL ) |
Drawings & Photos | NSN 4140-01-080-8161
Demand History | NSN 4140-01-080-8161
Cross Reference | NSN 4140-01-080-8161
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 606212-1-1 | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4140-01-080-8161
4140-01-080-8268, 4140-01-081-1380, 4140-01-081-2624, 4140-01-081-3192, 4140-01-081-3288
Technical Data | NSN 4140-01-080-8161
| Characteristic | Specifications |
|---|---|

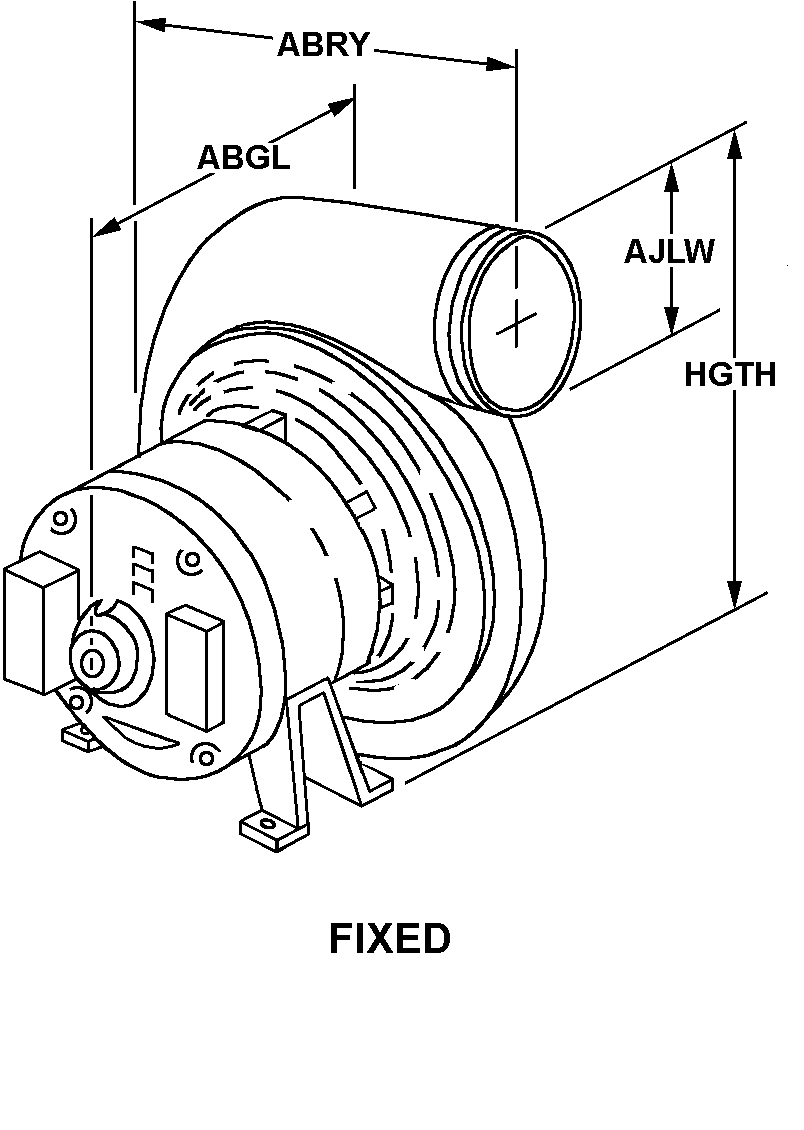

| STYLE DESIGNATOR | 51 FIXED |
| WIDTH | 6.720 INCHES MAXIMUM |
| LENGTH | 9.615 INCHES MINIMUM AND 9.685 INCHES MAXIMUM |
| OUTLET INSIDE DIAMETER | 2.500 INCHES NOMINAL |
| HEIGHT | 9.090 INCHES MINIMUM AND 9.150 INCHES MAXIMUM |
| QUANTITY | 1 |
| DRIVE TYPE | DIRECT |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| PHASE | THREE |
| STAGE QUANTITY | 1 |
| OUTLET LOCATION | BOTTOM |
| DISCHARGE DIRECTION | ANGULAR DOWN |
| III END ITEM IDENTIFICATION | F-16 AIRCRAFT |
| MANUFACTURERS CODE | 70210 |
| DESIGN CONTROL REFERENCE | 606212-1-1 |
Restrictions/Controls & Freight Information | NSN 4140-01-080-8161
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127265 | PROPELLERS WHLS/FANS ETC CENTRIFUGL |
| Less than car load rating | M | 85 |
| Less than truck load rating | G | 125.0 |
| Water commodity Code | 659 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
