NSN 4140-01-083-5872 76144 GR.1, 76144 GR-1, 76144GR1
Product Details | AXIAL FAN IMPELLER
4140-01-083-5872 An item with blades or vanes equally spaced radially around the periphery of a hub, flange, or rotor. It is the rotating part of an axial type fan, electric motor, generator, and the like which creates a flow of air or gas parallel to the axis of rotation.20229300045Engine Cooling System Components, Nonaircraft41400043Fans, Air Circulators, and Blower Equipment
Part Alternates: 76144 GR.1, 76144 GR-1, 76144GR1, 4140-01-083-5872, 01-083-5872, 4140010835872, 010835872
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 26-SEP-79 | 01-083-5872 | 10087 ( IMPELLER, FAN, AXIAL ) |
Drawings & Photos | NSN 4140-01-083-5872
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4140-01-083-5872
Technical Data | NSN 4140-01-083-5872
| Characteristic | Specifications |
|---|---|

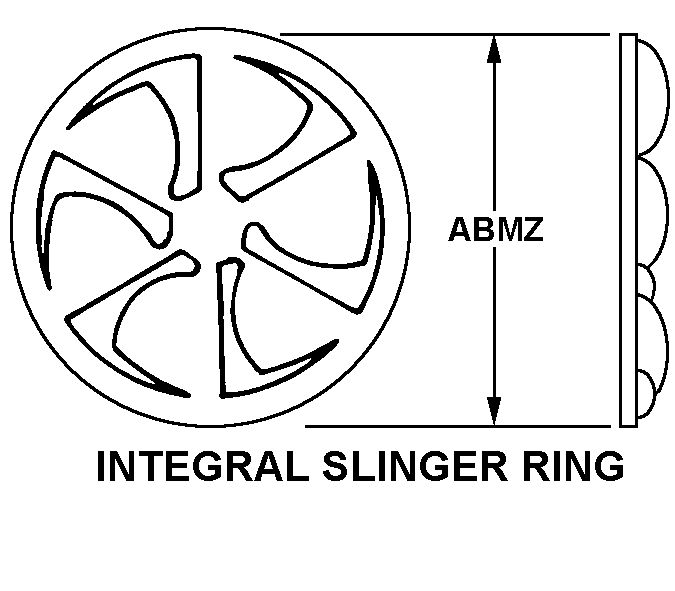

| STYLE DESIGNATOR | 6 INTEGRAL SLINGER RING |
| MATERIAL | ALUMINUM ALLOY OVERALL |
| ROTATION DIRECTION FOR WHICH DESIGNED | CLOCKWISE OR COUNTERCLOCKWISE |
| HUB LOCATION | CENTER |
| ATTACHMENT METHOD | KEYWAY |
| SPECIAL FEATURES | CW OR CCW ROTATION BYDESIGN |
| III END ITEM IDENTIFICATION | MOTOR,DC,GENERAL DYNAMICS/ELECTRO DYNAMICS DRAWING NO. 2500-7 |
| MANUFACTURERS CODE | 96169 |
| DESIGN CONTROL REFERENCE | 76144 GR-1 |
Restrictions/Controls & Freight Information | NSN 4140-01-083-5872
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
