NSN 4140-01-326-6945 TBT2206F7, 26140341, 2614034-1
Product Details | TUBEAXIAL FAN
4140-01-326-6945 A nonpositive displacement mechanical device without guide vanes and having an axial fan impeller inclosed within a tubular housing. It is designed primarily for duct installation to move air or gas axially over a wide range of volumes at medium pressures.20316800000259000004140000000
Part Alternates: TBT2206F7, 26140341, 2614034-1, 4140-01-326-6945, 01-326-6945, 4140013266945, 013266945
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 01-326-6945 | 04244 ( FAN, TUBEAXIAL ) |

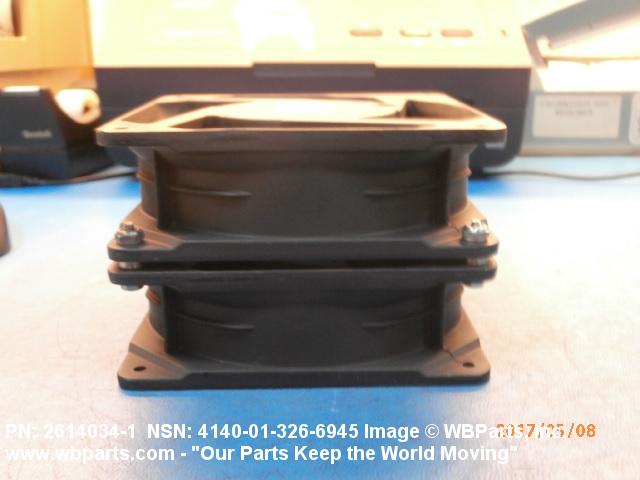

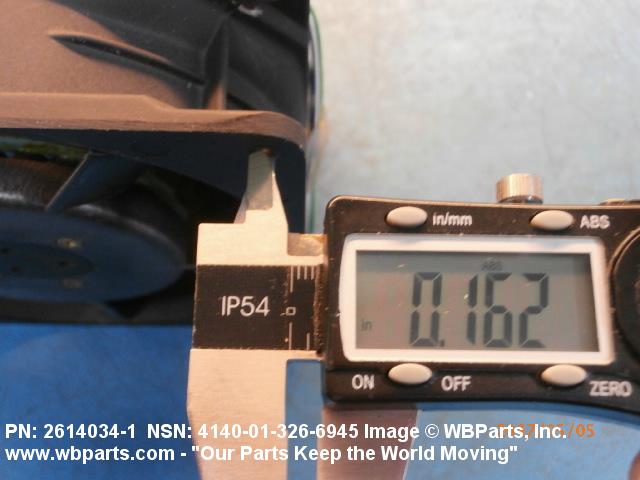

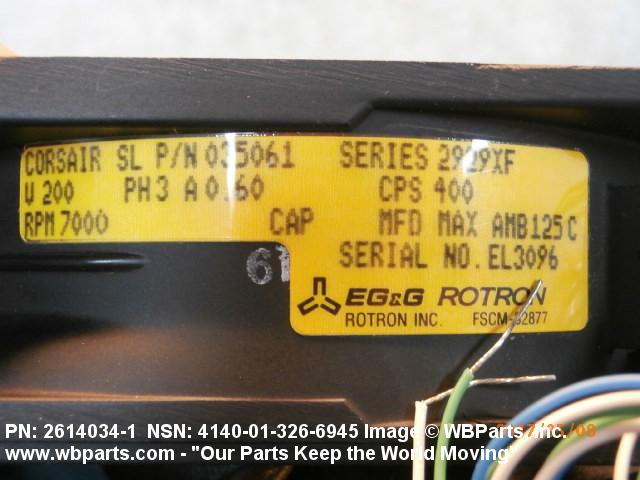

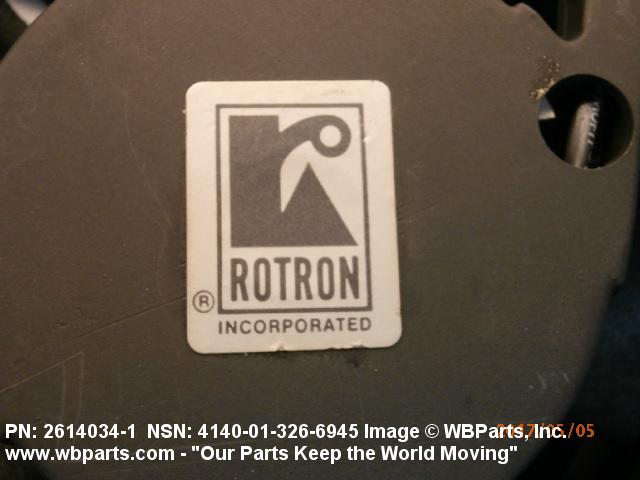

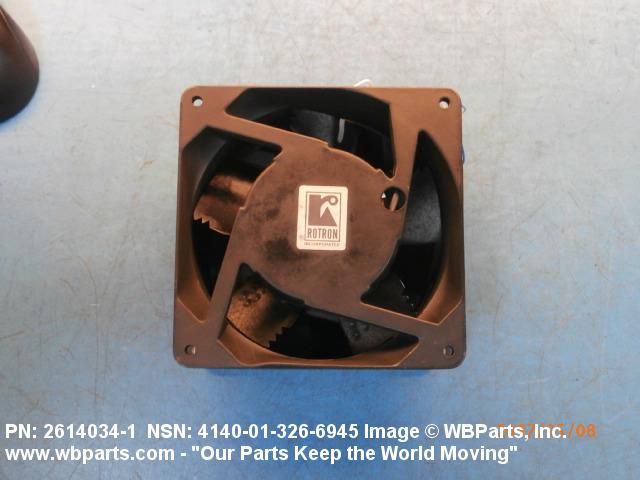

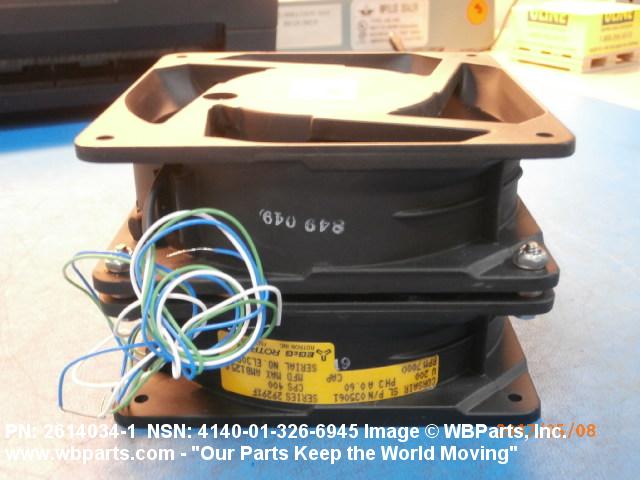

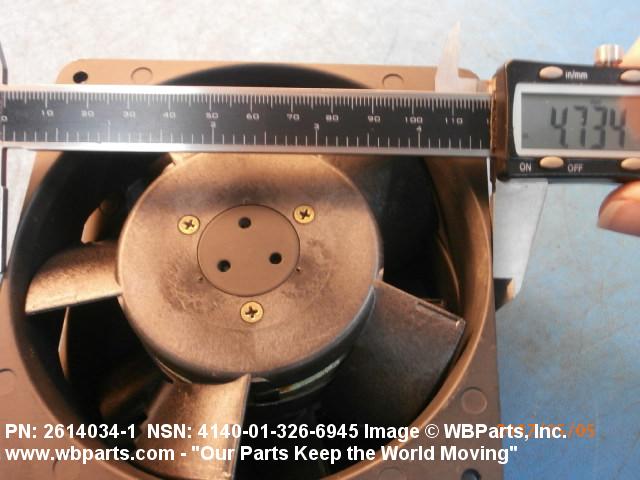

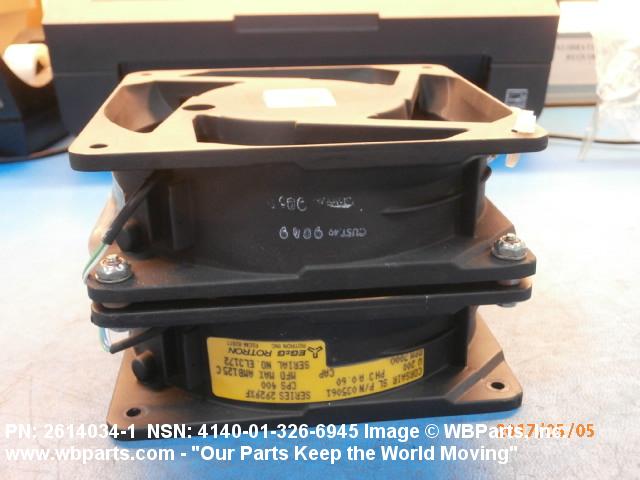

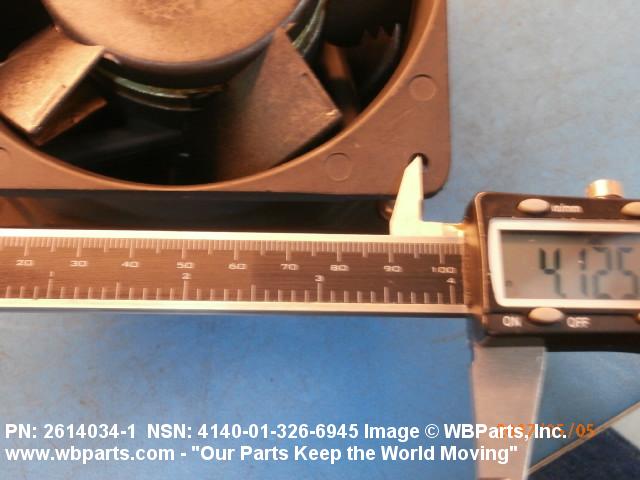

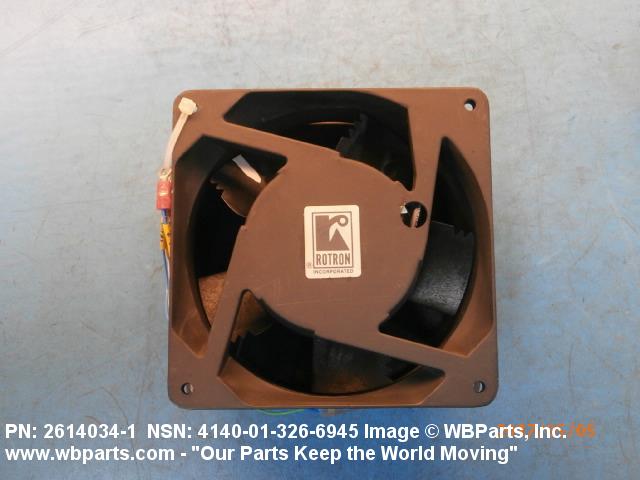

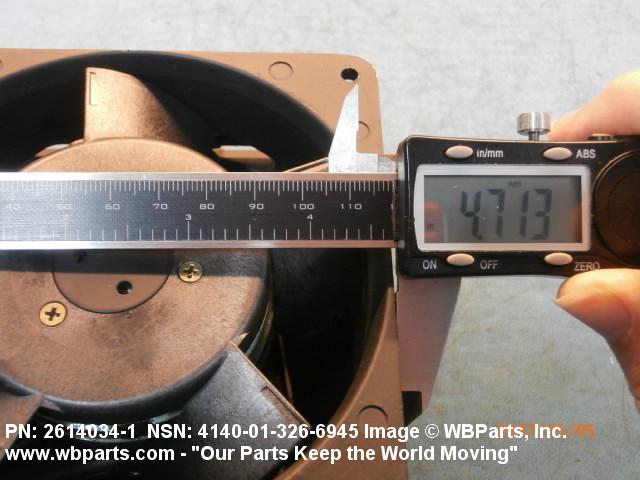

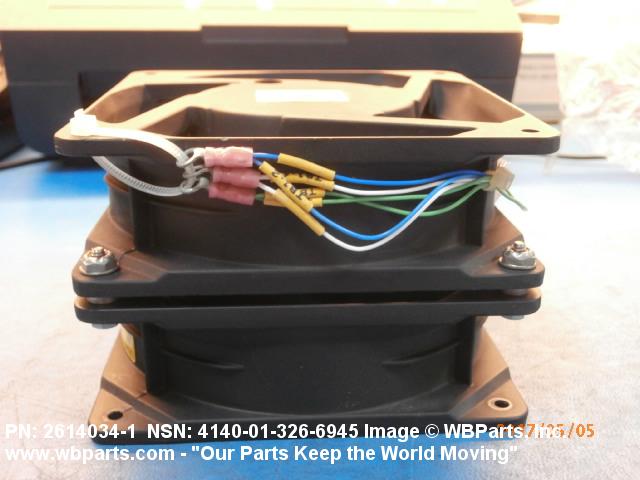

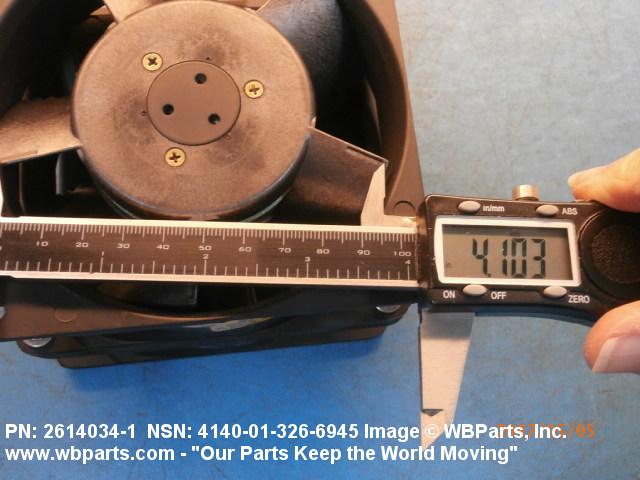

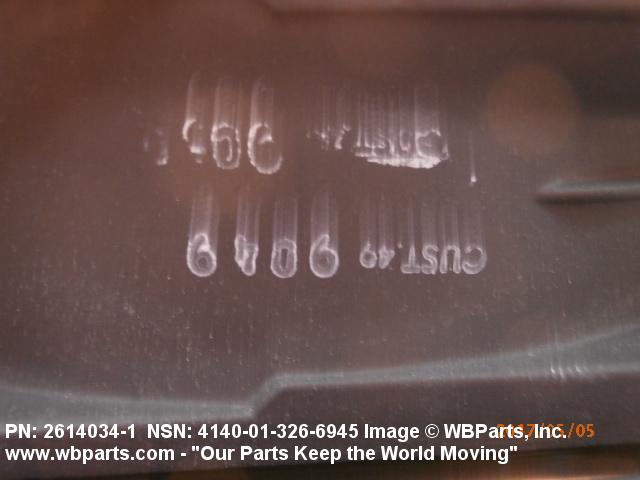

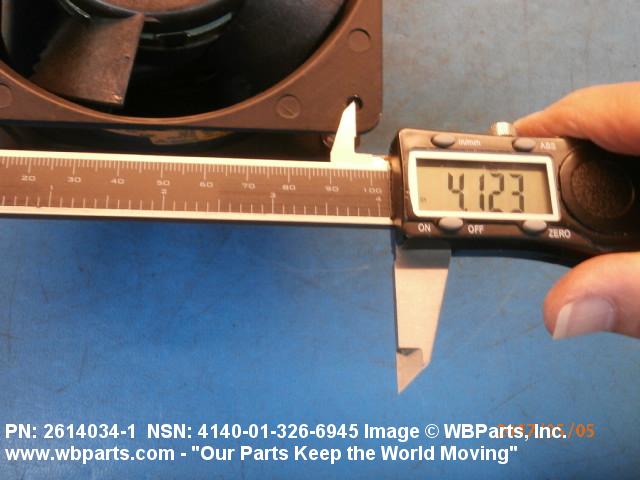

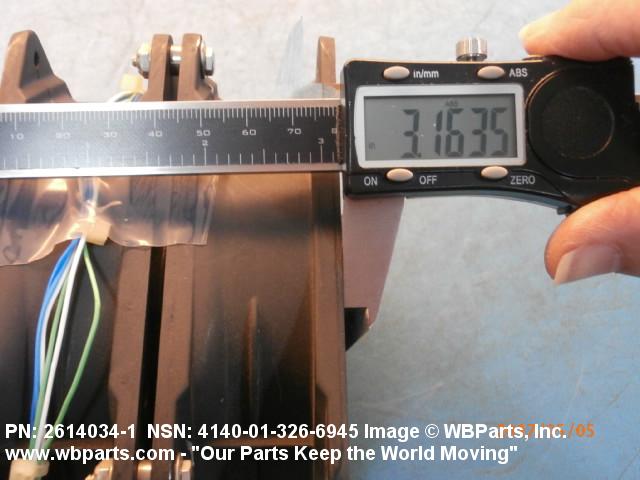

Drawings & Photos | NSN 4140-01-326-6945
Demand History | NSN 4140-01-326-6945
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4140-01-326-6945 | 2017-01-27 | 6 | United States |
| 4140-01-326-6945 | 2010-08-242 | 2 | DIBBS |
| 4140-01-326-6945 | 2010-03-77 | 2 | DIBBS |
| 4140-01-326-6945 | 2010-02-55 | 1 | DIBBS |
| 4140-01-326-6945 | 2010-02-55 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4140-01-326-6945
Technical Data | NSN 4140-01-326-6945
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 45 FIXED |
| WIDTH | 4.690 INCHES NOMINAL |
| LENGTH | 3.000 INCHES NOMINAL |
| HEIGHT | 4.690 INCHES NOMINAL |
| HOUSING INSIDE DIAMETER | 4.125 INCHES NOMINAL |
| MATERIAL | PLASTIC BLADE ALUMINUM HOUSING |
| DRIVE TYPE | DIRECT |
| ROTATION DIRECTION FOR WHICH DESIGNED | CLOCKWISE |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| SPEED ADJUSTMENTS | SINGLE SPEED |
| PRIME MOVER DRIVE SHAFT BEARING TYPE | BALL |
| INCLOSURE TYPE | FULLY INCLOSED |
| AMBIENT TEMP AT FULL RATED POWER | -40.0 DEG CELSIUS AND 71.0 DEG CELSIUS |
| ELECTRICAL CONNECTION TYPE | WIRE LEAD |
| PRIME MOVER POWER RATING | 127.0 WATTS |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 7000.0 |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 200.0 AC |
| PHASE | THREE |
| FREQUENCY IN HERTZ | 400.0 |
| AIR FLOW RATE | 260.0 CUBIC FEET PER MINUTE NOMINAL |
| STATIC PRESSURE AT SPECIFIED AIR FLOW RATE | 0.0 INCHES OF WATER |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT |
| FLOW DIRECTION | INWARD |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 FLANGE AND 8 UNTHREADED HOLE |
| MANUFACTURERS CODE | 04320 |
| DESIGN CONTROL REFERENCE | TBT2206F7 |
Restrictions/Controls & Freight Information | NSN 4140-01-326-6945
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
