NSN 4140-01-358-7865 16AEH00, 16AE-H00, 01-358-7865
Product Details | CENTRIFUGAL FAN HOUSING
4140-01-358-7865 The outer casing of a centrifugal fan designed to inclose an impeller. It is usually of one piece construction containing inlet(s) and outlets.
Part Alternates: 16AEH00, 16AE-H00, 4140-01-358-7865, 01-358-7865, 4140013587865, 013587865
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 21 MAY 1992 | 01-358-7865 | 61534 ( HOUSING, CENTRIFUGAL FAN ) |

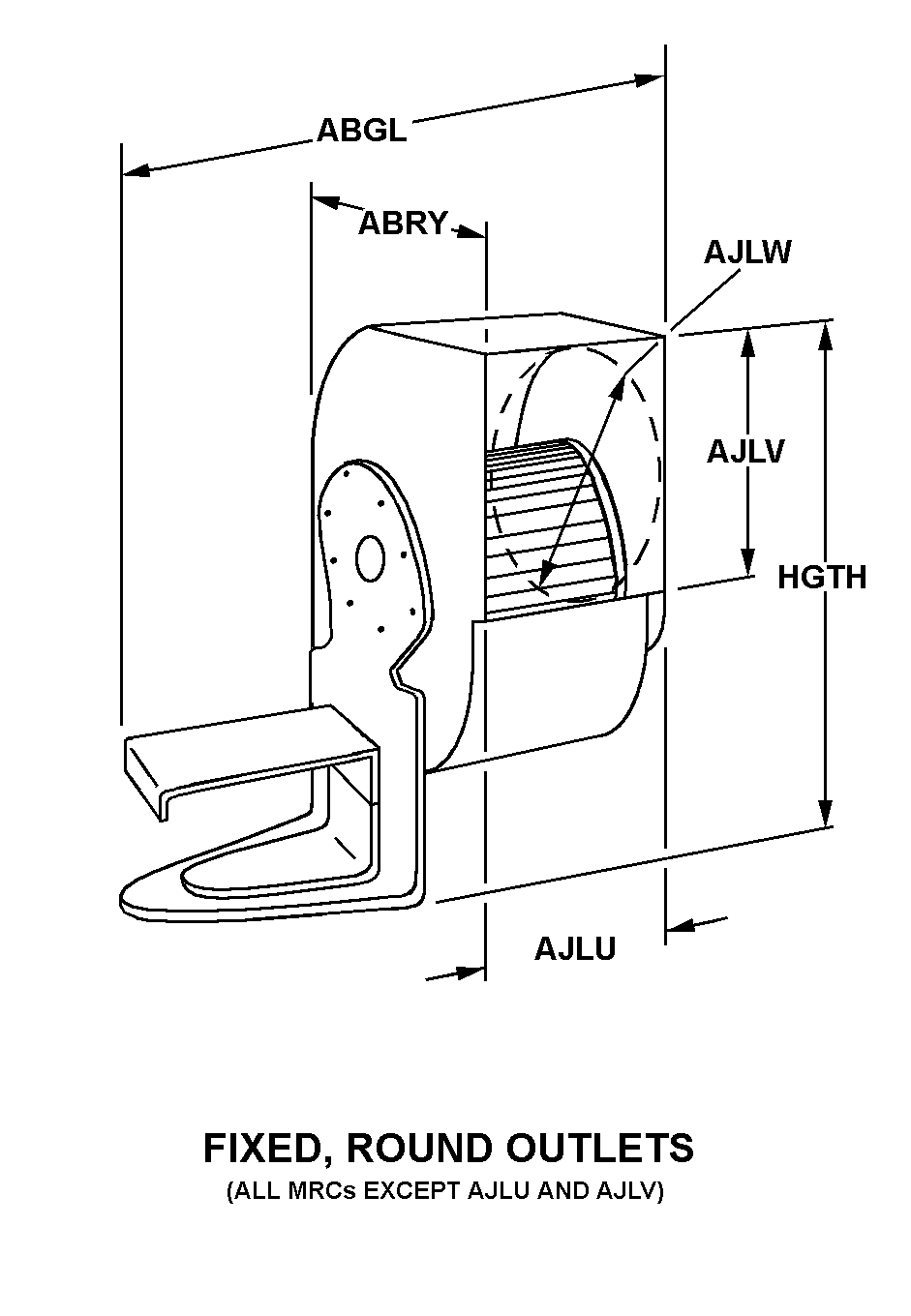

Drawings & Photos | NSN 4140-01-358-7865
Cross Reference | NSN 4140-01-358-7865
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16AE-H00 | 93457 | SUPER VACUUM MANUFACTURING CO., INC. DBA SVI TRUCKS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4140-01-358-7865
Technical Data | NSN 4140-01-358-7865
| Characteristic | Specifications |
|---|---|
| HOUSING STYLE | 60A FIXED, ROUND OUTLETS |
| WIDTH | 18.750 INCHES NOMINAL |
| LENGTH | 13.000 INCHES NOMINAL |
| OUTLET INSIDE DIAMETER | 16.000 INCHES NOMINAL |
| HEIGHT | 18.750 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 3003 HOUSING |
| PRIME MOVER FOR WHICH DESIGNED | ELECTRIC MOTOR |
Restrictions/Controls & Freight Information | NSN 4140-01-358-7865
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 053025 | COOLERS,ICEBOXES,REFRIGERATORS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4140-01-358-7865
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
