Product Details | VENTILATING FAN

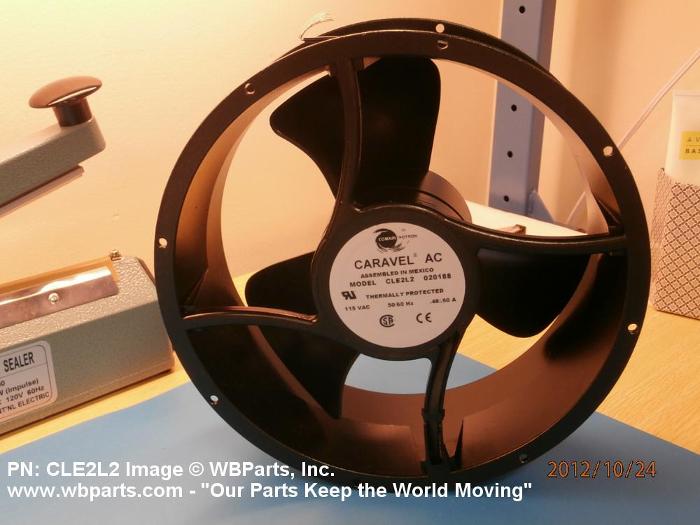

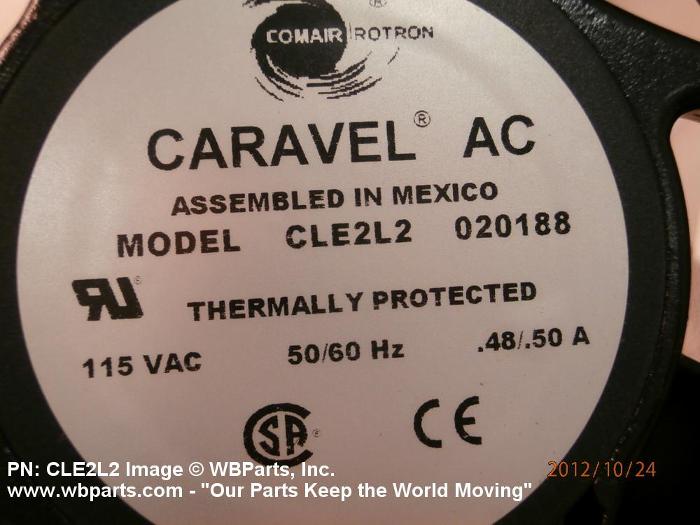

4140-01-600-2904 A nonpositive displacement mechanical device having either an axial or centrifugal fan impeller. It is designed to move free air or gas from indoors to outdoors or vice versa over a wide range of volumes at low pressures. It is supported by a ring, plate, or shroud or may be inclosed in a housing. It is designed for installation in a window, roof or wall opening, or the like.
Part Alternates: CLE2L2, 12441919, 4140-01-600-2904, 01-600-2904, 4140016002904, 016002904
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 21 NOV 2011 | 01-600-2904 | 04262 ( FAN, VENTILATING ) |
Drawings & Photos | NSN 4140-01-600-2904
Demand History | NSN 4140-01-600-2904
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4140-01-600-2904
Related Products | NSN 4140-01-600-2904
4140-01-601-1901, 4140-01-601-7555, 4140-01-601-8618, 4140-01-602-9979, 1560-01-605-9775
Technical Data | NSN 4140-01-600-2904
| Characteristic | Specifications |
|---|---|
| ELECTRICAL CONNECTION TYPE | CONNECTOR PLUG |
| END ITEM IDENTIFICATION | 2320-01-530-3843 TRUCK,CARGO,M1087A1,FMTV,5 TON |
| FREQUENCY IN HERTZ | 60.0 |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| STATIC PRESSURE AT SPECIFIED AIR FLOW RATE | 0.331 INCHES OF WATER |
| OVERALL DEPTH | 3.500 INCHES NOMINAL |
| PRIME MOVER POWER RATING | 61.0 WATTS |
| INCLOSURE TYPE | OPEN |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| FLOW DIRECTION | OUTWARD |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 1650.0 |
| DRIVE TYPE | DIRECT |
| ROTATION DIRECTION FOR WHICH DESIGNED | COUNTERCLOCKWISE |
| LENGTH | 3.500 INCHES NOMINAL |
| HOUSING INSIDE DIAMETER | 10.000 INCHES NOMINAL |
| PHASE | SINGLE |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | FAN,AXIAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 FLANGE |
| STYLE DESIGNATOR | FIXED |
| AIR FLOW RATE | 525.0 CUBIC FEET PER MINUTE NOMINAL |
Restrictions/Controls & Freight Information | NSN 4140-01-600-2904
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061900 | FANS ELEC EXHAUST/VENTILATING |
| Less than car load rating | ||
| Less than truck load rating | K | 92.5 |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4140-01-600-2904
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
