NSN 4210-01-388-9047 A/S32P-21, AA58005, A-A-58005
Product Details | FIRE FIGHTING TRUCK
4210-01-388-9047 Fire fighting equipment mounted on a self-propelled chassis, and equipped to employ various types of fire extinguishing agents to combat and/or extinguish fires.
Part Alternates: A/S32P-21, AA58005, A-A-58005, AS32P21, P21, 4210-01-388-9047, 01-388-9047, 4210013889047, 013889047
Fire Fighting, Rescue, and Safety Equipment; and Environmental Protection Equipment and Materials | Fire Fighting Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | 12 APR 1994 | 01-388-9047 | 03254 ( TRUCK, FIRE FIGHTING ) |
Drawings & Photos | NSN 4210-01-388-9047
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4210-01-388-9047
Related Products | NSN 4210-01-388-9047
Technical Data | NSN 4210-01-388-9047
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | PUMPER AND RESCUE |
| EXTINGUISHING AGENT FOR WHICH DESIGNED | WATER |
| WATER TANK QUANTITY | 1 |
| AERIAL LADDER | INCLUDED |

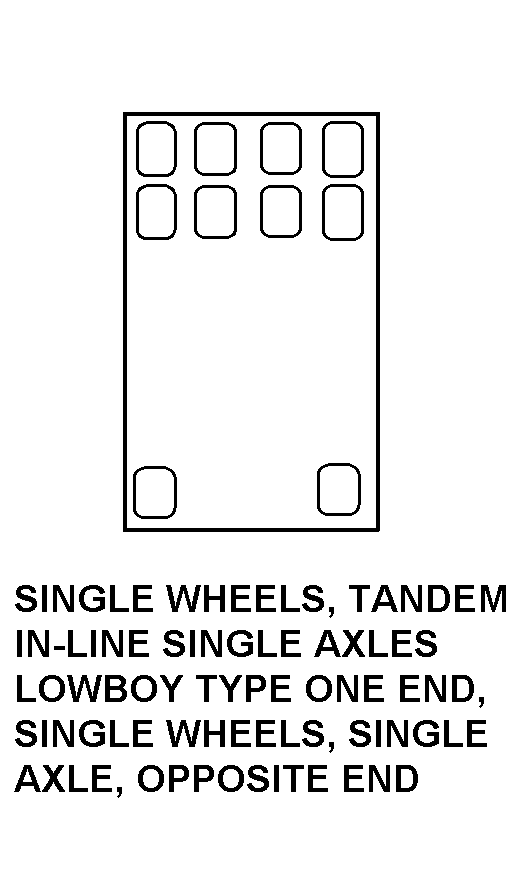

| WHEEL ARRANGEMENT STYLE | 34 SINGLE WHEELS, TANDEM IN-LINE SINGLE AXLES LOWBOY TYPE ONE END, SINGLE WHEELS, SINGLE AXLE, OPPOSITE END |
| FRONT WHEEL DRIVE FEATURE | NOT INCLUDED |
| CHASSIS SIZE DESIGNATION | ANY ACCEPTABLE |
| WHEELBASE SIZE | 248.000 INCHES |
| PRIME MOVER TYPE | DIESEL ENGINE |
| MULTIFUEL USAGE FEATURE | NOT PROVIDED |
| PRIME MOVER QUANTITY | 1 |
| CYLINDER QUANTITY | 8 |
| BRAKE POWER RATING | 450.0000 HORSEPOWER |
| BRAKE POWER RATING SPECIFIED RPM | 2100 |
| ENGINE MANUFACTURER NAME | DETROIT DIESEL |
| ENGINE MODEL NUMBER | 8V92TA |
| TRANSMISSION TYPE | AUTOMATIC |
| SPEED RANGE QUANTITY | 1 |
| FORWARD SPEED QUANTITY PER RANGE | 4 |
| REVERSE SPEED QUANTITY | 1 |
| OVERDRIVE | NOT INCLUDED |
| WINCH | NOT INCLUDED |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| SPECIAL FEATURES | GROVER AIR HORN CODE 3-NO3692 V-CON SIREN;100 WATT SIREN SPEAKER;WHELEN21" STROBE LIGHTBARS;HALE OSMG 1250 SINGLE STAGE PUMP;HOSE CHUTE ACCESS DOORS;"A" FRAME LADDER ON REAR OF BODY;TWOHANNAY ELECTRIC CORD REELS W/200FT OF 12/3 CABLE, TWO 500 WATT QUARTZ LIGHTSMOUNTED ON PLATFORM |
| III SUPPLEMENTARY FEATURES | 102 FT AERIALCAT PLATFORM-KME LOWPROFILE AERIAL CUSTOM CHASSIS;SEATING FOR 6 FIREFIGHTERS; 5 SCBA SEATS; AIR CONDITIONED CAB;21,480 LB CAP FRONT AXLE, 52,000 LB CAP REAR TANDEM AXLE;ALLISON HT-740P AUTOMATIC TRANSMISSION W/OUT-PUT RETARDER;100GAL FUEL TANK;HALETPM RELIEF VALVE SYSTEM;ALUMINUM HOSE BED-CAP 1000' OF 5" HOSE;6000 WATT T&JDIESEL GENERATOR;CHALMERS RUBBER BLOCKREAR SUSPENSION;AUTOMATIC BRAKE SLACK ADJUSTER;SEVEN PLACE BREAKER PANEL |
| MANUFACTURERS CODE | 0H4A9 |
| DESIGN CONTROL REFERENCE | P21 |
Restrictions/Controls & Freight Information | NSN 4210-01-388-9047
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 738 | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 4210-01-388-9047
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | V | 8257X3080:Vehicular Equip (REMS) Vehicle Items and centrally funded, procured, and managed replenishment spares (ERRC XD-1, XD-2) |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
