Product Details | BREATHER
4310-00-052-8832 A mechanical device designed to permit a free flow of air into and out of an enclosure, usually used on engine crankcase, vehicular differentials and transmissions, pumps, compressors, and the like. See also CAP, VENT, FUEL STORAGE TANK. excludes VENTALATOR (as modified).20716150056Helicopter Rotor Blades, Drive Mechanisms and Components25200039Vehicular Power Transmission Components28050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components30400042Miscellaneous Power Transmission Equipment43100028Compressors and Vacuum Pumps
Part Alternates: BS030212510, BS0302125-10, GJ0HS, GL0HS1 1-4, GL0HS114, HSGJ, 810-603-000, 0L8052REVA8PC114, 0L8052REVA8PC1-14, 111450, 111-450, 13211E3254, 4310-00-052-8832, 00-052-8832, 4310000528832, 000528832, 810603000
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1963 | 00-052-8832 | 11034 ( BREATHER ) |
Drawings & Photos | NSN 4310-00-052-8832
Demand History | NSN 4310-00-052-8832
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 810-603-000 | 2023-06-29 | 57 | DIBBS |
| 4310-00-052-8832 | 2017-01-02 | 97 | DIBBS |
| 4310-00-052-8832 | 2013-03-26 | 1 | United States |
| 4310-00-052-8832 | 2013-02-02 | 84 | DIBBS |
| 4310-00-052-8832 | 2012-12-03 | 28 | DIBBS |
| 4310-00-052-8832 | 2012-11-29 | 20 | DIBBS |
| 4310-00-052-8832 | 2012-05-30 | 102 | DIBBS |
| 4310-00-052-8832 | 2012-05-14 | 0 | DIBBS |
Cross Reference | NSN 4310-00-052-8832
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0L8052REVA8PC1-14 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| 111-450 | 27235 | HARDIE-TYNES CO., INC. |
| 13211E3254 | 97403 | CECOM LR CENTER |
| 810-603-000 | 51729 | DRESSER, INC. DBA DRESSER ROOTS BLOWERS & |
| 810603000 | 0DFD9 | DRESSER-RAND COMPANY DBA DRESSER RAND |
| BS0302125-10 | 1CY93 | LARNAN FILTEN CORP DBA ADVANCED PRODUCTS CORP |
| GJ0HS | 00736 | FALLS FILTRATION TECHNOLOGIES, INC. |
| GJ0HS | 27235 | HARDIE-TYNES CO., INC. |
| GL0HS1 1-4 | 00736 | FALLS FILTRATION TECHNOLOGIES, INC. |
| HSGJ | 00736 | FALLS FILTRATION TECHNOLOGIES, INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4310-00-052-8832
Related Products | NSN 4310-00-052-8832
4310-00-052-8833, 4310-00-053-6999, 4310-00-053-7016, 4310-00-053-7021, 4310-00-053-7022
Technical Data | NSN 4310-00-052-8832
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL |
| CONNECTION TYPE | THREADED |

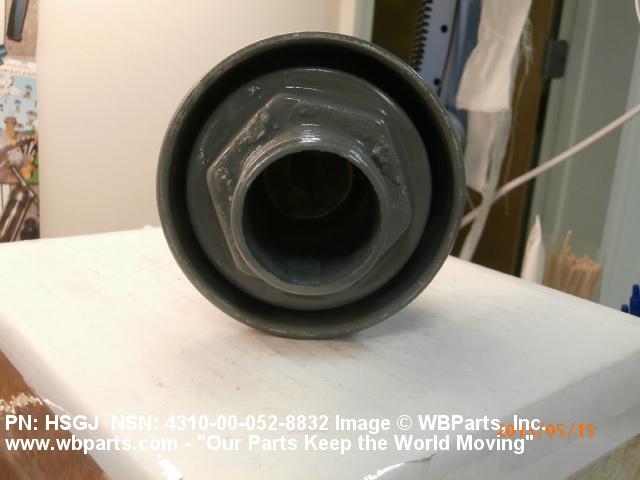

| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1 1/4-11-1/2 NPT |

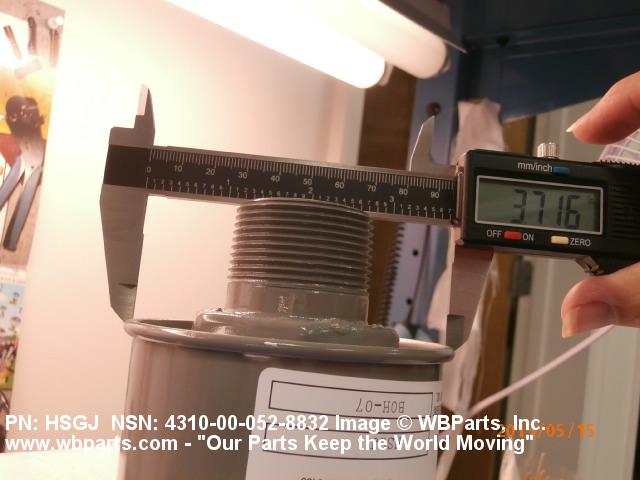

| OUTSIDE DIAMETER | 3.812 INCHES NOMINAL |

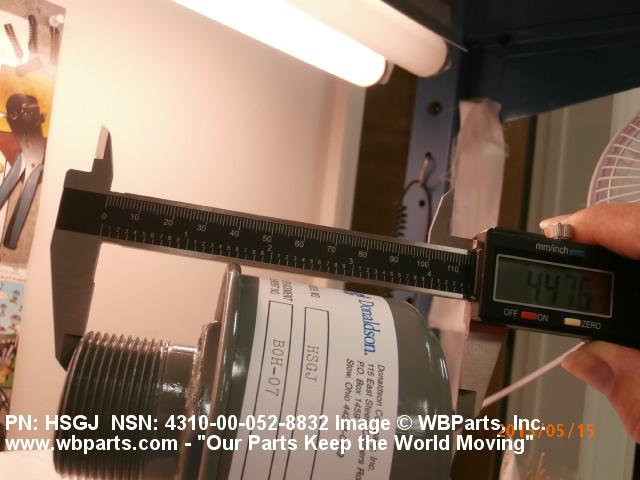

| OVERALL LENGTH | 4.500 INCHES NOMINAL |
| SPECIAL FEATURES | STEEL CRIMP PACK TYPE; REPLACEABLE FILTER; DISTANCE FM BOTTOM TO C 1.625 IN.; W/CAP AND WING NUT |
Restrictions/Controls & Freight Information | NSN 4310-00-052-8832
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 125850 | MUFFLER/EXHAUST SYS/PIPE/ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4310-00-052-8832
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 0 | Non-combat Essential End Item. End items that do not fit the definition of Code 1 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | O | Reparable item. When uneconomically reparable, condemn and dispose of at organization level. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
