NSN 4310-00-097-0950 16638643, 166386-43, 166386PC43
Product Details | PISTON PIN
4310-00-097-0950 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.20528050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps
Part Alternates: 16638643, 166386-43, 166386PC43, 166404PC43, 166406PC43, 166412PC43, 184649PC43, 184650PC43, 184651PC43, 184662PC43, 186322PC43, 186323PC43, 186324PC43, 186335PC43, 186775PC43, 186776PC43, 186777PC43, 186789PC43, 186942PC43, 186943PC43, 186944PC43, 186956PC43, 187448PC43, 187449PC43, 187462PC43, 187786PC43, 187787PC43, 187802PC43, 187953PC43, 187954PC43, 188500PC43, 188516PC43, 188522PC43, 188540PC43, 188542PC43, 188558PC43, 1R3000B43, 4310-00-097-0950, 00-097-0950, 4310000970950, 000970950
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1963 | 00-097-0950 | 16414 ( PIN, PISTON ) |
Drawings & Photos | NSN 4310-00-097-0950
Cross Reference | NSN 4310-00-097-0950
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 166386-43 | 0AT62 | DRESSER-RAND COMPANY DBA RECIPROCATING PRODUCTS DIV |
| 166386-43 | 30760 | INGERSOLL RAND CO |
| 166386-43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 166386PC43 | 30760 | INGERSOLL RAND CO |
| 166386PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 166404PC43 | 30760 | INGERSOLL RAND CO |
| 166404PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 166406PC43 | 30760 | INGERSOLL RAND CO |
| 166406PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 166412PC43 | 30760 | INGERSOLL RAND CO |
| 166412PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 184649PC43 | 30760 | INGERSOLL RAND CO |
| 184649PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 184650PC43 | 30760 | INGERSOLL RAND CO |
| 184650PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 184651PC43 | 30760 | INGERSOLL RAND CO |
| 184651PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 184662PC43 | 30760 | INGERSOLL RAND CO |
| 184662PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 186322PC43 | 30760 | INGERSOLL RAND CO |
| 186322PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 186323PC43 | 30760 | INGERSOLL RAND CO |
| 186323PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 186324PC43 | 30760 | INGERSOLL RAND CO |
| 186324PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 186335PC43 | 30760 | INGERSOLL RAND CO |
| 186335PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 186775PC43 | 30760 | INGERSOLL RAND CO |
| 186775PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 186776PC43 | 30760 | INGERSOLL RAND CO |
| 186776PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 186777PC43 | 30760 | INGERSOLL RAND CO |
| 186777PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 186789PC43 | 30760 | INGERSOLL RAND CO |
| 186789PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 186942PC43 | 30760 | INGERSOLL RAND CO |
| 186942PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 186943PC43 | 30760 | INGERSOLL RAND CO |
| 186943PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 186944PC43 | 30760 | INGERSOLL RAND CO |
| 186944PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 186956PC43 | 30760 | INGERSOLL RAND CO |
| 186956PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 187448PC43 | 30760 | INGERSOLL RAND CO |
| 187448PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 187449PC43 | 30760 | INGERSOLL RAND CO |
| 187449PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 187462PC43 | 30760 | INGERSOLL RAND CO |
| 187462PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 187786PC43 | 30760 | INGERSOLL RAND CO |
| 187786PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 187787PC43 | 30760 | INGERSOLL RAND CO |
| 187787PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 187802PC43 | 30760 | INGERSOLL RAND CO |
| 187802PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 187953PC43 | 30760 | INGERSOLL RAND CO |
| 187953PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 187954PC43 | 30760 | INGERSOLL RAND CO |
| 187954PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 188500PC43 | 30760 | INGERSOLL RAND CO |
| 188500PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 188516PC43 | 30760 | INGERSOLL RAND CO |
| 188516PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 188522PC43 | 30760 | INGERSOLL RAND CO |
| 188522PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 188540PC43 | 30760 | INGERSOLL RAND CO |
| 188540PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 188542PC43 | 30760 | INGERSOLL RAND CO |
| 188542PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 188558PC43 | 30760 | INGERSOLL RAND CO |
| 188558PC43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
| 1R3000B43 | 30760 | INGERSOLL RAND CO |
| 1R3000B43 | 88663 | DRESSER-RAND CO INGERSOLL-RAND OPNS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4310-00-097-0950
Technical Data | NSN 4310-00-097-0950
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |

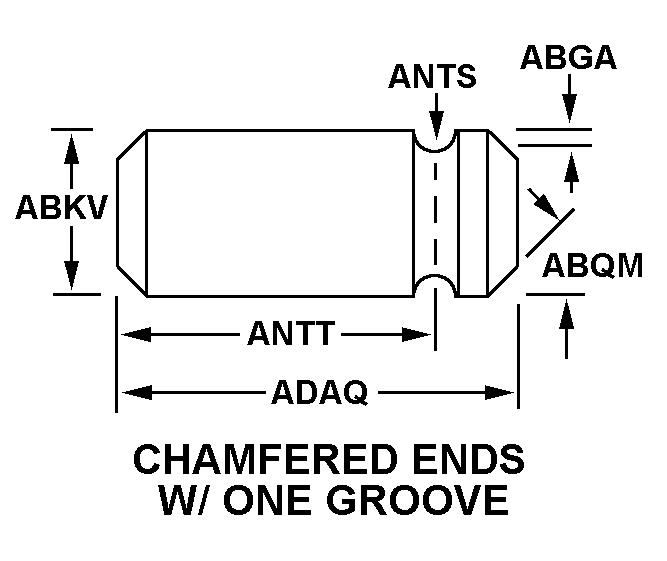

| BODY STYLE | 9 CHAMFERED ENDS W/ONE GROOVE |
| GROOVE DEPTH | 0.0312 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.00000 INCHES NOMINAL |
| BODY LENGTH | 3.8750 INCHES NOMINAL |
| RADIAL GROOVE RADIUS | 0.094 INCHES NOMINAL |
| DISTANCE FROM END TO GROOVE CENTER | 3.1400 INCHES NOMINAL |
| END CHAMFER ANGLE IN DEG | 45.0 |
Restrictions/Controls & Freight Information | NSN 4310-00-097-0950
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4310-00-097-0950
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
